Vacuum pneumatic conveying for infant nutrition

Ensure efficient handling of delicate powders with a versatile vacuum pneumatic conveying system, perfect for safeguarding product integrity from unloading to final packaging.

Conveys and Transfers Bulk Materials Safely

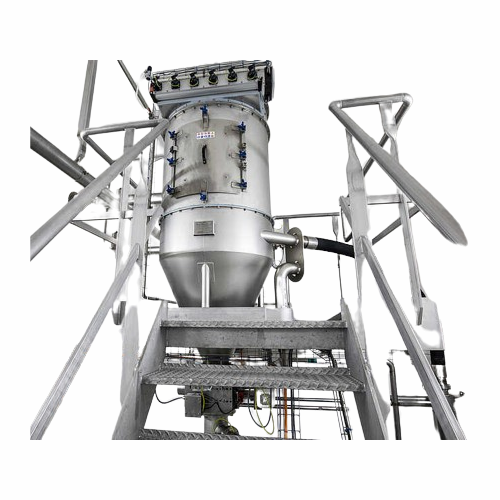

Gericke’s Vacuum Pneumatic Conveying System is engineered to enhance material handling efficiency across various industries, including food, pharmaceutical, and chemical sectors. This system leverages a venturi ejector or electric vacuum pump to ensure dust-free conveying, ideal for both explosive and non-explosive environments. Its modular design allows seamless integration with existing processes, supporting both batch and continuous operations.

Capable of transferring a diverse range of materials such as powders, granules, and small components, it efficiently manages production challenges like unloading, refilling, and filtering. With a throughput of up to 8 m³/h and conveying distances reaching 40 meters, it meets the demanding needs of industrial operations. Constructed from premium stainless steel, it offers enhanced corrosion resistance and abides by stringent hygiene standards, making it suitable for food and pharmaceutical applications.

The system includes features such as automatic filter cleaning during discharge cycles and ATEX certification for safe operation in hazardous environments. Customizable engineering support is available to adapt to specific material flow properties or abrasive characteristics, ensuring a tailored solution for your production line.

Benefits

  • Enhances production efficiency by ensuring dust-free material handling, reducing contamination risks.
  • Easily integrates into existing systems, supporting both manual and automated operations for flexible adaptation.
  • Minimizes energy usage with efficient vacuum generation, leading to cost savings on operational expenses.
  • Meets industry hygiene standards, safeguarding product integrity in food and pharmaceutical applications.
  • Customizable configurations support specific material handling needs, optimizing system performance for diverse applications.

General


Applications
Vitamins,Steel,Bakery,Animal and aqua feed,Water treatment,Flue gas treatment,Lime and gypsum,Minerals,Plastics and coatings,Catalysts,Battery production,Dairy,Animal food,Food,Chemicals,Fine chemicals,Energy,Noodles and rice,Glass,Beverages and coffee,Crop protection and fertilizers,Biscuit and snacks,Cereals and cereal bars,Textured vegetable proteins,Salt and seasoning,Infant nutrition,Pet food,Paint and dyes,Pet,Flavours and fragrances,Beverages,Detergents and soaps,Chocolate and confectionary,Environmental,Heavy industry,Construction chemicals,Superabsorbents,Cement and fly ash,Flour,Pharmaceutical
End products
Glass beads,Rice cakes,Infant formula,Catalytic converters,Chemical fertilizers,Aqua feed pellets,Acrylic paints,Detergent powder,Granola bars,Pet kibble,Portland cement,Protein isolates,Fragrance oils,Instant coffee,Cornflakes,Gypsum boards,Milk powder,Superabsorbent polymers,Pastry dough,Snack chips,Cheese powder,Instant noodles,Muesli base flakes,Dye powders,Battery electrolytes,Sea salt,Flue gas scrubbers,Steel rods,Chocolate bars,Tablets,Soap bars,Vitamin capsules
Steps before
Sack Tipping,Drum Unloading,BBU Big Bag Unloading,Feeder Refilling,Reactant Loading
Steps after
Mixer Filling,Packing Line Supply,Weighed Vacuum Receiver
Input ingredients
fine powders,coarse powders,granules,bulky materials,small component parts,tablets,compacted particles,sack tipping,drum unloading,BBU Big Bag Unloading,feeder refilling,volumetric feeding,gravimetric feeding
Output ingredients
weighed vacuum receiver for mixer filling,packing line supply,discharged materials,dust free conveying
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Conveying Capacity
0.1 to 8 m³/h
Conveying Distance
up to 40 m
Material Type
Fine and coarse powders,granules,and bulky materials
Suction Device Adaptability
Modular design
Construction Material
Type 304 and 316 stainless steel
Design Execution
Hygienic,suitable for explosive atmospheres (ATEX)
Transfer Mode
Batch or continuous
Filter Cleaning
Automatic during discharge cycle
Vacuum Generation
Venturi ejector or electric vacuum pump

Operating Characteristics


Working mechanism
Vacuum cycle operation
Automation level
Manual / PLC
Batch vs. continuous operation
Batch / Continuous Transfer
Cleaning method
Automatic filter cleaning
Dust management
Dust free,leaks contained
Explosion Safety
ATEX Certified
Flow Control
Turbulent/dense phase control
Cleaning method
Automatic filter cleaning during discharge

Material Compatibility


Abrasion resistance
Suitable for abrasive materials
Biological compatibility
Food grade construction
Cleanability
Hygienic construction available
Corrosive resistance (e.g.,acids)
304 and 316 stainless steel
Density/particle size
Suitable for fine and coarse powders

Product type Characteristics


Flow properties
Difficult/easy
Powder type
Fine/Coarse
Container type
Sack/Drum/Big Bag
Explosion risk
ATEX zone
Material state
Powder/Granule/Bulk
Transfer mode
Batch/Continuous

Physical Characteristics


Compact footprint
Compact and lightweight receiving vessels
Discharge method
Batch or continuous transfer modes

Custom Options


Compact footprint
Yes
Modular design
Adaptable to various equipment
Control panel type
Automated or manual operation
Discharge method
Batch or continuous
Integration possibilities
Hoppers,screws,rotary valves
Material selection
Type 304 and 316 stainless steel
Hygienic construction
Available
