Vacuum conveyor for hygienic material transfer

For operations demanding swift, dust-free material handling, this solution automates and streamlines the transfer process, reducing manual intervention and ensuring the high purity essential for quality end-product outcomes.

Automates Material Conveyance and Transfer

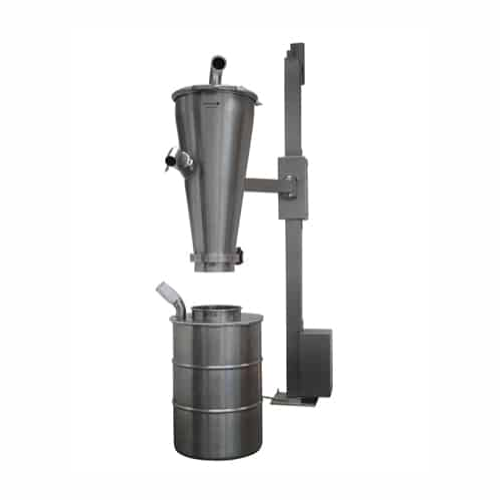

The Uni-Vac V30 from Hanningfield is an ultra-hygienic vacuum conveyor crafted for efficient material handling across diverse industries, including pharmaceuticals and food processing. Its seam-welded hopper, customizable and free of crevices, ensures fast cleaning and minimal contamination risk, vital for maintaining product integrity in GMP environments. Operating without compressed air, this electric pump-driven unit supports continuous operation with a throughput of up to 2000 kgs/hr, making it ideal for high-speed production lines. The V30 integrates seamlessly into existing setups for operations like conveying, loading, and unloading powders and granules. Constructed from 316L stainless steel, the unit offers excellent corrosion resistance and meets stringent industry standards. Additionally, its clamp assembly allows easy disassembly for maintenance, while sloped hopper sides maximize capacity without increasing height, offering a tailored fit for your facility’s needs.

Benefits

  • Enhances productivity by eliminating manual handling and accelerating transfer processes.
  • Reduces operational costs with electric pump operation, eliminating the need for compressed air.
  • Ensures product integrity with a crevice-free, easy-to-clean GMP design.
  • Customizable hopper design fits space constraints without compromising capacity.
  • Streamlines integration with existing production lines, supporting continuous high-speed operation.

General


Applications
Chemicals,Oral solid dosage,Nutraceuticals,Food and beverage,Powder handling,Cannabis,Pharmaceuticals
End products
Protein powders,Chemical powders,Granulated sugar,Cannabis oils,Beverage mixes,Spices,Herbal extracts,Tablets,Pharmaceutical powders,Capsules,Dietary supplements
Steps before
Material Preparation,Mixing,Grinding
Steps after
Feeding Downstream Process,Packing,Inspection
Input ingredients
Output ingredients
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Throughput
2000 kgs/hr (4500 lbs/hr)
Contact Parts Material
316L stainless steel (1.4404)
Non-Contact Parts Material
304 stainless steel (1.4301)
Hopper Diameter
450mm (17.7")
Hopper Height
1400mm (55")
Hopper Capacity
30 litres
Standard Hose Diameter
1.5 / 2.0 inches
Automation
Electric pump

Operating Characteristics


Working Mechanism
Electric pump operated without compressed air
Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP / Easy dismantling for cleaning
Material Transfer Mode
Dust-tight transfer and gravity feed
Suck-and-dump capability
Available
Customizable Design
Customizable hopper size and shape

Material Compatibility


Cleanability
GMP design,easy dismantling for cleaning
Corrosive resistance (e.g. acids)
316L stainless steel

Product type Characteristics


Container size and shape
Customizable
Foaming
Not applicable
Hopper Capacity
30 litres

Physical Characteristics


Hopper Diameter
450mm (17.7")
Hopper Height
1400mm (55")
Hopper Capacity
30 litres
Standard Hose Diameter
1.5 / 2.0 inches
Construction Material
316L stainless steel (1.4404) for contact parts,304 stainless steel (1.4301) for non-contact parts
Customizable Hopper Design
Yes

Custom Options


Hopper Customization
Rolled and seam welded,customization available
Mounting Options
In-line for feeding downstream process
Hopper Tapering
Customizable slope and size for volume
Electric Pump Usage
No compressed air required
