Ultrafine classifier for precise particle separation

Gain precise control over particle size with this ultrafine classifier, ensuring consistent product quality and improving efficiency across your production processes.

Classifies and Separates Ultrafine Particles

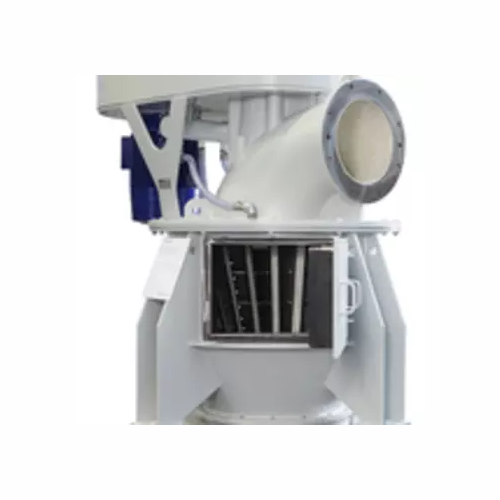

The Ultrafine Classifier MS from Hosokawa Alpine is engineered to provide precise particle separation critical for quality assurance across diverse industry applications, such as pharmaceuticals, food processing, and minerals. This classifier employs a pneumatic feed system, allowing continuous operation while adjusting the classifying wheel speed for unparalleled control over particle size, from d97 = 15 to 150 µm. Ideal for producing high-purity powders and granules, it supports production of end-products like lactose powder, pharmaceutical tablets, and expanded fertilizer granules. With an efficient design that minimizes wear and energy consumption, the Ultrafine Classifier MS offers seamless integration into existing lines, ensuring low operating costs and easy maintenance. Available in wear-protected models for abrasive materials or stainless steel for food and pharmaceutical applications, it can be customized for specific industry needs, promising reliability and performance backed by Hosokawa Alpine’s engineering expertise.

Benefits

  • Enhances product quality by achieving precise particle size control.
  • Lowers operational costs with energy-efficient design and reduced wear.
  • Integrates seamlessly with existing processes for streamlined production.
  • Complies with industry standards, ensuring suitability for pharmaceuticals and food applications.
  • Minimizes contamination risk with optional wear-protected and stainless steel constructions.

General


Applications
Lithium-ion batteries,Minerals,Pigments,Powder coating,Talc,Chemicals,Food,Recycled materials,Additive manufacturing,Animal feed,Metals,Fertilizer,Bentonite,Cocoa processing,Plastics recycling,Pharmaceutics,Calcium carbonate,Protein shifting,Finegrade chemicals
End products
Dishwashing powder,Plastic granules,Cocoa butter,Active pharmaceutical ingredients,Pharmaceutical tablets,Precipitated calcium carbonate,Spices,Recovered carbon black,Titanium dioxide,Industrial wax,Expanded fertilizer granules,Sugar substitutes,Polymeric films,Specialised flours,Talcum powder,Graphite anodes,Bentonite clay products,Soy protein concentrate,Pet flakes,Lactose powder,Recycled plastic pellets,Organic pigments
Steps before
Grinding,Emulsification,Drying,Recovery,Extraction
Steps after
Packing,Coating,Fine Separation,Sterilization,Final Classification
Input ingredients
Talc,Calcium carbonate,Bentonite,Kaolin,Loam,Dolomite,Quartz,Kieselguhr,Pigments,Finegrade chemicals
Output ingredients
Ultrafine particles,Classified powders,Fine particles,Rejected coarse particles
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Working range
approx. d97= 15 to 150 µm
Throughput capacity
High
Energy saving
Low classifier speed
Automation
Stepless adjustment via frequency converter
Pressure drop
Low
Fineness adjustment
Stepless
Feed type
Pneumatic product feed
Wear protection
Available
Material compatibility
Abrasive materials
Design material
Stainless steel (for food/pharma)
Operating mode
In-line

Operating Characteristics


Working mechanism
Air-flow classifier
Batch vs. continuous operation
Continuous
Energy Saving
Low classifier speed
Automation level
Stepless adjustment
Air incorporation control
Classifying wheel adjustment
Cleaning method
No rinsing air standard
Automation level
Frequency converter

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact,space-efficient
Discharge method
Coarse and fines discharge via separate outlets
Feed method
Pneumatic product feed
Classifying wheel design
Conical with inclined vanes
Wear protection
Available for abrasive materials
Structural material
Stainless steel option for food/pharmaceuticals

Custom Options


Wear protection
Available for abrasive materials
Material of construction
Available in stainless steel for food/pharmaceuticals
Use with other equipment
Classifier head for table roller mill or ball mill circuit
