Sterile filling platform for pharmaceuticals

Achieve precise, high-speed aseptic filling and packaging with advanced compliance and seamless integration, ensuring product integrity across diverse applications in life sciences.

Fills, Assembles, and Caps Diverse Containers

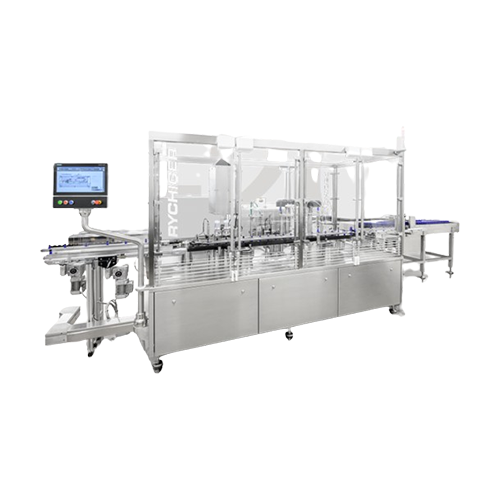

The Z-201 Platform by Rychiger is a versatile, walking beam aseptic fill finish machine designed to meet precise manufacturing standards in the pharmaceutical, consumer health, and diagnostic sectors. Its unique walking beam principle ensures consistent and precise container positioning for operations like feeding, gassing, weighing, inspection, filling, and capping. Applications range from sterile injectable vials to consumer products like face creams and coffee pods. The platform operates at up to 200 units per minute, efficiently handling both liquid and solid products. Engineered for seamless integration, it offers OPC UA connectivity and recipe control for streamlined automation. Its compact design and use of FDA-compliant materials guarantee both compliance and ease of maintenance, while GMP documentation supports regulatory adherence. Easily customizable and capable of quick format changes without tools, the Z-201 enhances uptime and operational flexibility, making it ideal for high-speed production environments.

Benefits

  • Enhances operational efficiency with rapid, tool-free format changes.
  • Ensures regulatory compliance through comprehensive GMP documentation.
  • Minimizes contamination risks with FDA-compliant materials and aseptic processing.
  • Boosts flexibility by handling diverse container types and products.
  • Supports seamless production integration with OPC UA connectivity and recipe control.

General


Applications
Snacks,Multi beverage,Pet food,Home supplies,Aseptic fill finish,Coffee,Confectionary,Consumer health,Cosmetics,Otc products,Janitorial supplies,In-vitro diagnostics,Baby food,Tea,Dairy products,Pharmaceuticals
End products
Face creams,Coffee pods,Nutritional supplements,Bottled beverages,Baby formula,Cleaning sprays,Over-the-counter cough syrup,Diagnostic test kits,Yogurt cups,Potato chips,Aseptic vaccine vials,Chocolate bars,Sterile injectable vials,Tea sachets,Pet food cans,Detergent bottles
Steps before
Component feeding and presentation,Pre-gassing
Steps after
Post-gassing,Inspection,Labeling,Cartoning,Batch report,Line clearance
Input ingredients
glass bottles,plastic bottles,aluminum containers,cylindrical containers,square containers,sterile products,non-sterile products,vials,droppers,stoppers,spray pumps
Output ingredients
filled glass bottles,filled plastic bottles,filled aluminum containers,filled cylindrical containers,filled square containers,aseptic fill-finished vials,sealed bottles,inspected products,labeled products,assembled closures
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Platform speed
200 containers/min
Output per hour
12,000 units/h
Filling method
Volumetric,rotary piston or Peristaltic pumps
Container compatibility
Glass,plastic,or aluminum
Container shape
Cylindrical,square,or uniquely shaped
Automation level
OPC UA connectivity
Compressed air usage
6 bar,100 l/min
Power supply
400V 3 PE N
Rated power
5-20 kW
Unit height
Up to 180 mm
Outer unit diameter
Up to 70 mm
Material handling
Sterile and non-sterile
Batch documentation
Compliant audit trail
Format change
No tools required
Hygienic design
cGMP,FDA-compliant materials
Aseptic capability
RABS,LAF,oRABS,Isolator

Operating Characteristics


Working mechanism
Walking beam principal
Automation level
PLC controlled
Batch vs. continuous operation
Batch and inline capabilities
Integrated steps
Component feeding,pre and post gassing,in-process weighing,liquid filling,tablet counting,insertion of droppers and stoppers,snap closure,torque monitored cap closing
Changeover time
Rapid format change
CIP/SIP
cGMP hygienic design
Energy efficiency
Not specified

Material Compatibility


Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Container type
Glass / Plastic / Aluminum
Multi-format capability
Plastic,aluminum,and glass containers


GMP Compliance
Yes
FDA Materials
Yes
CGMP Hygienic Design
Yes

Physical Characteristics


Machine footprint
Small
Compact footprint
Yes
Control panel type
HMI system
Discharge method
Walking beam principal
Container type compatibility
Glass,plastic,aluminum

Custom Options


Control panel type
Virtual cockpit (HMI)
Integration possibilities
OPC UA connectivity
Format change
Rapid,tool-less
Container adaptability
Glass,plastic,aluminum
Filling technologies
Volumetric,rotary piston,peristaltic pumps
Applications range
Sterile and non-sterile products
Format line
Multi Product and Multi Format
