Single screw feeder with stirring agitator for powders and pellets

Ensure consistent mass flow and precise dosing with a single screw feeder designed to handle a variety of powders and pellets, crucial for optimizing production line efficiency and maintaining product quality.

Feeds and Mixes Powders and Pellets Consistently

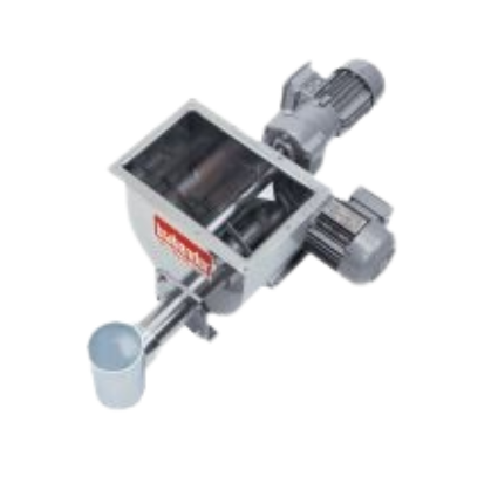

The Single Screw Feeder with Stirring Agitator from Solids Process Solutions is engineered for precise volumetric feeding of powders and pellets. This feeder features a stainless steel hopper with an activated stirring agitator to ensure consistent screw filling and mass flow of solids. It is ideal for industries including aquafeed, pharmaceuticals, and plastics, addressing the need for precise dosing and feeding. Interchangeable screws and screw tubes allow quick adjustments to varying ingredients and feed rates, accommodating a range of production requirements. Equipped with separate screw and agitator motors, the device provides flexibility and reliability in continuous operations. Easy cleaning capabilities enhance operational efficiency, reducing downtime during maintenance. The feeder can handle products such as fish pellets, calcium carbonate powder, and vitamin supplements, supporting a wide range of applications.

Benefits

  • Ensures precise and consistent feeding with activated stirring agitator.
  • Minimizes downtime with easily interchangeable screws and quick-clean design.
  • Enhances operational flexibility with separate screw and agitator motors.
  • Adapts to diverse production needs across multiple industries.
  • Supports sustainable practices by reducing energy usage in volumetric operations.

General


Applications
Food,Fine chemical,Feed,Recycling,Nutrition,Detergents,Compounding,Chemical,Pharma,Plastics,Minerals,Masterbatch,Aquafeed,Dairy,Petfood
End products
Detergent tablets,Pharmaceutical tablets,Chemical reagents,Animal feed supplements,Plastic pellets,Vitamin supplements,Recycling granules,Milk powder,Fish pellets,Protein powder,Fragrance powders,Calcium carbonate powder
Steps before
Mixing,Grinding
Steps after
Extrusion,Pelletizing,Packaging
Input ingredients
powders,pellets
Output ingredients
consistent screw filling,mass flow of solids
Market info

Technical Specifications


Dosing type
Volumetric
Material compatibility
Powders and pellets
Construction material
Stainless steel
Adjustability
Interchangeable screws and screw tubes
Motors
3 phase AC gear motors (except DSR28)
Cleaning
Easy and quickly cleanable

Operating Characteristics


Working Mechanism
Single screw with stirring agitator
Feeding Method
Volumetric
Cleaning Method
Easy and quickly cleanable
Agitation Control
Separate screw and agitator motors
Batch vs. Continuous Operation
Batch
Adjustability
Interchangeable screws and screw tubes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


3A Sanitary Standards
Possible
GMP Compliance
Potential
FDA Materials
Potential
CE marking
Possible
ATEX certification
Possible

Physical Characteristics


Tank shape
Stainless steel hopper
Discharge method
Volumetric

Custom Options


Interchangeable screws and screw tubes
Yes
Quick adjustment to changing ingredients and feed rates
Yes
Separate screw and agitator motors
3 phase AC gear motors
Easy and quick cleaning version
Available
