Powder flow control systems for precise gravity transfer

Achieve seamless powder flow control in your production line with systems designed for precise dosing, sampling, and discharge regulation, effectively preventing overfill and ensuring optimal processing efficiency.

Regulates and Controls Powder Flow

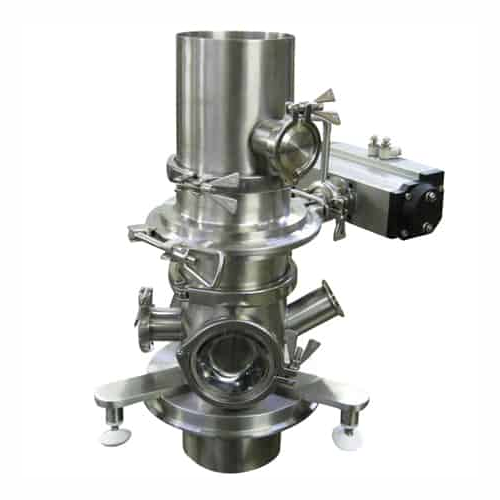

The Powder Flow Control System from Hanningfield is designed for the precise regulation of powder transfer in pharmaceutical, nutraceutical, and food processing environments. Featuring a robust rotary valve mechanism, it enables controlled dosing and efficient discharge regulation, essential for operations needing uninterrupted powder flow. This system is specially tailored for applications such as tablet and capsule production, dietary supplements, and beverage flavorings, ensuring minimal waste and optimal product integrity. Constructed from 316L stainless steel and equipped with FDA-compliant seals, it assures compliance with stringent industry standards for hygiene and corrosion resistance. Integration is seamless with existing machinery, utilizing PLC controls for continuous and automated processing, and features like level monitoring and sampling ports to prevent overflow and ensure quality assurance. The unit’s tri-clover clamps facilitate easy disassembly, promoting quick cleaning and maintenance, crucial for minimizing downtime and upholding cleanliness. Adaptations, such as varying flange types, permit compatibility with diverse production settings, backed by engineering support for specialized customization requirements.

Benefits

  • Ensures consistent product quality by precisely regulating powder flow and dosage.
  • Minimizes waste and contamination with easy-to-clean, quick-disassembly design.
  • Reduces operational downtime through seamless integration with existing equipment and automated controls.
  • Enhances compliance with industry standards using FDA-compliant, corrosion-resistant materials.
  • Supports diverse production needs with customizable configurations and engineering support.

General


Applications
Fine chemicals,Nutraceuticals,Pharmaceutical powder,Food and beverage,Cannabis
End products
Protein powders,Beverage flavorings,Thc oils,Cbd capsules,Food flavoring powders,Tablets,Instant drink mixes,Capsules,Dietary supplements
Steps before
Grinding,Milling,Sieving
Steps after
Compression,Encapsulation,Filling
Input ingredients
powder
Output ingredients
controlled powder flow
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Valve type
Rotary valve
Material
316L stainless steel
Seal compliance
FDA compliant
Integration compatibility
Existing site machinery
Assembly method
Tri-clover clamps
Flange type
Customizable for existing equipment
Level control
Level probe
Additional components
Sight-glass,sampling port,breather sock
Cleaning method
Quick dismantling for cleaning

Operating Characteristics


Working Mechanism
Rotary valve dosing
Integrated Steps
Level probe,sight-glass,sampling port
Batch vs. Inline Flow
Inline Continuous
Flow Control
Manual / Automatic
Powder Trigger Levels
High/Low sensor activation
Cleaning Method
Quick dismantling for cleaning
Material Handling
Gravity transfer

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
FDA compliant
Cleanability
Easy dismantling for cleaning
Corrosive resistance (e.g. acids)
316L stainless steel
Density/particle size
Applicable for various sizes

Physical Characteristics


Footprint
Compact design
Construction Material
316L stainless steel
Dismantling Method
Tri-clover clamps
Valve Type
Rotary valve
Customization Options
Level probe,sight-glass,sampling port,breather sock
Flange Type
Any flange type

Custom Options


Control panel type
Customizable HMI
Integration possibilities
Compatible with existing site machinery
Flange type
Customizable for site equipment
Additional features
Level probe,sight-glass,sampling port,breather sock
