Pilot plant homogenizer for immiscible liquids

Streamline your R&D with precise homogenization, allowing you to test and perfect formulations on a small scale before full production, ensuring consistent, high-quality end products for your market-ready processes.

Homogenizes and Emulsifies Liquids for Pilot Projects

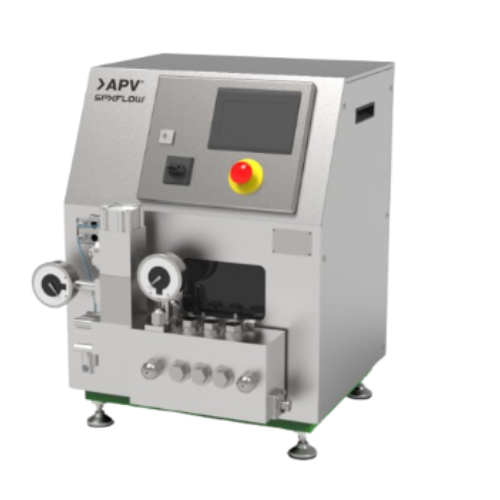

The Pilot 4T Homogenizer from APV is a versatile solution designed for precise homogenization and emulsification in R&D and pilot-scale environments. This compact unit offers full production capabilities with adjustable flow rates from 20 to 600 lph, featuring a three-plunger design for smooth, stable operation. Ideal for the food, dairy, chemical, and pharmaceutical industries, it enables the creation of products like plant-based milks, vitamin concentrates, and skin serums.

The equipment operates on the principle of forcing liquids at high pressures through a narrow gap to achieve particle size reduction and stable emulsions. With its integrated variable speed drive and PLC options, it facilitates seamless integration into existing systems, offering manual or touchscreen controls for ease of use.

Constructed with high-grade duplex stainless steel and optional tungsten carbide, Stellite, or ceramic valves, the Pilot 4T ensures durability and chemical resistance. It adheres to 3A and FDA standards, featuring CIP/SIP cleanability to uphold hygiene and reduce maintenance downtime. The modular design supports customization and scalability, making it an excellent choice for developing innovative products in pilot plant settings.

Benefits

  • Enhances product consistency with precise particle size control and emulsification.
  • Adapts to diverse production needs with adjustable flow rates and modular design.
  • Minimizes operational costs through efficient use of energy and resources.
  • Maintains high hygiene standards with CIP/SIP cleanability and FDA-compliant materials.
  • Simplifies scalability and innovation for pilot-scale and R&D projects.

General


Applications
Cream,Food and ingredients,Biotechnology,Fine chemicals,Pet food,Nutraceuticals,Creams and lotions,Milk,Plant-based drinks and food,Plant-based alternatives,Biopharmaceuticals,Chemical,Dairy powders,Yogurt,Baby food,Fruit juice,Dairy,Pharmaceuticals
End products
Plant-based milk (such as almond milk or soy milk),Moisturizing creams,Protein powders,Fruit smoothies,Vaccines,Flavored milks,Skim milk powder,Insulin,Infant formula,Doggy treats,Probiotic drinks,Cheese,Vitamin concentrates,Energy drinks,Yogurt drinks,Milkshakes,Skin serums,Protein bars
Steps before
Purification,Emulsification,Grinding,Heat Transfer,Mixing,Blending
Steps after
Sterilization,Packing,Drying,UHT Processing,Particle Size Adjustment
Input ingredients
immiscible liquids,oil,water
Output ingredients
emulsion,smoother emulsions,finer emulsions,uniform emulsions,creams,lotions
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Flow rate
20 to 600 LPH
Pressure range
Up to 700 bar
Plunger count
3
Drive type
Built-in variable speed drive
Automation
Manual or PLC-controlled
Dimensions (Standard Machine)
750 x 660 x 850 mm
Dimensions (Mounted on Frame)
750 x 745 x 1460 mm
Net Weight
275 kg
Gross Weight
395 kg
Connections
20 mm | 3/4" Tri-clamp
Power
4 kW | 5.4 HP
Capacity
Up to 600 LPH
Pressure unit
Up to 8700 PSI

Operating Characteristics


Working Mechanism
Positive displacement pump with homogenizing valve
CIP/SIP
CIP or SIP cleanability
Batch vs. continuous operation
Pilot or small-scale production
Automation level
Manual or touchscreen PLC
Adjustable Flow Rates
20 to 600 lph
Remote Operation
Interface to plant control systems
Flow Rate Control
Variable speed drive
Stage Operation
Single or two-stage
Control Panel Type
Manual or touchscreen
Integration
Plug and play
Stability Design
Three-plunger design

Material Compatibility


Cleanability
CIP / SIP
Corrosive resistance (e.g. acids)
High-grade duplex stainless steel
Biological compatibility
Standard FDA product contact materials
Abrasion resistance
High-efficiency hard-wearing tungsten carbide,Stellite or ceramic homogenizing valves

Physical Characteristics


Dimensions (L x W x H) Standard Machine
750 x 660 x 850 mm
Dimensions (L x W x H) Mounted on Frame
750 x 745 x 1460 mm
Dimensions (L x W x H) Packed in Crate
1360 x 1050 x 1300 mm
Compact footprint
Yes
Flow rate range
20 to 600 lph
Number of Plungers
3
Connections
20 mm | 3/4" Tri-clamp

Custom Options


Control panel type
Manual / Touchscreen PLC
Integration possibilities
Interface to plant control systems
Modular design
Easy-to-add stages
Discharge method
High-pressure discharge connection
Optional materials for valves
Tungsten carbide,Stellite,Ceramic
