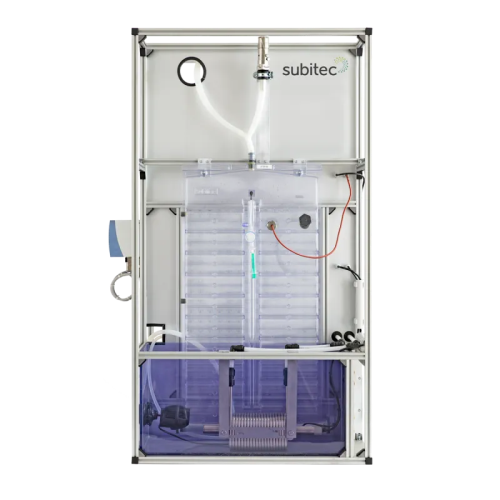

Lab-scale microalgae cultivation system

Achieve precise control of microalgae cultivation with optimized growth conditions using innovative airlift photobioreactor technology, ensuring high-quality biomass for your production needs.

Cultivates and Scales Microalgae for Diverse Applications

Subitec’s Flat-Panel Airlift Photobioreactor Systems, including the LS6, LS28, LS4x28, and LS180 models, are engineered to optimize microalgae cultivation from lab to pre-scale production. These systems feature hermetically sealed designs that leverage flat-panel airlift technology for precise control over cultivation conditions. Each model supports high-density algal production for a range of applications such as nutraceuticals, cosmetics, and biofuel production. The LS series offers flexible scalability options, from 6 liters in the LS6 to 180 liters in the LS180, ensuring seamless integration into existing production lines. Advanced features like integrated LED lighting, aeration membranes, and sampling units enhance productivity and sustainability. Designed to meet diverse industry needs, these systems ensure contamination-free operations and are ideal for sensitive applications, with customization and engineering support available to meet specific operational requirements.

Benefits

  • Enhances production efficiency with scalable options for various volume requirements.
  • Ensures high-quality microalgal biomass through precise environmental control.
  • Minimizes contamination risk with hermetically sealed design.
  • Facilitates integration with existing processes for continuous production.
  • Supports sustainability with reduced energy consumption through optimized operations.

General


Applications
Animal feed,Cosmetics,Pharma,Carbon capture,Wastewater treatment,Food supplements
End products
Skin rejuvenation masks,Livestock nutritional supplements,Bioethanol,Biodegradable polymers,Nutraceutical capsules,Astaxanthin serums,Algal biomass for energy production,Chlorella powders,Spirulina tablets,Bioplastic production additives,Algal biofertilizers,Fish feed pellets,Algal creams,Algal effluent treatment compounds,Algal-based detox drinks,Omega-3 enriched oils,Organic pigments for cosmetics
Steps before
Culture Preparation,Inoculation,Media Preparation
Steps after
Harvesting,Biomass Separation,Downstream Processing
Input ingredients
microalgae,CO2,light,temperature-controlled environment,culture medium
Output ingredients
high-quality microalgal biomass,genetically modified microalgae,dense microalgal culture
Market info
Subitec GmbH is known for its expertise in cultivating microalgae using its unique flat-panel airlift (FPA) photobioreactor technology, providing sustainable solutions for biofuel production, bioplastics, and high-value ingredients in various industries.

Technical Specifications


Cultivation volume
6 litres
Cultivation volume
28 litres
Cultivation volume
112 litres
Cultivation volume
180 litres
Photosynthetic surface area
0.6 square metres
Photosynthetic surface area
2.3 square metres
Photosynthetic surface area
9.3 square metres
Photosynthetic surface area
15 square metres
LED light intensity
80..800 µmol m-2s-1
LED power
320 W
LED power
500 W
LED power
2000 W
LED color temperature
4000 K
Illuminated area (LS6)
400 x 750 mm
Illuminated area (LS28)
900 x 1300 mm
Illuminated area (LS4x28)
900 x 1300 mm
Illuminated area (LS180)
1800 x 2500 mm
Operating volume
6 litres
Operating volume
28 litres
Operating volume
112 litres
Operating volume
180 litres
Automation
Integrated LED dimmable
Air supply
Yes
CO2 supply
Yes
Pressure regulator
For air and CO2
Sampling unit
Yes
Aeration membrane
Yes
Foam trap
Yes
Temperature control
Yes
PH probe
Yes
Temperature probe
Yes
Data storage
Yes
Control panel
Touchscreen

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
CIP/SIP
CIP 121°C / SIP 135°C

Material Compatibility


Biological compatibility
Optimal for microalgae
Cleanability
Contamination-free production
Corrosive resistance (e.g. acids)
Sealed design for protection
Abrasion resistance
Robust construction for industrial use

Product type Characteristics


Aeration control
Integrated system
Scalability
Lab-scale to industrial
Contamination control
Hermetically sealed
Productivity
High-density cultures
Photosynthetic efficiency
Up to 15 square meters
Flexibility in use
Individual or simultaneous operation
LED lighting
Dimmable
Temperature control
Integrated
PH control
Probe integrated
Data storage
Touchscreen interface

Physical Characteristics


Machine footprint
Compact
Cultivation volume
6 litres (LS6),28 litres (LS28),112 litres (LS4x28),180 litres (LS180)
Photosynthetic surface area
0.6 m² (LS6),2.3 m² (LS28),9.3 m² (LS4x28),15 m² (LS180)
Control panel type
Touchscreen
Light source
LED dimmable 80..800 µmol m-2s-1
Flat-Panel-Airlift-Photobioreactor
Yes
Illuminated area
400 x 750 mm (LS6),900 x 1300 mm (LS28 and LS4x28),1800 x 2500 mm (LS180)
Material
Hermetically sealed design
Air supply
Integrated aeration membrane with air/CO2 supply
Temperature control
Yes
PH probe
Yes
Pressure regulator
Air and CO2 specific for each model

Custom Options


Control panel type
Touchscreen
