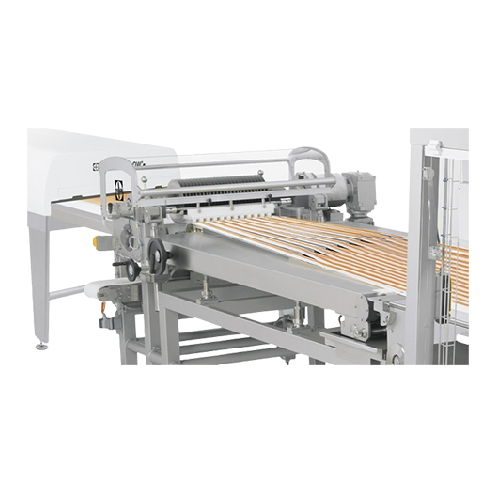

Industrial spreading systems for sticky products

Effortlessly manage the spread of sticky confectionery products with precision, ensuring optimal texture and coverage before chocolate coating in high-speed production environments.

Spreads and Aligns Sticky Confectionery Products

Sollich’s Spreading Systems are designed for precision handling of confectionery and bakery products. These systems excel in spreading sticky and slitted items across separate belts, utilizing vertical and horizontal spreading mechanisms to ensure consistent quality and precise width control. Commonly applied in the production of candy bars, cereal bars, pralines, and more, these systems handle a working width range of 300 mm to 2300 mm. With easy product width changes and a focus on hygiene, cleaning is straightforward, minimizing downtime. Fully integrable into high-speed production lines, these systems support continuous operations, enhancing throughput while maintaining product integrity. Constructed from durable materials, the equipment is designed for long-term use under rigorous industrial conditions.

Benefits

  • Enhances production efficiency by seamlessly integrating into high-speed lines.
  • Ensures consistent product quality with precise spreading control.
  • Minimizes cleaning time with easy-access design for quick maintenance.
  • Increases operational flexibility with adjustable product width capabilities.
  • Supports large-scale production demands with wide working range capacity.

General


Applications
Biscuits,Snacks,Pralines,Dragees,Brittles,Fruit bars,Chocolate products,Cereal bars,Sweets,Candy bars,Ice cream,Protein bars
End products
Chocolate truffles,M,Ferrero rocher,Granola bars,Skittles,Chocolate chip cookies,Oreos,Rocky road ice cream,Almond brittle,Mars bars,Power bars,M's,Snickers,Kind healthy grains bars,Bounty bars,Clif bars,Kitkat,Peanut brittle
Steps before
Slitting
Steps after
Chocolate Coating,Cooling,Enrobing,Packing
Input ingredients
sticky products,product ropes
Output ingredients
spread sticky products,chocolate coated products
Market info
Sollich is known for manufacturing engineered-to-order equipment for the confectionery industry, particularly chocolate processing and enrobing machines. They have a strong reputation for innovation, quality, and tailored solutions to meet specific customer requirements.

Technical Specifications


Working width
300/400 up to 1600/2300 mm
Vertical Spreading
Yes
Horizontal Spreading
Yes
Ease of cleaning
Easy cleaning
Product width change
Easy change
Spread angle
Low spread angle

Operating Characteristics


Working mechanism
Positive fanning out on separate spreading belts
Integrated steps
Slitting and spreading
Changeover to product width
Easy transition
CIP/SIP
Easy cleaning
Working width
300/400 up to 1600/2300 mm
Spread angle
Low
Cleaning method
Easy cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Variable depending on product line
Working width
300/400 up to 1600/2300 mm
Spreading belt type
Separate spreading belts
Spread angle
Low
Vertical and horizontal spreading
Yes

Custom Options


Working width
300/400 up to 1600/2300 mm
Spreading configuration
Vertical and horizontal spreading
Product width adjustment
Easy change to another product width
Cleaning accessibility
Easy cleaning
