High-performance checkweigher for pharmaceutical tablet cartons

Achieve precision weighing at speeds up to 500 units per minute, ensuring your production line maintains quality control for diverse products like tablets and capsules with seamless integration into packaging operations.

Verifies Precise Product Weights in High-Speed Lines

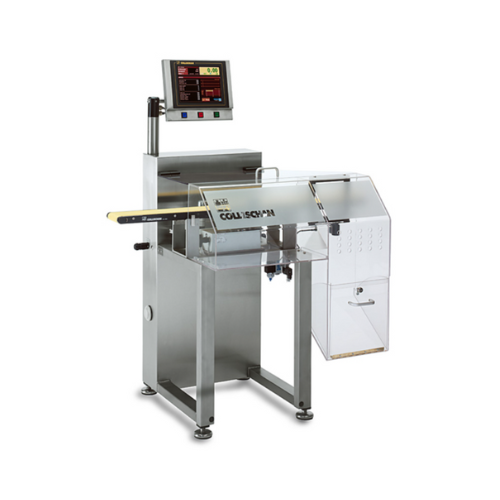

The TC 8410 from Collischan GmbH & Co. KG is a high-performance checkweigher tailored for high-speed precision in diverse industries, including food, pharmaceutical, chemical, and automotive sectors. This equipment is exceptional due to its multi-track application capability, enhancing integration into complex production lines. With a throughput of up to 500 weighings per minute, it ensures high-speed and reliable weight verification for products ranging from chili powder and vitamin tablets to airbag explosives.

The TC 8410 offers flexibility in programming, allowing you to customize the weighing parameters through its intuitive operation terminal, which facilitates continuous data monitoring and collection. Its remote function enables networked control, allowing you to monitor and adjust machine operation from an external PC via Ethernet or RS232 interfaces.

Designed with a robust logbook and statistical analysis tools, the TC 8410 saves and displays production data, providing valuable insights into batch operations and deviations. Its modular design allows customization of conveyer belt dimensions, ensuring optimal fit with product packages.

Construction materials and compliance standards are aligned with industry needs, ensuring durability and compatibility with diverse materials, including potentially hazardous substances. Additionally, the TC 8410 comes with engineering support for bespoke solutions to meet unique production requirements.

Benefits

  • Enhances production efficiency with high-speed, precise weight verification up to 500 products per minute.
  • Customizable software allows for tailored monitoring, optimizing quality control and reducing rejects.
  • Remote monitoring capabilities reduce onsite intervention, streamlining operations management.
  • Comprehensive data logging aids in detailed production analysis, supporting continuous improvement.
  • Adaptable design fits seamlessly into existing multitrack production lines, minimizing integration efforts.

General


Applications
Chemistry,Automotive,Coffee,Food industry,Powder and granules,Explosive material,Spices,Sweets and drops,Pharma industry,Tablets,Tea,Capsules
End products
Matcha green tea,Gelatin capsules,Chili powder,Licorice drops,Granulated sugar,Vitamin tablets,Protein powder,Airbag explosives,Fireworks components,Industrial chemicals,Espresso coffee grounds
Steps before
Formulation,Mixing,Blending,Compounding
Steps after
Quality Control,Packing,Labeling,Distribution
Input ingredients
tablet cartons,products up to 300 g,spices,tea,coffee,powder and granules,sweets and drops,tablets,capsules,explosive material
Output ingredients
precisely checked products,weighing data,production batch statistics,deviation from target weight
Market info

Technical Specifications


Speed
Up to 500 weighings per minute
Weighing Range
Up to 300 g
Customization
Programmed operation terminal
Remote Control
Via Ethernet or RS232 interface
Logbook and Statistic
Automatic data saving
Multitrack Application
Integration in multitrack lines

Operating Characteristics


Weighing speed
Up to 500 weighings per minute
Weighing range
Up to 300 g
Customizability
Programmable operation terminal
Remote control capability
Ethernet/RS232 interface
Software flexibility
Customizable software and signals
Data logging
Logbook and statistical data storage
Multitrack integration
Compact systems for multitrack lines
Customized conveyor belts
Length and width tailored to products

Material Compatibility


Cleanability
Easy to clean surfaces for food and pharma industries
Corrosive resistance (e.g. acids)
Resistant
Density/particle size
0.1–300 g

Product type Characteristics


Container Size
Up to 300 g

Physical Characteristics


Control panel type
Operation terminal,programmable
Customizable conveyor belts
Length and width customized to products/packages

Custom Options


Control panel type
Programmable operation terminal
Integration possibilities
Ethernet and RS232 interface
Software customization
Flexible programming and customization
Conveyor belt customization
Custom length and width to match packages
Remote function
Monitor and control via external PC
Data logging and statistics
Logbook and configurable statistics
Multitrack application integration
Compact weighing systems for multitrack lines
