Energy efficient chocolate tempering solution

Enhance your chocolate products with precise temperature control, reducing energy consumption by up to 30%. This solution ensures consistent product quality, delivering perfect chocolate crystallization that enhances taste and texture in every bite.

Tempers and Crystallizes Chocolate Efficiently

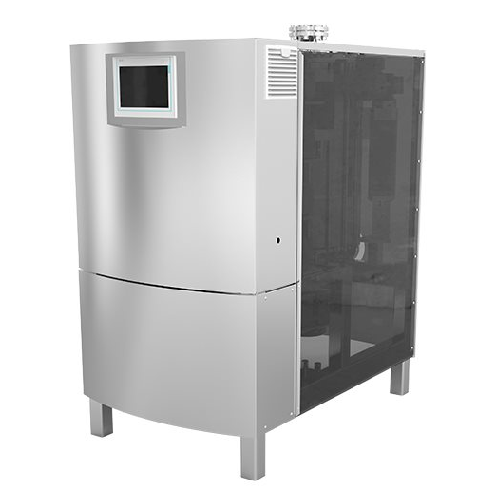

The SuperNova Energy from Aasted revolutionizes chocolate tempering by extending crystallization time and ensuring a stable production of Beta V crystals. This tempering machine is integral in producing high-quality chocolate bars, pralines, and coatings with enhanced taste and texture. Its unique scraper wings and precise temperature control allow up to 30% reduction in energy consumption compared to traditional systems, making it a sustainable choice for chocolate manufacturers, confectionery producers, and bakery businesses. Suitable for continuous, high-speed operations, it efficiently integrates with existing production lines, handling throughput from 200kg/h to 12,000kg/h. The system is designed with easy HMI for monitoring and minimal maintenance requirements, providing a reliable solution for maintaining superior end-product quality.

Benefits

  • Reduces energy costs significantly by up to 30% compared to traditional tempering methods.
  • Enhances product quality with stable Beta V crystals, ensuring a superior taste and texture.
  • Minimizes downtime through continuous operation and easy integration with existing production lines.
  • Lowers maintenance needs with simple design and easy component access.
  • Provides flexible production options with throughput capacity ranging from 200kg/h to 12,000kg/h.

General


Applications
Chocolate,Confectionery products,Bakery products
End products
Glazed donuts,Chocolate truffles,Chocolate coatings,Chocolate pastries,Ganache fillings,Toffees,Chocolate pralines,Chocolate-covered nuts,Chocolate bars,Moulded chocolate figures,Caramel-filled chocolates,Filled chocolate tablets,Chocolate-coated biscuits
Steps before
Melting Chocolate,Mixing Ingredients,Feeding Ingredients
Steps after
Cooling,Enrobing,Moulding,Box Filling,Packaging
Input ingredients
chocolate mass,ingredients for tempered chocolate,temperatures for chocolate stabilization
Output ingredients
tempered chocolate with Beta V crystals,chocolate with improved taste and consistency,perfect coating chocolate
Market info
Aasted is known for its expertise in manufacturing equipment for the chocolate, bakery, and confectionery industries, offering solutions like tempering, molding, and baking machinery with a strong reputation for innovation and quality.

Technical Specifications


Capacity
200–12,000 kg/h
Energy Consumption Reduction
Up to 30% lower
Operating Temperature
1.5–2°C higher than traditional methods
Automation
PLC-controlled / HMI design
Energy Efficiency
Green efficient 24/7 production
Built-in Components
Tanks and pumps for re-circulation
Crystal Formation
Beta V crystals
Temperature Control
Precise control within crystallization zone

Operating Characteristics


Working mechanism
Tempering with crystallization zone control
Integrated steps
Feeding,mixing,and tempering
Batch vs. continuous operation
Continuous (inline production shift)
Energy efficiency
Energy saving up to 30% lower than traditional
Automation level
Easy HMI design,PLC-controlled
Cleaning method
Easy cleaning with hygienic design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact for factory integration
Tank capacity
150 kg to 3,000 kg
Control panel type
Easy HMI design
Discharge method
Accurate deposition via pumps
Material finish
Hygienic stainless steel
Built-in pump
Available in CTS model

Custom Options


Control panel type
Easy HMI design
Integration possibilities
Inline production shift capability
Compact footprint
Minimized down-time
