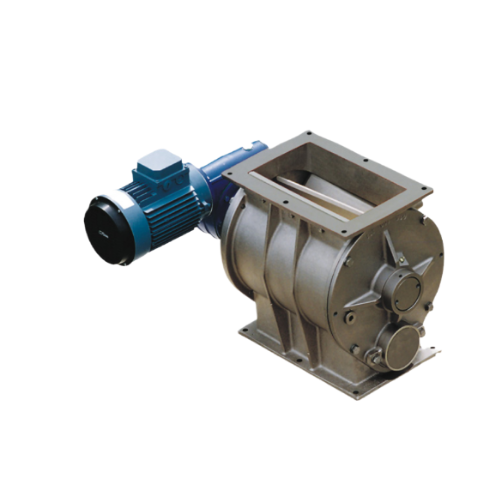

Drop-through rotary valve for precise powder and granule feeding

Ensure precise material handling with this drop-through rotary valve, designed to deliver consistent feeding and controlled flow of powders and granules. Ideal for continuous, high-speed operations, it optimizes your production line’s efficiency.

Feeds and Meters Powders and Granules Accurately

The Drop-Through Rotary Valves RVC from WAMGROUP are precision-engineered rotary feeders designed to optimize material feeding and metering across diverse industrial applications. Utilizing a horizontally mounted rotor with oblique V-shaped cross-section compartments, these valves ensure a continuous, evenly metered flow of powders and granules. Ideal for industries such as building and construction, feed and food processing, plastics, and chemicals, they are capable of handling a wide range of materials—from cement and powdered milk to polyethylene pellets and cosmetic ingredients.

With feed rates ranging from 5 to 80 liters per revolution, the RVC valves are customizable with different drive units for tailored rotational speeds, catering to specific production needs. Constructed from tubular cast iron or stainless steel, they offer durability and resistance to corrosion, essential for handling abrasive or chemically aggressive materials. Available in ATEX version for Zone 22, these valves offer safe operation in environments where dust explosions are a risk.

The compact and robust design provides easy access to internal components, simplifying maintenance and minimizing downtime. These valves integrate seamlessly into continuous and high-speed processing environments, with compatibility for both mechanical and pneumatic conveying systems. Their versatility is further enhanced by optional coatings and material treatments, ensuring optimal performance and longevity in harsh operational conditions.

Benefits

  • Increases production efficiency by providing consistent and precise material flow.
  • Minimizes operational risks with ATEX Zone 22 certification for explosive dust environments.
  • Enhances equipment longevity with corrosion-resistant material options.
  • Reduces maintenance time with easy access to internal components.
  • Versatile integration into existing pneumatic and mechanical systems.

General


Applications
Lime,Steel,Pesticide,Asphalt,Tobacco,Granules,Noodles,Cosmetics,Soap,Minerals,Chocolate,Cement,Insecticide,Glass,Spices,Brick,Rubber,Resin,Cocoa,Ceramics,Animal feed,Pasta,Sugar,Convenience food,Varnish,Roof tile,Biscuit,Fertilizer,Rice,Plastics,Salt,Foundries,Petfood,Bakeries,Pharmaceuticals,Fish food,Paint,Iron,Beverage,Coffee,Detergent,Gypsum,Powders,Refractory products,Breweries
End products
Dog biscuits,Spaghetti,Mosquito repellent,Bottled water,Clay roof tiles,Hydrated lime,Pelletized animal feed,Curry powder,Rubber tubes,Asphalt shingles,Craft beer,Cocoa powder,Polyethylene pellets,Laundry detergent,Epoxy resin,Glyphosate,Ceramic tiles,Kibble,Stained glass,Portland cement,Fish pellets,Iron castings,Coffee beans,Fire bricks,Face cream,Ammonia fertilizer,Powdered milk,Granulated sugar,Ramen noodles,Acrylic paint,White sugar,Gypsum boards,Instant soup,Shredded tobacco,Clay bricks,Polyurethane varnish,Rice grains,Bread loaves,Sea salt,Steel rods,Chocolate bars,Quartz sand,Antiseptic soap,Paracetamol tablets
Steps before
Grinding,Mixing,Drying
Steps after
Packing,Dust Filtration,Conveying
Input ingredients
powders,granules
Output ingredients
accurately metered powders,accurately metered granules
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Accuracy
High feeding accuracy
Feed rates
5 ~ 80 litres per revolution
Differential pressure
0.7 bar (11.6 PSI) max
Material
Tubular cast iron or stainless steel casing
Rotation speed
Various drives for different rotation speeds
Configurations
Available as ATEX version,Zone 22
Compartment design
V-shaped cross section

Operating Characteristics


Feeding Method
Continuous Rotor Motion
Feed Rate
5 ~ 80 litres per revolution
Material Handling
Powders or Granules
Automation level
Manual / PLC Controlled
Drive Mechanism
Different Drives for Rotation Speeds
Cleaning method
Easy Access to Internal Parts for Maintenance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Zone 22

Physical Characteristics


Machine footprint
Compact design
Rotor shape
Oblique V-shaped cross section compartments
Discharge method
Drop-through
Material
Cast iron or stainless steel casing
Number of compartments
Variable (based on design)
Drive type
Various drives for different rotation speeds

Custom Options


Material of construction
Cast iron / Stainless steel
Drive unit type
Various drives for different speeds
ATEX version availability
Zone 22
