Depositing solutions for liquid and semi-liquid foods
Ensure consistent portioning and minimize waste with advanced depositing solutions that cater to a range of liquid and semi-liquid foods, ideal for expanding product variety and enhancing efficiency.
Deposits, Cuts, Sprays, Enrobes, and Decorates Products

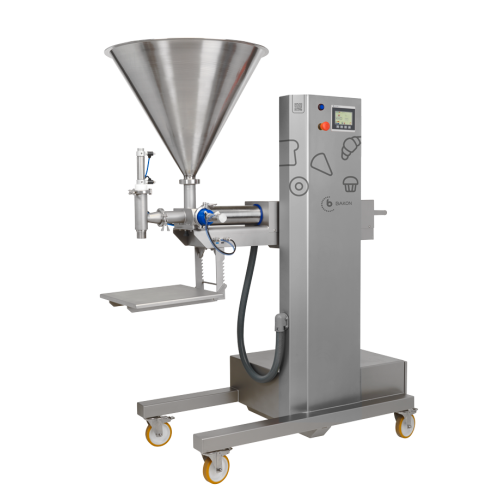

BAKON’s BD Range Depositing Machines are engineered for versatility and precision in food and bakery processing. Utilizing a servo-driven depositing cylinder, the BD9 ensures accurate control over depositing movements, adaptable for various formats from liquids to semi-liquids. Suitable for creating cake batters, custards, and sauces, these machines cater to artisan bakeries as well as large-scale manufacturers. The BD Range machines offer integration capabilities with existing production lines and feature an intuitive full-color touchscreen for easy operation and recipe management.
Processing up to 1100 ml per deposit, they accommodate both manual and automated operations, ensuring high throughput with minimal waste. Crafted in stainless steel, these machines promise durability and compliance with food safety standards. Maintenance is simplified with a design focusing on easy disassembly for thorough cleaning, ensuring hygiene and reducing downtime. Customizable features include varied nozzle options, foot pedal operation for manual settings, and compatibility with different production scales, from small hotels to industrial food producers.
Benefits
- Enhances production efficiency with precise depositing control.
- Minimizes product waste through accurate portioning.
- Reduces labor requirements with easy-to-use automated controls.
- Ensures hygiene with user-friendly cleaning design.
- Adapts to diverse production needs with customizable features.
- Applications
- Mousses,Sauces,Dough,Ready-made meals,Soups,Dips,Desserts,Cakes,Confections,Food products,Pastries,Bakery products,Dressings,Creams
- End products
- Eclair filling,Hummus spread,Chocolate mousse,Bavarois dessert,Cake batter,Macarons,Pound cake,Lasagna sheets,Tomato sauce,Cheesecake filling,Tapenade,Croissant dough,Red velvet cake,Creamy dressing,Cupcake batter,Custard dessert,Quiche filling,Jelly topping,Vegetable soup,Buttercream frosting
- Steps before
- Mixing,Ingredient Preparation,Dough Preparation
- Steps after
- Baking,Decorating,Cooling,Packaging,Glazing
- Input ingredients
- liquids,semi-liquids,dough,solid products,water,oil,syrup,glaze,egg wash,fondant,chocolate,cream,(vegetable) cream,bavarois,mousses
- Output ingredients
- bakery products,pastries,cakes,bread,donuts,cupcakes,desserts,creams,muffins,yoghurts
- Market info
- Bakon is renowned for manufacturing high-quality industrial equipment tailored for the bakery sector, specializing in engineered-to-order solutions that enhance production efficiency and consistency across diverse baking operations globally.
- Accuracy
- ±0.5–2%
- Automation
- PLC-controlled
- Depositing volume
- 10 – 1100 ml
- Depositing speed
- Adjustable
- Working table height adjustment
- Manual,per 5 or 10 mm
- Compressed Air Usage
- 4 bar
- Cleaning method
- Easy cleaning
- Power supply
- Only compressed air
- Automation level
- Manual / PLC / Servo-driven
- Batch vs. continuous operation
- Batch / Inline
- Cleaning method
- Easy cleaning,Tool-free disassembly
- Foot lever operation
- Pneumatic height setting
- Product changeover
- Fast and easy
- Depositing speed
- Adjustable via touchscreen or rotary knob
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container size and shape
- Small to large
- Round,square,customized
- Product density
- Low to high density
- Machine footprint
- Compact tabletop to large floor-standing
- Tank size
- 35 or 65 liter hopper
- Discharge method
- Vertical,horizontal cut off nozzle
- Control panel type
- Full-colour touchscreen
- Table adjustability
- Manual adjustable per 5 or 10 mm
- Mobility
- Swivel casters for mobility
- Foot lever
- Pneumatic height setting
- Control panel type
- Full-colour touch screen
- Integration possibilities
- Stand-alone,in-line integration
- Adjustable Working Table
- Manual,Pneumatic
- Depositing nozzle options
- Dripless,Vertical,Horizontal
- Volume adjustment
- Manual scale,Touchscreen
- Depositor models
- BD9,BD7,BD5,BD3
- Custom accessories
- Handgun,Decorative heads
- Foot pedal operation
- Available
