Dense phase pneumatic conveying system for powder transfer

Ensure gentle and efficient material transport with minimal maintenance and energy consumption, while preserving product integrity and reducing wear on your pipeline infrastructure.

Transports and Preserves Quality of Bulk Materials

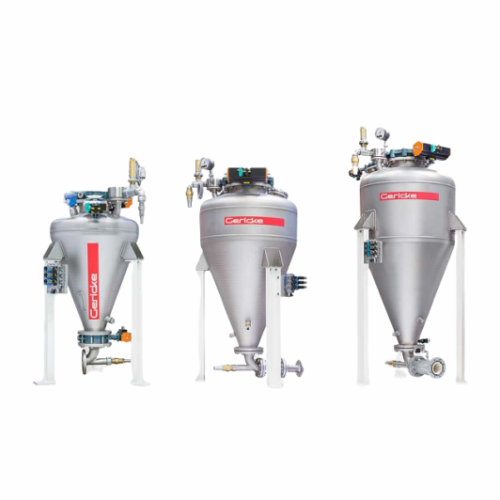

The Dense Phase Pneumatic Conveying System from Gericke is engineered to transport bulk materials over long distances while maintaining their integrity. This system utilizes pressure vessels to gently convey powders, granules, and pellets as a continuous layer or pulsed plug, minimizing changes in bulk density and particle size distribution. Ideal for industries ranging from food processing to pharmaceuticals, the system excels in transporting diverse end products like infant formula, ibuprofen API, and construction chemicals.

Capable of operating at pressures from 1 to 6 barg, this system supports efficient material handling over distances up to 500 meters with throughput capacities up to 150 m³/h. By eliminating rotating parts in pressure vessels, maintenance costs are reduced and the risk of contamination is minimized. The system’s gas and dust-tight design ensures superior energy efficiency due to high solids loading, resulting in smaller pipe diameters and lower gas consumption.

Gericke’s conveying solutions are available in carbon steel or stainless steel, meeting PED 2014/68/EC, ASME, and GB 150 standards. Integration is streamlined with a ready-to-use STP 61 pneumatic conveying controller and options for customizing to specific industry applications.

Benefits

  • Ensures product integrity by minimizing changes in bulk density and particle size.
  • Reduces maintenance costs with a non-rotating, dust-tight design.
  • Offers energy efficiency through high solids loading and reduced gas consumption.
  • Facilitates long-distance conveying up to 500 meters without compromising material quality.
  • Customizable for diverse industry needs, from pharmaceuticals to heavy industry.

General


Applications
Vitamins,Steel,Animal and aqua feed,Water treatment,Flue gas treatment,Lime and gypsum,Catalysts,Plastics and coatings,Battery production,Dairy,Chemicals,Fine chemicals,Noodles and rice,Glass,Beverages and coffee,Crop protection and fertilizers,Chocolate and confectionery,Biscuit and snacks,Cereals and cereal bars,Textured vegetable proteins,Salt and seasoning,Infant nutrition,Pet food,Paint and dyes,Flour and bakery,Flavours and fragrances,Detergents and soaps,Api manufacturing,Construction chemicals,Superabsorbents,Cement and fly ash
End products
Steel billets,Infant formula,Vitamin c tablets,Lithium-ion battery components,Potato chips,Fish feed,Basmati rice,Acrylic paints,Acetone,Solid perfumes,Epoxy coatings,Polyethylene pellets,Insulation foam,Granola bars,Protein isolates,Concrete additives,Bakery flour,Plasterboard,Instant coffee,Desalination chemicals,Dry pet food,Cornflakes,Pasta,Ibuprofen api,Milk powder,Resin fertilizers,Absorbent polymers,Table salt,Tempered glass sheets,Industrial detergents,Chocolate bars,Desulfurization agents,Automotive catalysts,Pulverized fly ash
Steps before
Silo Loading,Big-Bag Unloading,Mixer Loading,Batch Weighing
Steps after
Filling Lines,Process Reactor Loading,Full Discharge
Input ingredients
powders,granules,flakes,pellets,instant products,mixed products,sodium perborate
Output ingredients
bulk solids,conveyed materials,processed materials
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Pressure range
1–6 barg or more
Capacity
Up to 150 m3/h
Conveying distance
Up to 500 m or more
Gas velocity
15–25 m/s (DenseFlow),4–12 m/s (PulseFlow/PTA PL)
Volume size
20 l to 5,200 l
Material
Carbon steel or stainless steel
Gas consumption
Low (due to high solids loading)
Automation
Pneumatic conveying controller STP 61
Execution standards
PED 2014/68/EC,ASME,GB 150
Conveying method
Dense Phase

Operating Characteristics


Conveying method
Dense phase
Air velocity
4–25 m/s
Pressure range
1–6+ barg
Operation mode
Continuous / Batch
Material handling mode
Plug / Layer
Gas consumption
Low
Pipeline wear
Minimized
System tightness
Gas and dust tight
Distance capability
Up to 500 m or more
Capacity
Up to 150 m³/h

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Handling of fragile products
Yes

Product type Characteristics


Density/particle size
Varies depending on product type
Demixing prevention
Yes

Physical Characteristics


Available volumes
20 l to 5,200 l
Pressure range
1 barg to 6 barg or more
Pipe diameter
Smaller due to high solids loading

Custom Options


Pressure vessel material
Carbon steel / Stainless steel
Conveying system type
Dense Phase / PulseFlow PTA / PulseLine PTA PL
Control panel type
STP 61 pneumatic conveying controller
Gas type
Inert gas / Ambient air
Pipeline material
Customizable based on application needs
Pressure range
1 barg to 6 barg,or more
Available volumes
20 l to 5'200 l
