Clean-in-place system for diverse processing needs

Ensure the precision and consistency of your cleaning cycles with a robust system designed to maintain hygienic production environments across multiple product lines.

Cleans and Sanitizes Production Lines Efficiently

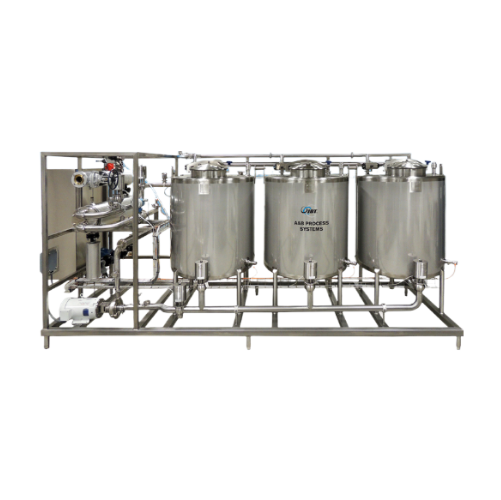

The READYGo™ CIP system from A&B Process Systems is a skid-mounted clean-in-place solution designed for efficient cleaning and sanitizing of production lines across industries including food and beverage, pharmaceuticals, and personal care. This system features a unique combination of hygienic centrifugal pumps, shell and tube heat exchangers, and precise instrumentation, allowing for reproducible cleaning cycles and ensuring product quality.

Its flexibility is evident with three flow rates, accommodating up to four tanks per flow, capable of integrating seamlessly into both batch and continuous operations. With user-configurable wash recipes and up to eight interlock inputs/outputs, it offers substantial automation for streamlined processes. The system’s energy efficiency is enhanced by an in-line heating mechanism and pre-insulated heat exchangers, promoting heat conservation. Fabricated from 304L stainless steel with 316L sanitary tubing, it resists corrosion, ideal for a range of liquids. The READYGo™ CIP conforms to industry standards and offers easy maintenance access, complying with regulatory requirements while supporting customization options for specific production needs.

Benefits

  • Ensures consistent hygiene with reliable, repeatable cleaning cycles.
  • Heat-conserving design reduces energy usage with pre-insulated components.
  • Seamlessly integrates into production lines for minimal disruption and efficient cleaning.
  • Customizable wash cycles enhance flexibility for diverse cleaning needs.
  • Built with corrosion-resistant materials for longevity in demanding environments.

General


Applications
Sauces,Bakery,Oils,Dairy,Seafood,Soups,Dairy alternatives,Seasonings,Juices,Tea,Personal care,Ready meals,Pet food,Baby food,Beverages,Confectionery,Meat,Coffee,Dressings,Poultry,Pharmaceutical
End products
Dog biscuits,Green tea,Vinaigrette,Infant formula,Chocolate truffles,Chicken broth,Chicken breast,Orange juice,Almond milk,Soy sauce,Cream cheese,Energy drinks,Croissants,Lasagna,Instant coffee,Olive oil,Cough syrup,Salmon fillet,Body lotion,Tomato ketchup
Steps before
Preparation,Mixing,Grinding,Injection,Portioning
Steps after
Filling,Sterilization,Packaging,Labeling
Input ingredients
Output ingredients
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Flow Rates
Three options
Number of Tanks
1-4
Tank Sizes
200,290,or 500 Gallon
Discharge Temperature
Up to 180°F
Heating Type
Steam heating
Material
304L SS Tanks with 316L SS sanitary tubing
Pumps
Hygienic centrifugal pumps
Instrumentation
Accurate instrumentation for precise monitoring
Automation
PLC/HMI technology (Allen Bradley 5069 CompactLogix)
Manway Access
Accessible tanks
Heat Exchanger
Pre-insulated shell and tube
Valve Type
Single seat valves

Operating Characteristics


Flow rates
3 options available
Number of tanks per flow rate
Up to 4 tanks
Batch vs. continuous operation
Batch
Heat exchanger type
Pre-insulated
Temperature monitoring
Yes
Immediate skid deployment
Yes,fits within standard trailers

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Skid-mounted design
Compact
Tank Sizes
200,290 or 500 Gallon
Number of Tanks
1-4
Frame mounted
Yes
Trailer compatibility
Fits standard domestic or international trailers
Tanks material
304L SS
Tubing material
316L SS sanitary tubing

Custom Options


Compact footprint
Skid-mounted,compact design
Control panel type
Latest PLC/HMI technology (Allen Bradley 5069 CompactLogix)
Heating system
Pre-insulated heat exchanger and steam lines
Tank Sizes
200,290 or 500 Gallon
Number of Tanks
1-4
Transport compatibility
Designed to fit within standard trailers
Chemical addition
Connection ports for chemical addition
