Chocolate tempering system for mould filling and vibrating

Ensure a flawless finish for chocolates and confections with a system that stabilizes cocoa butter crystals, enhancing sheen and texture while simplifying mold removal. Perfect for achieving consistently high-quality enrobed and filled products in your production line.

Tempers and Enrobes Chocolate Products Efficiently

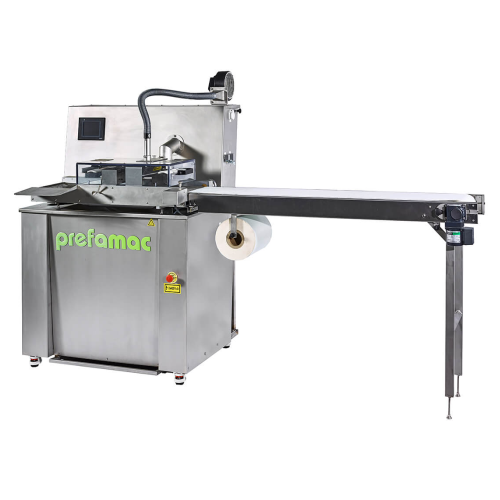

The CONTINUA 30/60 from Prefamac Chocolate Machines is an automatic tempering and enrobing system engineered to address the intricate needs of chocolate and confectionery production. Specially crafted for chocolatiers and confectionery manufacturers, it ensures precise tempering by stabilizing cocoa butter crystals, leading to glossy finishes and optimal texture for chocolate bars, filled molds, enrobed pralines, truffles, and biscuits. Available in 30 or 60-liter capacities, it integrates seamlessly into production lines with options for manual or automated filling and vibrating. The inclusion of a PLC system simplifies operation, allowing easy parameter adjustments and multiple language support, which streamlines the tempering process and enhances productivity. Built entirely from pearled stainless steel, it’s designed for durability and ease of maintenance, with features like a hermetic cooling group and a digital thermostat for precise temperature management. Customization options include enrober belts and dosing systems, providing flexibility to meet specific production requirements.

Benefits

  • Enhances product quality with stable crystal formation for a satin finish and easy mold release.
  • Increases production efficiency by integrating tempering, filling, vibrating, and enrobing processes.
  • Simplifies operation across global markets with a multilingual PLC system.
  • Reduces operational costs with energy-efficient heating and cooling mechanisms.
  • Offers flexibility in production with customizable settings and optional attachments for diverse confectionery applications.

General


Applications
Biscuits,Pralines,Confectionery,Chocolate,Truffles
End products
Enrobed truffles,Chocolate bars,Enrobed pralines,Enrobed biscuits,Filled chocolate moulds
Steps before
Chocolate Melting,Ingredient Mixing
Steps after
Chocolate Moulding,Cooling,Enrobing
Input ingredients
chocolate,cocoa butter,chocolate moulds
Output ingredients
tempered chocolate,enrobed pralines,truffles,biscuits
Market info
Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.

Technical Specifications


Capacity
15 kg,30 kg,60 kg
Cooling system
Hermetic cooling group
Heating method
Heating carpets with digital thermostat
Automation
PLC-controlled
Material
Pearled stainless steel
PLC Language Options
English,Spanish,French,Dutch,German
Dimensions
Continua 30
Continua 60
L 1140 mm,W 870 mm,H 1460 mm
Weight
Continua 30
Electricity
230V 1ph 50Hz,400V 3ph 50Hz,230V 3ph 60Hz
Vibration Table
Standard with separate motor

Operating Characteristics


Automation level
Manual / PLC
CIP/SIP
Manual cleaning
Batch vs. continuous operation
Batch operation
Operating languages
English,Spanish,French,Dutch,German
Cooling system
Hermetic cooling group
Heating control
Digital thermostat

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean with CIP/SIP
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Suitable for chocolate

Physical Characteristics


Machine Footprint
Continua 30
Machine Footprint
Continua 60
Machine Weight
Continua 30
Machine Weight
Continua 60
Tank Capacity
30 kg / 60 kg
Frame Material
Pearled Stainless Steel
Mobility
Frame on Castors

Custom Options


PLC control
Available
Language options
English,Spanish,French,Dutch,German
Dosing system for moulds
Quickfill (3×7,3×8,4×6,4×8 or tailor-made)
Enrober belt options
18/28 cm with paper take-off section
Enrober belt with truffle extension
18/28 cm with truffle table (90 or 150 cm)
Moulds scraper
Pneumatic
Color versions
Available for INSPIRE model
