Chocolate refiner and conche solution

Elevate your chocolate production with a versatile solution that seamlessly integrates pre-mixing, refining, and conching in one machine, ideal for crafting diverse chocolate products from sugar-free to vegan delights.

Refines, Mixes, and Conches Chocolate Components

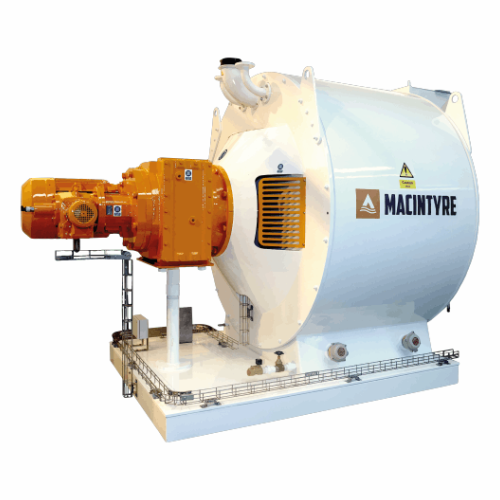

The MacIntyre Refiner/Conches from Hamburg Dresdner Maschinenfabriken is designed to seamlessly integrate mixing, refining, and conching processes in chocolate production. This versatile equipment is available in three configurations: Duplex, Universal, and Laboratory models, catering to diverse production needs from small batch to high-volume outputs. Its unique approach allows it to refine cocoa nibs into cocoa liquor, blend with ingredients like sugar or milk powder, and achieve precise fineness of up to 18 microns. Known for reducing moisture to under 0.5%, it caters to those producing sugar-free, vegan, and organic chocolates efficiently. With options for batch or continuous operations, the MacIntyre Refiner/Conches ensures minimal labor requirements and optimized flavor development. Enhanced cooling efficiency and a significant surface area in the Duplex model facilitate rapid volatile and moisture removal, making it ideal for artisanal and industrial chocolate making. The system is configurable to meet specific production requirements, ensuring streamlined integration into your existing production line.

Benefits

  • Streamlines production by combining multiple processes, enhancing operational efficiency.
  • Enables production of sugar-free and vegan chocolates, catering to diverse market demands.
  • Minimizes moisture content to improve shelf life and product quality.
  • Adapts to varying batch sizes, optimizing resource utilization across production scales.
  • Facilitates quick flavor development and refinement, enhancing end-product marketability.

General


Applications
Sugar substitutes,Confectionery,Free-from recipes,Cocoa liquor,Sweets,Cocoa nibs,Chocolate
End products
Cocoa butter,Dairy-free chocolate,Vegan chocolate,Artisan chocolate truffles,Dark chocolate bars,White chocolate bars,Sugar-free chocolate,Chocolate spreads,Milk chocolate bars,Keto chocolate products,Organic chocolate products
Steps before
Mixing,Pre-Refining
Steps after
Flavor Development,Conching
Input ingredients
cocoa nibs,sugar,milk powder,low-fat products,dry ingredients
Output ingredients
cocoa liquor,refined chocolate mixture,refined pre-mix,flavors
Market info
Hamburg Dresdner Maschinenfabriken GmbH is known for expertise in manufacturing industrial machines for the cocoa, chocolate, and confectionery industries, particularly focusing on roasting, grinding, and refining processes. They have a strong reputation for quality and innovation.

Technical Specifications


Machine Capacity
45–5000 kg
Main Drive Motor Power
1.5–75 kW
Net Weight
384–9713 kg
Electric Immersion
1–3 kW
Length
1362–4020 mm
Width
1086–2035 mm
Height
895–2497 mm
Moisture Reduction
<0.5%
Fineness Range
18 µm

Operating Characteristics


Working mechanism
Integrated refiner and conche
Integrated steps
Pre-mixer,refiner,and conche in one machine
Batch vs. continuous operation
Batch
Automation level
Minimal labor required
Moisture reduction capability
<0.5%
Fineness range
Adjustable between input fineness and 18 µm
Cooling efficiency
Enhanced due to double spider wheel
Thermal conductivity
Improved with dual arrangement
Volatile and moisture removal
Effective due to larger surface area
Flexibility
Suitable for a variety of recipes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity handling
Adjustable for thick products
Free-from recipes compatibility
Yes

Physical Characteristics


Machine Capacity
45 kg,500 kg,1250 kg,2000 kg,3000 kg,5000 kg
Main Drive Motor
1.5 kw to 75 kw
Power Assisted Motor
0.1 to 5.5 kw
Electric Immersion Heater
1 kw to 4 kw
Dimensions
Length
Net Weight
384 kg to 7135 kg
Fineness Range
Infinitely adjustable between input fineness and 18 µm
Operation Type
Batch
Cooling System
Thermal conductivity

Custom Options


Ease of operation
Minimal labour requirement
Integration options
All-in-one pre-mixer,refiner,and conche
