Blow-through rotary valves for pneumatic conveying

Optimize your pneumatic conveying systems with high-efficiency blow-through rotary valves, ensuring precise feeding and metering of powdery and granular materials for seamless production processes.

Feeds and Conveys Materials in Pneumatic Systems

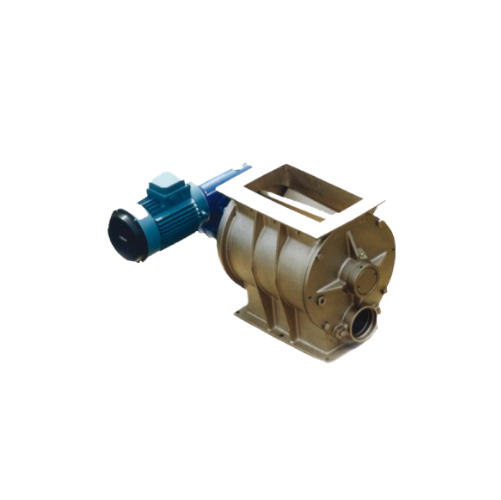

The Blow-Through Rotary Valves RVS from WAMGROUP are specifically designed for efficient integration into pneumatic conveying systems across various industries. These valves feature a robust cast iron or stainless steel casing and a horizontally mounted rotor with V-shaped compartments, enabling precise control and steady material feed. Suitable for conveying powders and granules like flour, sugar, and plastic pellets, the RVS valves manage differential pressures up to 0.8 bar (11.6 PSI), supporting high-speed and continuous operations. Offering a feed rate of 5 to 80 litres per revolution, they accommodate diverse processing needs through customizable drive units and rotation speeds. With options for ATEX compliance in Zone 22, the RVS valves ensure safety in explosive environments and are designed for easy access to internal components, simplifying maintenance and reducing downtime in demanding applications.

Benefits

  • Enhances material handling efficiency in pneumatic systems with precise feeding control.
  • Minimizes operational downtime with easy access and maintenance-friendly design.
  • Supports safe operation in hazardous areas with ATEX Zone 22 compliance.
  • Accommodates varying processing needs with customizable drive speeds.
  • Ensures longevity and performance in diverse environments with robust construction options.

General


Applications
Sugar processing,Rubber processing,Biscuit processing,Paint processing,Animal feed milling,Pharmaceuticals processing,Plastics processing,Cosmetics processing,Noodle making,Flour milling,Chocolate processing,Spices,Rice milling,Cocoa,Coffee processing,Pasta,Convenience food,Detergent processing,Resin processing,Varnish processing,Soap processing,Salt processing,Fertilizer processing
End products
Spaghetti,Nitrogen fertilizers,Animal feed pellets,Curry powder,Polished rice,Bar soap,Epoxy resin,Microwave meals,Rubber gaskets,Digestive biscuits,Laundry detergent powder,Granulated sugar,Ramen noodles,Acrylic paint,Ground coffee,Pain relief tablets,Table salt,Molded plastic components,Flour,Chocolate bars,Gloss varnish,Lipstick
Steps before
Grinding,Pulverizing,Blending,Screening,Mixing
Steps after
Conveying,Bagging,Filling,Metering,Dust Collecting
Input ingredients
powdery materials,granular materials
Output ingredients
materials in pneumatic conveying system
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Feed rate
5 ~ 80 litres per revolution
Material
Tubular cast iron or stainless steel
Maximum differential pressure
0.8 bar (11.6 PSI)
Drive type
Various drives for different rotation speeds
Rotor type
Horizontally mounted with V-shaped cross section compartments

Operating Characteristics


Batch vs. continuous operation
Continuous
Feeding method
Blow-through rotary
Process compatibility
Pneumatic conveying systems
Automation level
Manual / PLC / Automated
Maintenance access
Easy access to internal parts
Pressure handling
Maximum differential pressure 0.8 bar (11.6 PSI)
Rate of feed
5 ~ 80 litres per revolution
ATEX compliance
Available as ATEX version,Zone 22

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes,depending on material used
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Zone 22

Physical Characteristics


Machine Footprint
Compact
Material
Tubular cast iron or stainless steel casing
Rotor Shape
Horizontally mounted with oblique V-shaped compartments
Drive Unit
Various options for different rotation speeds
Discharge Method
Bottom outlet into an air stream
Design
Robust and compact
