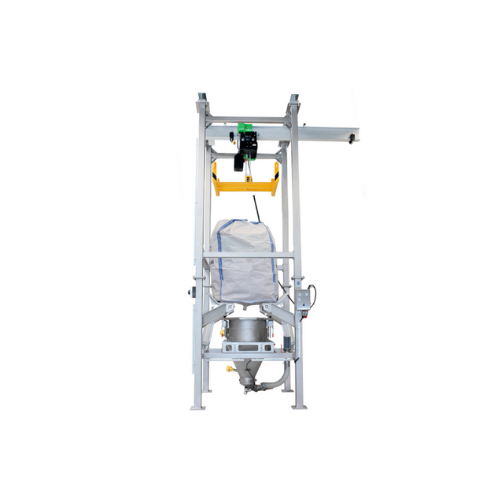

Big-bag unloading station for bulk materials

Facilitate seamless integration into your production line with efficient bulk material transfer, ensuring dust-free handling and precise discharge of challenging materials.

Facilitates Dust-Free Bulk Material Unloading

The BBU-1 Big-Bag Unloading Station from Volkmann is designed for seamless and dust-free integration into existing vacuum conveyor systems, tailored to handle up to 1,400 kg big-bags. This station excels in unloading various bulk materials, including powders and wet materials, ensuring contamination-free processes across multiple industries such as food, chemical, and pharmaceutical. With features like integrated massaging paddles and optional lump breakers, the BBU-1 supports the efficient transfer of difficult-to-flow products. The system is equipped with a filtration and dust recovery system to manage emissions during bag changes, and can be customized to meet local operational requirements. Options like integrated cranes and hoists or fork lift compatibility simplify loading. Constructed from high-grade materials to resist corrosion, it meets industry standards for safety and cleanliness, including compliance with ATEX specifications for explosion risk. Easy maintenance and customization options ensure it fits smoothly into your production workflow, offering reliable, manual or continuous operation.

Benefits

  • Ensures contamination-free processes with integrated dust recovery system.
  • Enhances material flow handling with adjustable massaging paddles.
  • Customizable design meets specific operational and local compliance requirements.
  • Facilitates easy loading and unloading, reducing manual labor efforts.
  • Complies with ATEX standards for safe operation in explosion-risk areas.

General


Applications
Product suspended in liquids,Wet materials,Food industry,Chemical industry,Bulk materials,Granulates,Powders,Pharmaceutical industry
End products
Polymers,Seasoning mixes,Dyes,Protein powders,Cocoa powder,Instant beverage mixes,Detergents,Sugar,Cosmetic powders,Active pharmaceutical ingredients (apis),Veterinary medicines,Nutraceuticals,Pigments used in paints,Ceramic powders,Flour,Slurry fertilizers,Chemical catalysts,Pigments
Steps before
Material Serving,Bag Loading,Unloading Preparation
Steps after
Dust Filtration,Product Transfer,Packaging,System Cleaning
Input ingredients
bulk materials,poor flowing products,big-bags,bags,smaller sacks,bins
Output ingredients
bulk materials,processed materials,dust-free products
Market info
Volkmann is known for manufacturing vacuum conveying systems, specializing in pneumatic conveying of bulk materials. Their reputation for innovative and reliable equipment solutions in various industries positions them as a trusted provider for engineered-to-order material handling systems.

Technical Specifications


Capacity
Big-bags up to 1,400 kg
Loading method
Fork lift / Integrated crane and hoist
Dust control
Dust-free connection and emptying
Filtration system
Integrated filtration and dust recovery system
Optional features
Lump breakers and material agitators
System configuration
Combined with bag rip-and-tip station

Operating Characteristics


Working mechanism
Vacuum conveyor system
Integrated steps
Dust-free connection and emptying
Automation level
Manual / PLC
CIP/SIP
Manual cleaning
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Big-Bag up to 1,400 kg
Bulk material compatibility
Powder,granulate,etc.
Material flowability
Poor flowing products

Physical Characteristics


Machine footprint
Modular
Bag size capacity
Up to 1,400 kg
Loading method
Fork lift / Integrated crane and hoist
Discharge method
Dust-free connection and emptying
Filtration system
Integrated filtration and dust recovery
Customization options
Massaging paddles,glove boxes

Custom Options


Modular design
Yes
Loading method
Fork lift / Integrated crane and hoist
Filtration system
Integrated filtration and dust recovery
Material handling support
Massaging paddles
Dust management
Low dust emission / Dust-free connection
Additional unloading options
Bags,smaller sacks,and bins
Contamination prevention
Dust-free operation
Integration
Customised for local demands and application requirements
