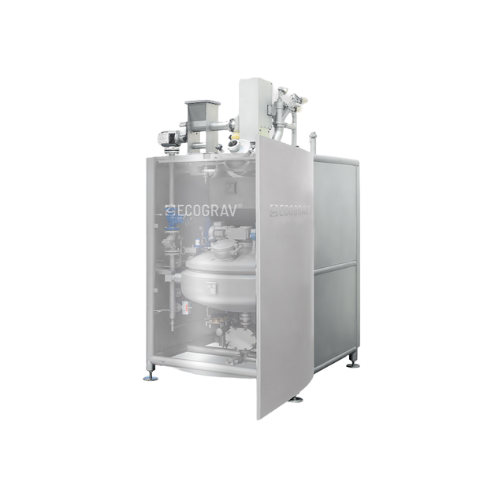

Batch weighing system for precise ingredient metering

Optimize your confectionery production with a system that reduces steam usage by over 50%, leveraging moisture in corn syrup to dissolve sugar efficiently and enhance energy savings.

Meters and Mixes Ingredients for Candy Production

The ECOGRAV® series by CHOCOTECH is a versatile batch weighing and dissolving system tailored for the confectionery industry. It employs a continuous pressure dissolver that effectively utilizes the moisture in glucose, cutting down steam consumption by over 50% for hard candies and 70% for fondant and chewy candies. Available in models ranging from Type 1.100 to Type 4.400, it supports throughputs from 1,100 to 4,400 kg/h at 90% dry substance, aligning with various production needs. Designed for seamless integration into existing lines, it is PLC-controlled for precision and reduced operational costs. Constructed with high-grade materials, it ensures durability and ease of cleaning. Whether you’re producing caramels, nougats, or laminated pastry, ECOGRAV® enhances your efficiency while supporting diverse confectionery applications.

Benefits

  • Achieves significant energy savings, using up to 70% less steam for confectionery production.
  • Decreases water consumption by leveraging glucose moisture for sugar dissolution.
  • Enhances production efficiency with high throughput capacity up to 4,400 kg/h.
  • Integrates seamlessly into existing lines with precise, PLC-controlled operations.
  • Supports diverse confectionery applications, catering to a broad range of sweet products.

General


Applications
Candy,Jelly,Brittle,Halva,Fondant,Sweets,Hard candy,Chewy candy,Foam,Lamination,Chocolate,Caramel
End products
Halva treats,Brittle candy,Marshmallows,Chocolate coatings,Hard boiled candies,Caramel squares,Jelly beans,Taffy,Nougat,Corn syrup candy,Laminated pastry sheets
Steps before
Purification,Grinding
Steps after
Cooking,Vacuuming,Caramelization,Crystallization,Aeration,Cooling,Forming,Tempering,Packing
Input ingredients
glucose,corn syrup,sugar
Output ingredients
dissolved sugar,hard candy,fondant,chewy candy,sugar solutions for bar manufacturing
Market info
CHOCOTECH is known for providing innovative solutions in the confectionery industry, specializing in machinery for processing and manufacturing chocolate, candies, and other sweets, with a reputation for precision engineering and tailored, high-quality equipment solutions.

Technical Specifications


Throughput
1100–4400 kg/h
Dry Substance Content
Up to 90%
Energy Savings
50%–70%
Batch Size
90% total solids
Type
Type 1.100 to Type 4.400
System Type
Batch Weighing System
Moisture Utilization
Uses glucose moisture for dissolving
Steam Savings
Over 50% for hard candy,70% for other solutions

Operating Characteristics


Working mechanism
Batch weighing with continuous pressure dissolver
Integrated steps
Metering and mixing of raw ingredients
Batch vs. continuous operation
Batch
CIP Principles
CIP capable
Energy efficiency
More than 50% steam savings
Automation level
PLC-controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Batch size
5–100 kg

Custom Options


Control panel type
HMI / Touchscreen
Batch size flexibility
Customizable
