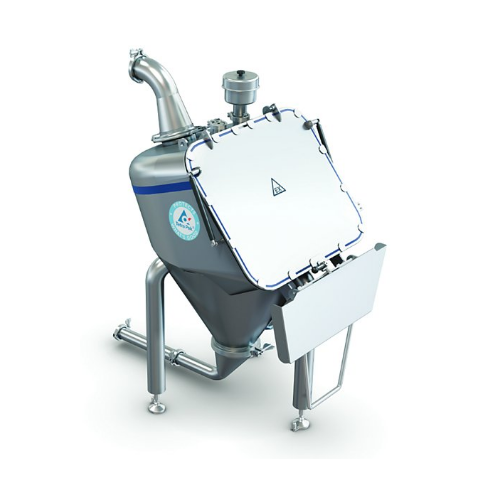

Bag tipping unit for Cip processes in powder handling

Ensure seamless powder handling and high hygiene standards in your production line with a unit designed for precise cleaning-in-place and efficient discharge, perfect for tackling allergen residue challenges.

Handles Tipping, Discharging, and CIP for Powders

The Tetra Pak® Bag Tipping Unit CIP is an essential component for food and beverage manufacturers, optimizing powder handling with integrated cleaning and dust control. This unit excels in industries like dairy and plant-based products, facilitating the hygienic processing of sensitive ingredients such as protein shakes and infant formula. Engineered for seamless integration, it features a dust extraction filter and an ergonomic design that simplifies operator interactions. The automatic Cleaning-in-Place (CIP) capability ensures minimal downtime, washing with up to 90°C water to eliminate allergen and flavor residues. Designed for 25 kg bags, the unit processes up to 3,000 kg/h, enhancing throughput in both manual and automatic operations. Its unique shape guarantees complete discharge and drainage, while the safety mechanisms and optional hot air dryer provide a hygienic, efficient, and user-friendly experience. Constructed from food-grade 316L stainless steel, it meets strict industry standards, and customization options are available to align with specific production needs.

Benefits

  • Enhances hygiene by automating cleaning within confined spaces, reducing contamination risks.
  • Increases operational efficiency by handling up to 3,000 kg/h with minimal user intervention.
  • Improves worker safety through integrated dust extraction and secure operating mechanisms.
  • Streamlines processes with versatile connectivity options for various mixing systems.
  • Supports sustainable operations with optional energy-efficient hot air drying.

General


Applications
Food,Sauces,Spreads,Soups,Nectar,Still drinks,Cheese,Plant-based products,Milk powder,Plant-based powder,Powder,Ice cream,Tomato products,Infant formula powder,Juice,Whey,Dairy
End products
Concentrated whey protein,Barbecue sauce,Protein shakes,Custard,Plant-based meal replacements,Tomato paste,Uht milk,Dehydrated coconut milk,Sports nutrition powders,Vitamin-enriched milk,Vegan creamers,Fruit smoothies,Instant soup mixes,Powdered baking mixes,Plant-based protein drinks,Lactose-free milk,Plant-based milk powder,Chocolate spreads,Flavored mousse desserts,Baby formula,Flavored yogurt,Flavored ice cream,Non-dairy cheese alternatives
Steps before
Batch powder and liquid mixing,Vacuum powder feeding,Incorporation of flavor and colorant
Steps after
Automatic drying,Dust extraction,Cleaning-in-Place (CIP)
Input ingredients
25 kg powder bags,powder ingredients,flavours,colourants,allergens
Output ingredients
mixed powder,prepared batches
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 3,000 kg/h
Storage volume
120 litres
Wet CIP temperature
Up to 90°C
Powder bag size
25 kg bags
Cleaning method
Wet CIP
Material
316L stainless steel
Table height
87 cm
Automation
Automatic door lock during CIP

Operating Characteristics


Working mechanism
Batch or Inline
Integrated steps
Powder tipping,dust extraction,CIP
CIP principles
Wet CIP with spray ball
Batch vs. continuous operation
Batch
Automation level
PLC
Changeover time
Not specified
Cleaning method
CIP

Material Compatibility


Corrosion resistance
Food-grade 316L stainless steel
Biological compatibility
Food-safe materials
Cleanability
Built-in Wet CIP system
Temperature resistance
Up to 90°C

Physical Characteristics


Shape
Unique shape ensures powder flow and liquid drainage
Material
Food-grade 316L stainless steel
Discharge method
Flexible discharge with choice of downstream connections
Height
Ergonomic table height of 87 cm
Storage Volume
120 litres
Capacity
Up to 3,000 kg/h

Custom Options


Unique shape
Sloped surfaces for powder flow
Door design
Automatic lock,foldable
