Vacuum mixer for liquids and semi-solids
Achieve precise mixing and homogenization of liquid and semi-solid formulations with this vacuum mixer, ensuring stable emulsions and optimal process control in demanding production environments.
Mixes and Reacts Liquids and Semi-Solids

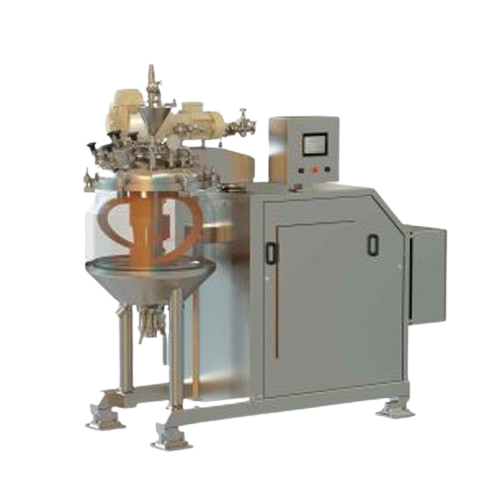

The BACHMIX L from Bachiller is a versatile vacuum mixer and reactor designed for liquids and semi-solids, offering a comprehensive solution for processing in the pharmaceutical, cosmetics, and food industries. Featuring a unique combination of a slow anchor stirrer and high-shear rotor-stator emulsifier, it ensures fine emulsions and stable mixing even with medium viscosity products. This equipment accommodates customizable batch sizes from 150L to 1,000L, all controlled through a sophisticated PLC system with a user-friendly touch screen interface, ensuring precise and repeatable processes.
Ideal for applications requiring emulsification, homogenization, and vacuum processing, the BACHMIX L handles the production of products such as sunscreens, antibiotic formulations, and cosmetic creams efficiently. Engineered for versatility, it operates under vacuum and pressure, minimizing post-processing de-aeration and improving product consistency. The equipment conforms to cGMP and FDA standards, making it suitable for regulated industries, and is available with features like sanitary design, CIP/SIP readiness, and ATEX compliance for hazardous environments. The integration of a heating/cooling jacket enhances thermal management, reducing cycle times and energy consumption, while the robust stainless steel construction provides durability, corrosion resistance, and an easy-clean surface to maintain hygiene and minimize downtime.
Benefits
- Enhances product consistency with precise vacuum and pressure control.
- Streamlines operations and reduces labor costs through automated PLC interface.
- Minimizes cycle times with efficient thermal management via integrated heating/cooling jacket.
- Ensures regulatory compliance with cGMP and FDA standards for pharmaceutical and food industries.
- Supports versatile batch processing, adaptable to diverse production needs.
- Applications
- Vitamins, Sauces, Gels, Alkaline batteries, Antibiotics, Cosmetics, Pigments, Sweeteners, Food, Polymers, Fine chemicals, Resins, Baby food, Creams, Pharmaceuticals, Suppositories, Essences and flavors, Bio cosmetics, Toothpastes, Adhesives, Emulsions, Diet food
- End products
- Chocolate syrup, Orange essence, Organic face serum, Low-calorie sweetener packs, Anti-aging night cream, Baby formula, Sunscreen lotion, Fluoride toothpaste, Vanilla extract, Antacid formulations, Fish oil capsules, Moisturizing facial emulsion, Glycerin suppositories, Lightweight hair gel, Fat-free yogurt, Antibacterial ointment
- Steps before
- Purification, Drying, Homogenization, Pre-mixing, Ingredient blending
- Steps after
- Sterilization, Filling, Packaging, Cooling, Labeling
- Input ingredients
- liquids, semi-solids, ingredients for cosmetics, pharmaceutical components, food additives, fine chemicals, solids, emulsifiers, temperature-sensitive materials
- Output ingredients
- homogenized products, emulsified products, cosmetics, pharmaceutical products, food products, fine chemical products, creams, gels, syrups, emulsions, dispersions
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Capacity
- 150–1, 000 L
- Working volume
- 20%–100% of capacity
- Operating pressure
- Atmospheric to 3 bar(g)
- Operating temperature
- Up to 200°C
- Automation
- PLC-controlled with touch screen interface
- Mixing tools
- Coaxial with independent control
- Anchor rotation
- Bi-directional
- Shear agitator
- High shear Rotor Stator
- Heating/Cooling
- Jacket with independent unit
- Thermal insulation
- Welded stainless steel
- Compliance
- ASME VIII div.1, AD-2000, EN-13445
- Surface finish
- Mirror polished Ra ≤ 0.6 µm
- CE marking
- Yes, Safety for Machinery Directive 2006/42/CE
- Optional ATEX zone version
- Available
- Batch vs. continuous operation
- Batch
- Automation level
- PLC with color touch screen interface
- Control of process parameters
- Stirring speeds, temperature, pressure
- Pressure operation
- Avoids final de-aeration of the product
- Integration of solids and liquids
- Integrated inlet
- Lid operation
- Lifting lid with manual closing system
- Mixing operation
- Anchor and Rotor Stator emulsifier
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Viscosity range
- Medium viscosity
- Foaming tendency
- Low to medium
- Heat sensitivity
- Up to 200º C
- Pressure range
- Atmospheric to 3 bar(g)
- Capacity
- 150L to 1, 000L
- Product type
- Liquids and semi-solids
- Sanitary design
- cGMP, validatable FDA
- Machine footprint
- Compact
- Tank shape
- Cylindrical
- Tank size
- 150L - 1, 000L
- Feed/discharge method
- Integrated inlet of solids and liquids
- Material
- Stainless steel
- Internal finish
- Mirror polished Ra ≤ 0.6 µm
- Lid
- Lifting lid with manual closing system
- Heating/Cooling jacket
- Yes
- Thermal insulation
- Welded protection
- Control panel type
- PLC control system with color touch screen interface
- Lid type
- Lifting lid with manual closing system
- Mixing tools
- Coaxial mixing tools independently controlled
- Integration possibilities
- Auxiliary equipment integrated in the workbench
- Rotor Stator configuration
- High shear Rotor Stator agitator
