Tablet counting solution for pharmaceutical industry

Maximize dosing precision and reduce miscounts in high-speed pharmaceutical operations with advanced object detection and adaptive digital control.

Counts and Doses Tablets and Capsules

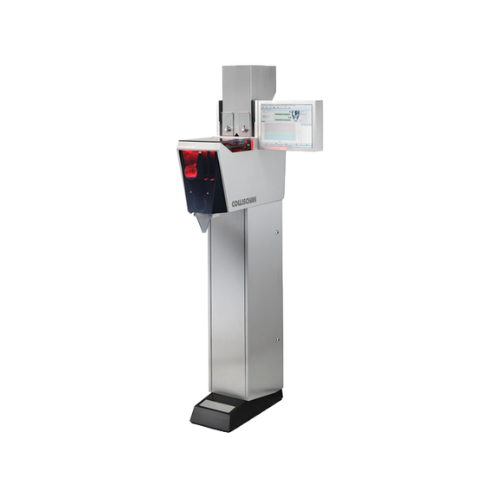

The Multicount 60 from Collischan GmbH & Co. KG is a cutting-edge counting machine designed for pharmaceutical and food industries. It excels in accurate counting and dosing of tablets, capsules, and granules, reducing errors with its advanced object detection system. Operating with a remarkable throughput of up to 60 dosings per minute per counting head, it ensures high-speed and continuous production.

Featuring a digital adaptive control algorithm, the Multicount 60 maintains optimal vibration feeder speed and permanently adjusts based on flow behavior and output demands. This automated system is easily integrated with management systems like SAP or Oracle, facilitating seamless data management and operational efficiency.

Built to meet stringent GMP design standards, the Multicount 60 supports easy and fast cleaning processes, ensuring compliance with pharmaceutical regulations. Its intuitive 15-inch touch display enhances user interaction, offering options such as 21 Part 11 compliance for secure data handling.

Engineered for reliability and precision, the machine adapts effortlessly to different product sizes and formats, making it suitable for a variety of applications, including pain relief tablets, multivitamins, and protein granules. With modular counting heads, it offers scalability and flexibility for expanding production lines.

Benefits

  • Enhances accuracy and minimizes miscounts with advanced object detection technology.
  • Increases production efficiency with high-speed dosing of up to 60 dosings per minute per counting head.
  • Simplifies cleaning and reduces downtime with GMP-compliant design.
  • Seamlessly integrates with enterprise systems like SAP or Oracle for improved operational management.
  • Adapts quickly to different product sizes, enhancing flexibility for diverse production requirements.

General


Applications
Pharmaceutical tablets,Dragees,Granules,Sweets,Powder,Tablets,Capsules
End products
Instant drink powder,Sugar-coated pills,Herbal supplement capsules,Protein granules,Multivitamin tablets,Cough syrup tablets,Effervescent tablets,Vitamin c capsules,Chocolate dragees,Pain relief tablets
Steps before
Mixing,Formulation,Blending,Sieving
Steps after
Packaging,Quality Control,Labeling,Storage
Input ingredients
tablets,dragees,capsules
Output ingredients
counted tablets,counted dragees,counted capsules
Market info

Technical Specifications


Speed
Up to 60 dosings/min per counting head
Capacity
100 counts per dosing
Automation
Self-optimising control
Object Detection
Camera system
Output Increase
2 to 3 times by multiplying counting heads
User Interface
15” touch display
Data Connectivity
USB stick / Ethernet
Compliance Option
21 Part 11 compliance
Integration
SAP or Oracle management system
Cleaning Time
Reduced due to fewer contact parts

Operating Characteristics


Automation level
Self-optimising control
Cleaning method
Easy and fast cleaning
Changeover time
Automatically performed by machine
Batch vs. continuous operation
Batch
Line integration
Easy integration into existing lines

Material Compatibility


Cleanability
Easy and fast cleaning

Physical Characteristics


Machine footprint
Compact design
Compact footprint
Extraordinary compact device
Control panel type
15” touch display
Component weight
Lightweight contact parts

Custom Options


Control panel type
15” touch display
Integration possibilities
SAP / Oracle
Compact footprint
Yes,with fewer contact parts
Object detection system
Camera-based detection
