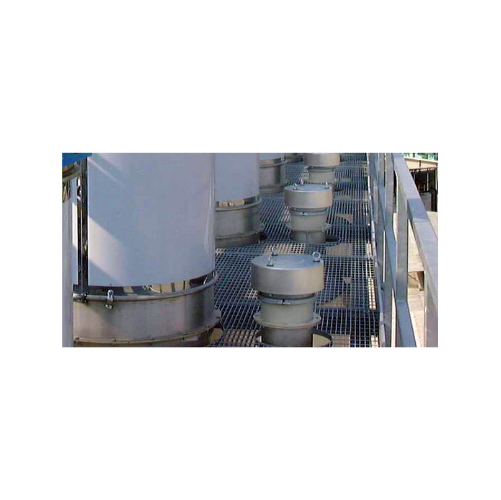

Spring-loaded pressure relief valves for silo overfill protection

Ensure safety and prevent costly overfills with pressure relief valves that provide reliable, instantaneous response to abnormal silo pressures, safeguarding both structures and valuable materials during critical operations.

Regulates Pressure and Provides Overfill Protection

The Spring-Loaded Pressure Relief Valves VCP, brought to you by WAMGROUP, are engineered specifically for robust silo safety across various industries. Designed with a durable cylindrical casing and helical spring mechanism, these valves respond instantaneously to pressure changes, ensuring structural integrity by efficiently regulating excess or suction pressure. Ideal for applications ranging from ready-mix concrete and asphalt mixing to wastewater treatment and food processing, these valves are integral in producing treated wastewater, precast concrete slabs, asphalt mixtures, and processed food products.

With a flow rate capacity of up to 13,000 m³/h, they accommodate significant throughput demands. The VCP series is built for easy integration into existing production lines, featuring a lightweight design for effortless handling and quick installation. Fabricated in painted carbon steel or 304 stainless steel, they offer excellent corrosion resistance and are complemented by a stainless steel weather protection cover. These valves also comply with European Regulation (EC) No. 1935/2004 for food industry applications and offer optional ATEX certification.

Maintenance is straightforward with easily accessible components, while the option for inductive sensors enhances safety monitoring. With preset values for negative and excess pressure, the VCP valves are customizable to meet specific operational requirements, ensuring optimal silo protection and operational efficiency.

Benefits

  • Protects silo integrity by rapidly adjusting to pressure changes.
  • Facilitates diverse industry integration with customizable pressure settings.
  • Enhances operational safety with optional inductive sensor configuration.
  • Minimizes installation and maintenance time due to compact, lightweight design.
  • Supports regulatory compliance for food safety and explosive environments.

General


Applications
Sugar processing,Asphalt mixing,Ready-mix concrete production,Biscuit processing,Roof tile production,Rubber processing,Pesticide processing,Paint processing,Drymix building materials processing,Animal feed milling,Plastics processing,Cosmetics processing,Iron and steel mills,Noodle making,Flour milling,Brick,Spices,Chocolate processing,Rice milling,Ceramic production,Coffee processing,Cocoa,Cement processing,Pasta,Convenience food,Pet food,Detergent processing,Resin processing,Varnish processing,Soap processing,Foundries,Precast concrete production,Waste water treatment,Lime processing,Gypsum processing,Salt processing,Minerals processing,Fertilizer processing,Coking plants
End products
Biscuits,Pelleted animal feed,Dog kibble,Noodles,Wheat flour,Roof tiles,Hydrated lime,White rice,Rubber sheets,Resin components,Cement blocks,Processed cocoa,Steel beams,Pesticide powder,Ceramic tiles,Cast metal parts,Processed coke,Cosmetics lotion,Varnishes,Processed minerals,Roasted coffee beans,Plasterboard,Plastic pellets,Ground spices,Ready meals,Liquid detergent,Granulated sugar,Precast concrete slabs,Clay bricks,Paints,Dry concrete mix,Fertilizer granules,Table salt,Treated wastewater,Chocolate bars,Asphalt mixtures,Soap bars
Steps before
Material Storage,Silo Filling,Level Monitoring
Steps after
Pressure Monitoring,Pressure Adjustment,System Inspection
Input ingredients
silo contents,negative pressure air,excess pressure air,environmental air
Output ingredients
relieved pressure,escaped air,pressure-balanced air
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Flow rate
up to 13,000 m3/h (7,650 cfm)
Material
Painted carbon steel or 304 stainless steel casing
Pressure range
Maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
Size
Two sizes available

Operating Characteristics


Working mechanism
Helical springs with spring-loaded lids
Pressure control
Preset for max negative pressure of -0.005 bar and max excess pressure of 0.05 bar
Design type
Lightweight and compact dimensions
Maintenance requirement
Quick maintenance
Installation ease
Easy to fit
Operation type
Manual / Automatic

Material Compatibility


Biological compatibility
Compliant with European Regulation (EC) No. 1935/2004
Corrosive resistance (e.g. acids)
Stainless steel casing
Cleanability
Easy to maintain
Abrasion resistance
Carbon steel casing options

Product type Characteristics


Food industry compliance
Yes

Physical Characteristics


Compact footprint
Lightweight design
Material
Painted carbon steel or 304 stainless steel
Casing shape
Cylindrical
Flow rate
Up to 13,000 m3/h (7,650 cfm)
Weather protection
Stainless steel cover
Pressure rating
Maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
Installation type
Easy to fit with bottom flange

Custom Options


Material Options
Painted carbon steel or 304 stainless steel
Weather Protection Cover
Stainless steel
Additional Settings
Optionally different pressure settings available
Inspection Hatch
Available
Inductive Sensors
Available
Bird Net
Available
