Scraped surface heat exchanger for viscous liquids

Optimize heating and cooling of viscous liquids efficiently with continuous processing, ensuring consistency and preventing air entrapment, suitable for diverse product formulations.

Heats and Cools Viscous Liquids Efficiently

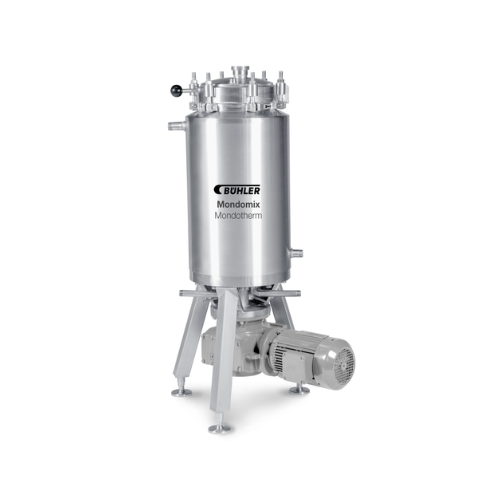

The Mondomix Mondotherm from Bühler Group is a versatile scraped surface heat exchanger designed for continuous operation in processing lines dealing with viscous or particle-laden liquids. Its vertical design minimizes air entrapment and reduces the footprint, allowing easy integration into existing setups. Engineered with stainless steel contact surfaces, it maintains high hygienic standards with CIP (Clean-In-Place) capability for efficient cleaning. Ideal for applications across food, confectionery, and dairy industries, the Mondomix Mondotherm efficiently heats and cools products like chocolate ganache, cream cheese, and plant-based meat alternatives, ensuring optimal product viscosity. Configurable for various throughput requirements, it offers mobile unit flexibility, high-speed operations, and low maintenance, catering to diverse needs from food manufacturers to cosmetic processors.

Benefits

  • Optimizes process efficiency with continuous temperature control for viscous products.
  • Reduces production space requirements thanks to a compact vertical design.
  • Ensures high product safety with hygienic, stainless steel construction and CIP capability.
  • Provides flexible installation with mobile unit design, eliminating the need for permanent fixtures.
  • Minimizes air entrapment, improving product consistency and quality.

General


Applications
Snacks,Grain,Chocolate,Dairy,Pulses,Paddy,Viscous liquids,Spices,Fat creams,Cocoa,Animal feed,Alternative proteins,Pasta,Pet food,Nuts,Food ingredients,Rice,Dried fruits,Baked goods,Oilseeds,Wheat,Confectionery,Coffee,Cereals,Vegetables,Dairy products
End products
Caramel sauce,Plant-based meat alternatives,Dried fruit slices,Wheat flour,Peanut butter,Animal feed pellets,Parboiled rice,Chocolate ganache,Protein bars,Cocoa butter,Granola bars,Cream cheese,Yogurt,Cooked rice,Canned vegetables,Grain syrup,Chocolate spread,Pasta dough,Coffee creamer,Bread dough,Nut pastes,Curry paste,Vegetable oils
Steps before
Emulsification,Mixing,Blending,Pumping
Steps after
Cooling,Filling,Packing,Storage
Input ingredients
viscous liquids,liquids containing particles,raw material,fat creams
Output ingredients
heated viscous creams,cooled viscous creams,end product
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Heating capability
Continuous heating of viscous liquids
Cooling capability
Continuous cooling of viscous liquids
Scraping mechanism
Continuous scraping
Product flow direction
Bottom to top
Cleaning method
CIP (Cleaning-In-Place)
Installation
Mobile unit,no platform needed
Material construction
Stainless steel
Hygiene standards
Food safe construction

Operating Characteristics


Working mechanism
Scraped surface heat exchange
Flow direction
Bottom to top
Operation type
Continuous
Vertical design
Space-saving
Cleaning process
CIP (Clean-In-Place)
Installation flexibility
Mobile unit,no platform needed

Material Compatibility


Biological compatibility
Food grade materials
Cleanability
Stainless steel surfaces
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Handles viscous liquids and particles

Product type Characteristics


Viscosity
High
Heat sensitivity
Yes
Particle content
Yes
Foaming
No

Physical Characteristics


Machine footprint
Compact design
Installation setup
Mobile unit with three stainless steel legs
Vertical design
Yes,product moves from bottom to top
Construction material
Stainless steel
Surface contact cleanliness
High hygienic standards
Cleaning method
CIP (Clean-In-Place)
Discharge method
Top exit

Custom Options


Control panel type
PLC-controlled
Integration possibilities
SCADA / HMI
Mobile unit installation
Three stainless steel legs
Vertical design
Space-saving
Cleaning system
Automated CIP (Cleaning in Place)
