Pressure monitoring solution for dosing processes

Optimize your production line by ensuring precise pressure monitoring, essential for maintaining quality and preventing errors in dosing processes.

Monitors and Analyzes Dosing System Pressures

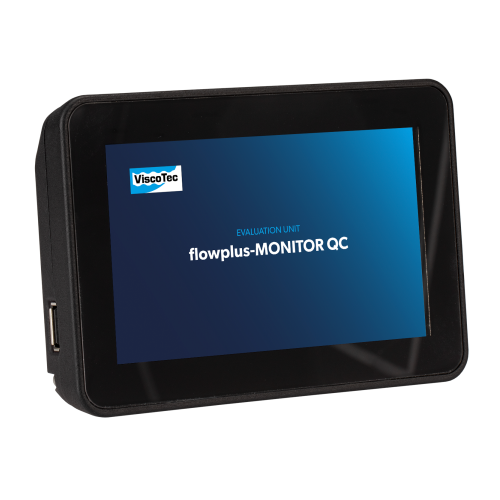

The flowplus-MONITOR QC from ViscoTec is an innovative pressure analysis unit specifically crafted for critical monitoring and evaluation in dosing systems. Its unique dual-channel design allows for flexible usage, capable of monitoring both 1-component and 2-component systems. This equipment excels in industries such as pharmaceuticals, automotive, and electronics, where precision in dosing is paramount. The flowplus-MONITOR QC is engineered to seamlessly integrate into existing lines with its simple Plug & Play setup and 15-pin sub-D interface for connection to higher-level systems.

By processing voltage signals between 0 and 10 V, the device utilizes flowplus16 and flowplus-SPT M6 sensors to provide accurate pressure measurements within 0-16 bar and 0-40 bar ranges, respectively. The intuitive 5” color touch display simplifies operation, showcasing pressure signals and limit curves in a single view with detailed parametrization options. This functionality not only aids in identifying air inclusions and blockages but also enables precise evaluation against preset limit curves.

Designed with a temperature operating range of +10°C to +40°C and protection class IP20, the flowplus-MONITOR QC is adaptable to various operational environments. Whether mounted on a pedestal or customized using bracket thread holes, this unit ensures robust quality assurance for stand-alone or continuous operations. The previous flowscreen analysis system’s successor, the flowplus-MONITOR QC, brings enhanced accuracy and reliability to your production processes.

Benefits

  • Enhances production accuracy by detecting air inclusions and blockages in real-time.
  • Reduces setup time with user-friendly Plug & Play installation.
  • Improves operational consistency through precise pressure monitoring for seamless integration.
  • Facilitates regulatory compliance with reliable data export and documentation.
  • Increases equipment adaptability with flexible mounting options to fit diverse production environments.

General


Applications
Food,Pharmaceuticals,E-mobility,3d print heads,Emptying systems,Dosing systems,Preparing systems,Supplying systems,Cosmetics,Microdispenser,Dental,Dosing pumps,Medical technology,Electronics,Filling pumps
End products
Steps before
Purification,Material Feeding,Homogenization
Steps after
Quality Assurance,Data Analysis,Packing
Input ingredients
1-component systems,2-component systems,pressure signals,voltage signals,inlet pressure,dosing pressure
Output ingredients
measurement values,evaluated data,error-free component production,pressure signal evaluations,detected air inclusions,recognized blocked dosing needles
Market info
Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.

Technical Specifications


Pressure Measurement Range
0-16 bar (flowplus16)
Pressure Measurement Range
0-40 bar (flowplus-SPT M6)
Voltage Signal Processing
0-10 V
Display
5” color touch display
Operating Temperature Range
+10°C to +40°C
Protection Class
IP20
Interface Type
15-pin sub-D interface,USB
Connections
M8 flange sockets
Setup Type
Plug,Play

Operating Characteristics


Automation level
Manual / PLC / SCADA
Temperature range
+10°C to +40°C
Installation method
Pedestal or bracket mounted
Pressure monitoring
0–16 bar / 0–40 bar
Interfacing method
15-pin sub-D interface,USB
Start-up method
Plug,Play
User interface
5” color touch display
Protection class
IP20

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Control panel type
Touchscreen
Discharge method
Standardized M8 flange sockets

Custom Options


Control panel type
Touch display
Integration possibilities
15-pin sub-D interface,USB interface
Mounting options
Pedestal or brackets
Value range switchability
0-16 bar / 0-40 bar
Sensors compatibility
flowplus16,flowplus-SPT M6
