Pilot plant for ice cream production

Optimize your ice cream production with a flexible pilot plant that seamlessly integrates processes from mixing to extrusion, enabling precise control and experimentation for diverse dessert creations.

Mixes, Freezes, and Moulds Ice Cream Products

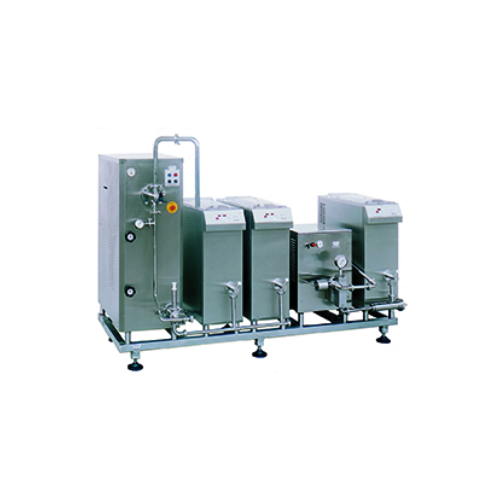

The K60 and K120 pilot plants from Catta 27 are engineered to streamline the development and semi-industrial production of ice cream and desserts. These versatile systems mix, freeze, and mold various products, including ice cream cups, cones, and sticks. With cycle production capacities of 200 and 300 liters respectively, they offer tailored solutions for both small-scale R&D and larger production environments. Integrated PLC controls enable precise management of all processes, from mixing to hardening, ensuring consistency across batches. The equipment utilizes an R 404A and R 507 refrigerant system, optimized for energy efficiency and environmental compliance. Built to withstand demanding production schedules, the K60 and K120 feature robust construction in corrosion-resistant materials. Maintenance is straightforward with easily accessible components, and the entire system can be configured to meet specific operational needs, backed by Catta 27’s expert engineering support.

Benefits

  • Enhances production efficiency with precise control over mixing, freezing, and molding processes.
  • Supports diverse product development with a broad range of ice cream and dessert applications.
  • Reduces energy usage through optimized refrigerant systems for cost-effective operation.
  • Facilitates seamless integration into existing production lines with PLC-controlled processes.
  • Minimizes maintenance downtime with accessible design and corrosion-resistant materials.

General


Applications
Tartufo,Lollies,Sweets,Candy bars,Desserts,Cakes,Ice cream
End products
Stick ice-cream,Stakancic,Water-ice lolly,Ice cream cups,Ice cream tubs,Water-ice push-up,Ice cream cones,Bon bons,Ball cones,Extruded stick ice-cream,Ice cream sandwiches,Tartufo desserts,Ice cream cakes
Steps before
Mixing Ingredients,Homogenization,Pasteurization
Steps after
Filling,Moulding,Extrusion,Hardening,Packaging
Input ingredients
milk,cream,sugar,flavorings,stabilizers
Output ingredients
ice cream,water-ice lolly,extruded stick ice-cream,sandwich ice cream,bon bons,candy bars,ice cream cakes,tartufo,desserts
Market info
Catta 27 is known for manufacturing high-quality engineered-to-order (ETO) industrial equipment, specializing in customized solutions for various industries. Renowned for innovation and reliability, Catta 27 delivers precise, tailored machinery to meet complex client specifications efficiently.

Technical Specifications


Cycle Production (K60)
200 l
Total Power (K60)
23 kW
Refrigerant Fluid
R 404A / R 507
Electrical Features
400/3/50 V/Ph/Hz
Compressed Air Consumption
60 Nl/min at 6 bar
Weight (K60)
1,600 kg
Dimensions (K60)
2,485 x 1,300 x 1,300 mm
Cycle Production (K120)
300 l
Total Power (K120)
40 kW
Weight (K120)
2,200 kg
Dimensions (K120)
3,300 x 1,500 x 1,600 mm

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual / PLC
Cleaning method
CIP / Manual
Condensation method
Water
Refrigerant fluid type
R 404A / R 507

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Low to high viscosity
Heat sensitivity
Sensitive to heat
Foaming
Non-foaming
Container size and shape
Cups,Cones,Tubs,Sticks
Refrigerant fluid type
R 404A,R 507
Cycle production volume
200L,300L

Physical Characteristics


Machine footprint
K60
K120
3,300x1,500x1,600 mm
Weight
K60
K120
2,200 kg
Condensation
Water
Refrigerant Fluid
R 404A,R 507

Custom Options


Condensation type
Water
Refrigerant Fluid
R 404A / R 507
