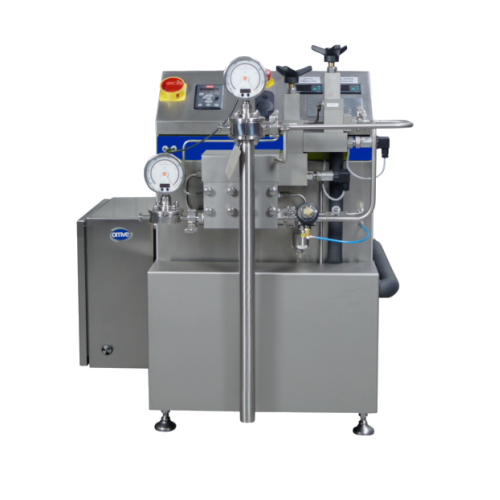

Pilot homogenizer for high-pressure inline homogenization

Achieve precise homogenization and emulsification across various liquid products with high-pressure efficiency, ensuring optimal consistency and quality in your continuous processing line.

Homogenizes and Emulsifies Liquid Products

The HP303 Pilot Homogenizers from OMVE is a high-pressure inline solution expertly designed for food and beverage manufacturers seeking uniform product consistency and stability. Equipped with dual-stage homogenization valves and three plungers, it minimizes pulsation while ensuring precise emulsification and homogenization. With capacities ranging from 30L/h to 500L/h, the HP303 is perfectly suited for pilot operations.

This equipment excels in processing dairy, plant-based drinks, soups, and nutraceuticals, delivering tailored solutions across various liquid products like milk, yogurt, olive oil, and protein shakes. Full automation is facilitated by integration with HTST-UHT systems, providing seamless flow-control and temperature monitoring, essential for maintaining product quality.

OMVE’s HP303 is built for regulatory compliance, adhering to 3A standards, and utilizing FDA-approved elastomers. It supports CIP and SIP processes, ensuring rapid and effective cleaning. Whether you’re developing ice creams or crafting artisanal spirits, the HP303 offers the reliability and precision needed in high-pressure homogenization.

Benefits

  • Enhances product consistency and quality through precise high-pressure homogenization.
  • Minimizes production disturbances with reduced pulsation and optimized flow-control.
  • Streamlines compliance with FDA-approved materials and 3A standard adherence.
  • Lowers operational costs by integrating with HTST-UHT systems for automated monitoring.
  • Facilitates rapid, contamination-free cleaning with CIP and SIP readiness.

General


Applications
Soups,Alcoholic drinks,Sauces,Nutraceuticals,Fats,Still drinks,Oils,Plant-based,Liquid products,Carbonated drinks,Margarine,Ice creams,Dairy
End products
Cream,Coconut milk,Protein shakes,Spirits,Soft drinks,Beer,Wine,Almond milk,Sparkling water,Ice cream,Vitamin drinks,Yogurt,Tomato sauce,Fruit juices,Olive oil,Nutritional supplements,Milk,Salad dressings,Soy milk,Butter,Gelato,Sorbet,Soup bases
Steps before
Mixing,Pasteurization,Deaeration
Steps after
Cooling,Sterilization,Packaging
Input ingredients
ingredients,yogurts,still drinks,soft drinks,margarine,liquid products,plant-based,dairy,fats,oils,carbonated drinks,ice creams,nutraceuticals,alcoholic drinks,soups,sauces
Output ingredients
homogenized products,emulsified products,high-pressure homogenized output
Market info
OMVE is known for manufacturing pilot and small-scale processing equipment for the food and beverage industry, specializing in pasteurization, carbonation, fermentation, and homogenization systems, with a strong reputation for innovation and quality in engineered-to-order solutions.

Technical Specifications


Capacity
30L/h to 500L/h
Operating Pressure
High-pressure
Number of Plungers
Three
Homogenization Valves
Two-stage
Automation
High level of automation
CIP/SIP
CIP and SIP ready
Integrated Systems
Compatible with HTST-UHT systems
Cavitation Protection
Available with heat treatment integration
Pulsation
Minimum pulsation
Dead Volume
Minimum dead volume
Human Machine Interface (HMI)
Available on HTST-UHT unit

Operating Characteristics


Working mechanism
High-pressure inline homogenization
Integrated steps
Homogenization and emulsification
Automation level
High level of automation
Cleaning method
CIP / SIP ready
Batch vs. continuous operation
Inline Continuous
Cooling system
Running dry protection on cooling water
Cavitation protection
Available

Physical Characteristics


Machine footprint
Compact
Control panel type
HMI
Discharge method
Inline

Custom Options


Control panel type
HMI
Integration possibilities
HTST-UHT systems
Cavitation protection
Optional
Temperature sensors
Optional
