Mixing vessel for liquid, sauce, and cream products
Maximize efficiency in your production line with a versatile solution that seamlessly mixes, heats, and discharges a variety of liquid, cream, and powdered products, ensuring consistent quality across each batch.
Mixes, Heats, and Discharges Diverse Material Types

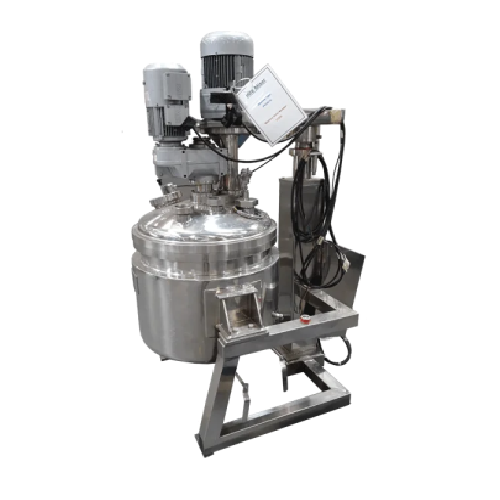

The PV500-86 from Winkworth Machinery is a versatile stainless steel processing mixer vessel engineered for reliability across various industries, including food, pharmaceuticals, and chemicals. With a working capacity of 500 liters, the PV500-86 simplifies complex mixing and heating operations, making it ideal for producing hot melt adhesives, fudge bars, and amoxicillin syrup. This vessel’s food-grade design incorporates a heating jacket and a 3-inch butterfly discharge, ensuring efficient handling of liquids, creams, and powders. Its automated PLC controls facilitate seamless integration into batch and continuous production lines, while CIP capabilities streamline cleaning and maintenance. The PV500-86’s robust construction ensures longevity and compliance with industry standards, offering customizable solutions tailored to specific production requirements.
Benefits
- Enhances production flexibility with seamless batch and continuous operation.
- Lowers cleaning and maintenance time with integrated CIP system.
- Maintains high product quality across diverse materials with robust stainless steel construction.
- Tailors to specific industry needs with customizable options.
- Ensures regulatory compliance for sensitive applications in pharmaceuticals and food products.
- Applications
- Sealants,Sauces,Edible oils,Vitamin and mineral supplements,Plastic,Sports nutrition,Probiotics,Chemicals,Dyes,Agrichemicals,Batteries,Rubber,Personal care,Ceramics,Ready meals,Inks,Building materials,Household products,Baby food,Paints,Pharmaceuticals,Metal powders,Nutraceuticals,Confectionery,Food and beverages,Adhesives,Dairy products
- End products
- Omega-3 softgels,Polyethylene film,Multipurpose household cleaner,Amoxicillin syrup,Greek yogurt,Lactobacillus culture,Orange juice concentrate,Natural rubber bands,Whey protein isolate powder,Ceramic tiles,Lithium-ion battery paste,Iron nanopowder,Fudge bars,Olive oil,Watercolor paint,Spf 50 sunscreen,Frozen lasagna,Denim fabric dye,Bone china plates,Fertilizer granules,Silicone sealant for bathrooms,Calcium tablets,Hot melt glue,Printer ink cartridges,Paracetamol tablets,Rice cereal for infants,Tomato ketchup
- Steps before
- Ingredient weighing,Pre-mixing,Emulsification,Heating,Additive blending
- Steps after
- Quality control,Cooling,Filling,Sealing,Labelling,Packaging
- Input ingredients
- liquid,sauce,cream products,heavy paste,dough,powder,granules,soft paste,heavy powders,liquid,slurries,fragile particles,cream,lotion
- Output ingredients
- shampoo,conditioner,nail varnish,deodorants,fragrances,biotechnology products,medical ointments,medical creams,ostomy products,pharmaceuticals,baby formula,creams,lotions,medical products,sports nutrition,probiotics,car body under seal,biscuit dough,chocolate,fudge,batteries,paints,inks,dyes,household products,wax,cream,milk,yogurt,cheese,fats,lards,sauces,chutney,soups,stews,jams,preservatives,ready meals,baby food,edible oils
- Market info
- Winkworth is known for manufacturing high-quality, engineered-to-order industrial mixing equipment, including mixers and blenders, renowned for their reliability and innovation in the pharmaceutical, food, and chemical industries.
- Working Capacity
- 500 litres
- Dimension (L x W x H)
- 1500 x 1550 x 2300 mm
- Weight
- 590 kg
- Discharge Type
- 3″ Butterfly Discharge
- Material
- Stainless Steel
- Design
- Food Grade
- Heating Jacket
- Yes
- Automation
- Not specified
- Batch vs. continuous operation
- Batch / Inline Continuous
- Automation level
- Manual / PLC / SCADA
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- CIP/SIP
- CIP 121°C / SIP 135°C
- Abrasion resistance
- Stainless Steel
- Biological compatibility
- Food Grade
- Cleanability
- Easy cleaning with CIP
- Corrosive resistance (e.g. acids)
- Stainless Steel
- Density/particle size
- Applicable for liquid,sauce,and cream products
- Machine footprint
- 1500 x 1550 mm
- Tank capacity
- 500 litres
- Discharge method
- 3" Butterfly Discharge
- Material
- Stainless Steel
- Weight
- 590 kg
- Height
- 2300 mm
- Food Grade Design
- Yes
- Discharge method
- 3″ Butterfly Discharge
- Heating capability
- Heating Jacket
