Lab-scale powder processing system
Achieve precise control in ultra-small batch processing with a versatile modular system, designed for the intricate demands of research and development.
Processes and Classifies Ultra-Small Powder Batches

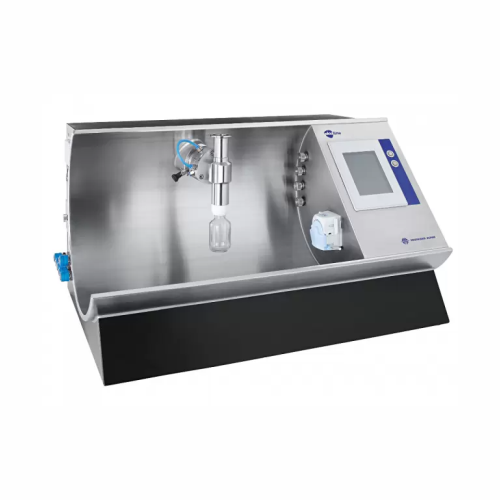

The Picoline Series from Hosokawa Alpine is designed for laboratories and R&D departments needing precise handling of ultra-small powder batches. This modular equipment features a platform with multiple function modules for fine milling, mixing, and classifying powders and suspensions. Its compact, table-top design allows easy integration into laboratory settings, including fume hoods. With applications across pharmaceuticals, chemicals, food, and more, the Picoline Series is ideal for developing scalable processes from grams of material. The equipment offers straightforward operation through a touch panel interface, enabling seamless control of experimental parameters. The brushed stainless-steel surface ensures easy cleaning, while a pivoted media supply adapter facilitates smooth module switching. The device supports batch or continuous operations with optional peripheral units, offering high versatility for diverse research requirements. Additionally, the system’s LAN interface allows integration with LIMS and remote data export, enhancing process monitoring and analysis.
Benefits
- Enables precise research with minimal material waste through modular processing of ultra-small batches.
- Simplifies process scale-up, maintaining consistency from laboratory trials to full production.
- Enhances experimental flexibility with easy integration into existing lab setups.
- Facilitates comprehensive process monitoring and data analysis via LAN and USB connectivity.
- Streamlines cleaning and maintenance, reducing downtime and ensuring contamination-free operations.
- Applications
- Detergent powders,Nuclear,Plant-based proteins,Animal-based proteins,Cosmetics,Toner,Herbs,Minerals,Pigments,Dairy,Chemicals,Food,Residual streams,Energy,Additive manufacturing,Spices,Tea,Cocoa,Animal feed,Crop protection,Sugar,Metals,Flavours,Instant soup,Pharmaceuticals,Battery materials,Beverage,Thickening agents,Environment,Lactose,Metal salts
- End products
- Catalysts,Sweeteners,Flavor enhancers,Metal salt powders,Cocoa powder,Feed additives,Speciality paper pigments,Fertilizer additives,Thickening agents in powder form,Whey protein isolate,Natural and synthetic pigments,Toner powder,Protein powders,Cocoa solids,Sugar substitutes,Metal powders for additive manufacturing,Plant-based protein isolate,Tea extracts,Cosmetic powder formulations,Nuclear fuel pellets,Agrochemical surfactants,Battery electrode materials,Mineral fillers,Instant soup powder,Dairy protein concentrate,Animal feed premixes,Lactose-free dairy powder,Toner additives,Apis
- Steps before
- Preparation,Mixing,Drying,Powder Testing
- Steps after
- Analysis,Packing,Storage,Quality Control
- Input ingredients
- powders,suspensions,mini quantities,ultra-small batches
- Output ingredients
- fine milled powders,classified powders,mixed powders,tiny batch products
- Market info
- Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.
- Dimensions
- L 893 mm x W 616 mm x H 488 mm
- Weight
- Approx. 80 kg
- Batch size
- A few grams
- Automation
- Touch panel with integrated microprocessor
- Material
- Brushed stainless steel
- Control Interface
- Touch panel
- Processor
- Microprocessor with CAN bus
- Modularity
- Platform with eight function modules
- LAN interface
- For printer,remote control,LIMS connection
- Data Export
- CSV via USB
- Media Supply
- Adapter connection
- Working mechanism
- Modular concept with interchangeable function modules
- Integrated steps
- Fine milling,classifying,mixing
- CIP/SIP
- Easy cleanability with brushed stainless steel
- Batch vs. inline flow
- Designed for batch processing of ultra-small quantities
- Automation level
- Controlled by touch panel with integrated microprocessor
- Changeover time
- Quick module change due to standardized adapter
- Cleanability
- Brushed stainless steel
- Density/particle size
- Ultra-small batches of <1 g to a few grams
- Abrasion resistance
- High technical standards
- Machine footprint
- L 893 mm x W 616 mm x H 488 mm
- Design type
- Table-top
- Material of construction
- Brushed stainless steel
- Weight
- Approx. 80 kg
- Module addition flexibility
- Modular concept with attachable function modules
- Discharge method
- Adapter connection for modules
- Control panel type
- Touch panel with integrated microprocessor
- Media supply method
- Pivoted media supply adapter
- Cleanability
- Easy cleaning due to material and design
- Control panel type
- Touch panel
- Platform type
- Modular,table-top design
- Adaptability
- Various function modules
- Integration possibilities
- LAN interface for remote control and LIMS systems
- Media supply adapter
- Pivoted,tiltable for picoliq and picobond
