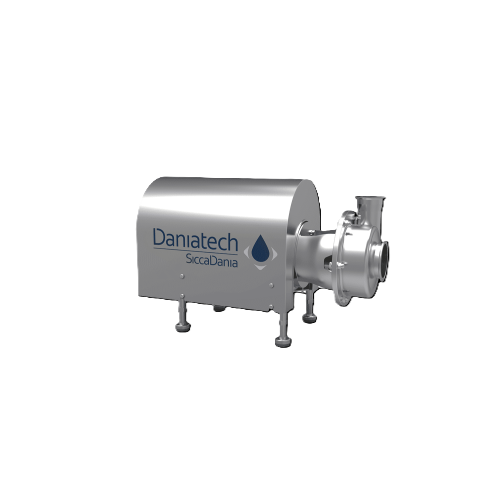

Inline high shear mixing unit for low to medium viscosity products

Achieve precise emulsification and size-reduction with minimal energy while handling low to medium viscosity liquids efficiently in both batch and inline operations.

Performs High-Shear Mixing and Emulsification

The MixMaster series from Daniatech offers versatile, high-shear mixing solutions for your production line challenges. These mixers employ a rotor-stator principle, efficiently processing applications from dairy to personal care products. Designed for both batch and inline operations, the MixMaster units are adept at handling various viscosities, offering effective homogenization, droplet size-reduction, and emulsification. With capacities ranging from 5 to 30 ms/h and pressure capabilities up to 8 Bar, they maintain consistency in complex mixtures like yogurt smoothies and vegan cheese spreads. Integration is seamless, featuring options like flushed mechanical shaft seals and PLC compatibility for enhanced process control. Constructed with high-quality materials, the MixMaster ensures durability and complies with industry standards, including GMP and FDA, facilitating easy cleaning with CIP systems. Customizable features and engineering support ensure the MixMaster meets your specific production needs.

Benefits

  • Enhances product quality by ensuring consistent emulsification and homogenization.
  • Reduces operational costs through efficient energy use in high-shear processes.
  • Offers flexible integration with both batch and inline setups, adapting to various production needs.
  • Simplifies maintenance and cleaning with CIP systems, minimizing production downtime.
  • Meets industry standards, including GMP and FDA, ensuring regulatory compliance.

General


Applications
Personal care,Plant-based beverages,Pet food,Juices and concentrates,Confectionery,Condiments,Soft drinks,Sauces and soups,Dairy products
End products
Chocolate syrup,Soya milk,Coconut milk,Tomato bisque,Barbecue sauce,Fruit juice blends,Protein shakes,Vegan cheese spread,Cat kibble coating,Creamy hummus,Flavored mineral water,Gourmet ice cream base,Shampoo emulsions,Yoghurt smoothies,Aloe vera gel
Steps before
Emulsification,Concentration,Purification
Steps after
Homogenization,Packing,Blending
Input ingredients
emulsion,slurries,concentrates,pigment solution,yoghurt,soft drinks,stabiliser solutions
Output ingredients
emulsion,droplet size-reduction,homogenisation,smoothened yoghurt,viscosity reduced yoghurt,fish-eye removed solutions,blended applications,homogenised product
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Motor Power
5.5 kW - 45 kW
Flow Rate
5 ms/h - 30 ms/h
Inlet Pressure
0.5 - 5 Bar
Outlet Pressure
2.5 - 8 Bar
Mixing Type
Inline High Shear Mixing
Mixing Principle
Rotor-stator principle
Dimensions (H x W x D)
650 x 420 x 930 mm - 908 x 680 x 1150 mm
Weight
75 kg - 150 kg
Service Water Usage
20 l/h
Batch vs. Continuous
Batch or Inline

Operating Characteristics


Working mechanism
Rotor-stator mixing principle
Batch vs. continuous operation
Batch / Inline Continuous
Integrated steps
High shear mixing,homogenisation
Inlet pressure
0.5 – 5 Bar
Outlet pressure
2.5 – 8 Bar
Flow rate
25 – 125 ms/h
Versatility
Multifunctional for different applications
Positive feeding requirement
For high-viscosity applications
Homogenisation capability
Down to 2μ lump-free

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
CIP compatible
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Homogenisation
down to 2μ lump-free

Physical Characteristics


Machine footprint
650 x 420 x 930 mm to 908 x 680 x 1150 mm
Weight
75 kg to 150 kg
Control panel type
Start/stop box with soft starter or frequency inverter
Discharge method
Inline or batch operation
Inlet/outlet connection
Tri-clamp
Frame type
Frame with 4 legs

Custom Options


Pump Options
High-shear mixing pump
Operation Type
Batch or Inline
Mechanical Seal Type
Double mechanical shaft seal
Motor Options
NEMA,other motors available
Start/Stop Box Options
Soft starter or frequency inverter
Injector for Powder Intake
100-litre funnel
Fitting Standards
SMS DIN/ISO
