Industrial strand pelletizer for polymer processing

Optimize polymer pellet production with precision engineering, ensuring smooth integration into your existing processing line while enhancing product quality through consistent pellet size and efficient material handling.

Processes and Pelletizes Polymers and Pharmaceutical Materials

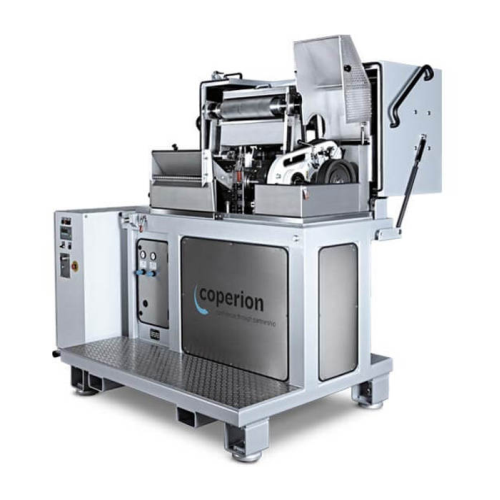

The Coperion Strand Pelletizer SP 500 HD is engineered for efficient production and precision in polymer and pharmaceutical pelletizing applications. This machine excels by converting various polymer melts into uniform pellets suitable for plastics, chemicals, food products, and pharmaceuticals. Its robust design supports a throughput range from 30 to 6,300 kg/h, making it adaptable from small-scale operations to large continuous production lines. The SP 500 HD operates with a combination of cooling, dewatering, pelletizing, and screening processes, ensuring consistency and quality in the output.

Equipped with a PLC-based control system, it seamlessly integrates with upstream and downstream equipment, enhancing productivity while reducing manual intervention. The machine is constructed with corrosion-resistant materials and meets FDA and GMP standards, especially beneficial for pharmaceutical applications. It supports semi-automatic and automatic operations with options for customization, allowing for adjustments to suit specific production requirements. Maintenance is simplified through an accessible design that permits easy cleaning and minimizes downtime. Whether you are producing biodegradable plastic pellets or pharmaceutical granules, the SP 500 HD stands out for its versatility and engineering excellence.

Benefits

  • Enhances production efficiency with high throughput capacity up to 6,300 kg/h.
  • Reduces operational costs with automated, PLC-driven controls and seamless integration.
  • Complies with FDA and GMP standards, ensuring safety in pharmaceutical and food applications.
  • Minimizes energy usage through optimized cooling and dewatering processes.
  • Adapts to various production needs with customizable configurations for different materials.

General


Applications
Snacks,Plant-based proteins,Toner,Dairy,Chemicals,Food,Hot melt adhesives,Pvc processing,Chemical recycling,Bioplastics,Pet food,Pet recycling,Pharmaceutical products,Plastics,Pharmaceutics,Battery materials,Engineering plastics,Confectionery,Masterbatch
End products
Polyethylene pellets,Color masterbatch pellets,Pet pellets,Hot melt glue pellets,Milk powder additives,Pvc granules,Lithium-ion battery powder,Recycled pet flakes,Pharmaceutical granules,Textured vegetable protein (tvp) granules,Candy coating pellets,Recycled plastic pellets,Biodegradable plastic pellets,Toner powder,Polypropylene pellets,Snack pellets
Steps before
Melt polymer processing,Extrusion,Strand cooling,Strand dewatering
Steps after
Pellet screening,Pellet conveying,Vibration screening,Packaging,Storage
Input ingredients
melted polymer,plastic strands,extruded strands,food products,pharmaceutical products
Output ingredients
cylindrical pellets,dry plastic pellets,easy to handle pellets
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Cooling Length
Up to 25,000 mm
Cooling Width
Up to 1,000 mm
Conveyance Length
Up to 12,000 mm
Conveyance Width
Up to 600 mm
Process Water Circulation
Up to 65 m³/h
Cooling Power
Up to 1,400 kW
Air Wipe Working Width
51 and 70 mm
Suction Device Working Width
70 up to 1,200 mm
Pelletizer Working Width
50,100,and 150 mm
Pelletizer Throughput
30 to 1,000 kg/h
Pelletizer Working Width (SP easy / SP U)
140,240,and 340 mm
Pelletizer Throughput (SP easy / SP U)
Up to 3,000 kg/h
Pelletizer Working Width (SP HD)
500 and 700 mm
Pelletizer Throughput (SP HD)
Up to 6,300 kg/h
Screen Machine Working Width
150,300,and 400 mm
Screen Machine Throughput
Up to 750 kg/h

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Variable,modular design
Working width
50 to 700 mm depending on pelletizer type
Throughput capacity
2 kg/h to 6,300 kg/h
Construction material
Stainless steel,FDA compliant for food and pharma
Enclosed motors
Yes,IP67 protection class
Strand Cooling Trough Length
Up to 25,000 mm
Strand Conveyance Length
Up to 12,000 mm
Screen Machine Working Width
150,300,and 400 mm
Cooling power capacity
Up to 1,400 kW
Process Water Circulation
Up to 65 m³/h

Custom Options


Modular Design
Yes
Integration with Existing Lines
Easy Integration
Control Panel Type
Customizable
Enclosed Motors
Yes,IP67
Material Options
Stainless Steel
Palletizer Size
Customizable
