High-speed horizontal case packer for shipping cases

For high-demand production lines, this modular case packer streamlines the packaging process by efficiently handling complex product collation and quick carton assembly, ensuring secure and rapid product dispatch.

Packs and Seals Cartons Efficiently

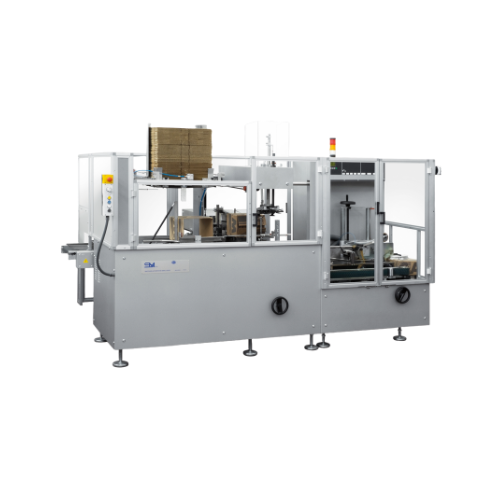

The SM80 by CAM Automatic Machines is a modular horizontal case packer designed to meet the rigorous demands of pharmaceutical, food, and consumer goods packaging. This high-speed equipment optimizes end-of-line operations by automating carton erection, product feeding, collation, and closure, ensuring a secure packaging process. Its modular design comprises three key components: product feeding and collation, carton erection, and carton closure, allowing for seamless integration into existing production lines.

Ideal for packaging a diverse range of solid products such as monoclonal antibodies and protein powder, the SM80 accommodates complex applications like marking and labeling with precision. It supports various closure methods, including glue tape, damp kraft paper, and hot/cold glue, enhancing versatility based on operational needs.

With the capacity to handle extensive throughput while maintaining product stability, the SM80 is PLC-controlled, enabling remote monitoring to streamline operations. The machine’s modularity supports customizations such as extended carton magazines and automatic loaders, offering tailored solutions for diverse industry requirements. Designed for easy access and cleaning, the SM80 assures reliable performance and longevity, meeting stringent industry standards.

Benefits

  • Increases packaging speed and efficiency with a modular design.
  • Enhances product stability during transit with secure carton closure options.
  • Reduces labor costs through automated product feeding and collation.
  • Supports diverse packaging needs with customizable modules and settings.
  • Simplifies maintenance and cleaning, ensuring minimal operational downtime.

General


Applications
Vitamins,Supplements,Food products,Pharmaceutical tablets,Detergents,Snacks,Nutraceuticals,Biopharmaceuticals,Pharmaceuticals
End products
Laundry detergent pods,Vitamin d supplements,Monoclonal antibodies,Protein powder,Cereal bars,Potato chips,Omega-3 capsules,Paracetamol tablets,Ibuprofen,Vitamin b12 tablets
Steps before
Product Feeding,Product Collation,Carton Erection
Steps after
Carton Closure,Labeling,Marking of Cartons,Printing of Labels
Input ingredients
products,cartons,carton materials,glue tape,damp kraft paper,hot melt,cold glue
Output ingredients
packaged products,shipping cases,erected carton,closed cartons,labeled cartons
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Automation
Automatic
Speed
High speed
Collation Type
Two arms with suction grippers
Carton Closure Type
Glue tape,damp kraft paper,hot melt or cold glue
Carton Erection
Mechanical movement
Modular Design
Three separated modules
Cleaning
Easy cleaning
Secondary Equipment Options
Magazine for longer cartons,automatic carton loader,labeling devices

Operating Characteristics


Working Mechanism
Collation and volume management through mechanical arms
Integrated Steps
Product feeding,collation,carton erection,carton closure
Batch vs. Continuous Operation
Batch with inline product collation
Carton Closure Method
Glue tape,damp kraft paper,hot or cold glue
Automation Level
Automatic with options for secondary equipment
Cleaning Method
Easy cleaning due to modular design
System Control
PLC-controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Carton
Filling purpose
Case-packing
Packaging closure method
Glue,tape,kraft paper
Carton style
Shipping cases

Physical Characteristics


Machine footprint
Modular
Control panel type
PLC interface
Discharge method
Carton

Custom Options


Integration possibilities
Secondary equipment options
Carton closing method
Glue tape / hot melt / cold glue
Carton loader type
Automatic
Labeling device
Label applicator / Marking device
