High shear inline mixer for continuous processing
Effortlessly streamline your mixing process with this solution capable of reducing mixing times by up to 90%, ensuring precision and reliability while maintaining consistent product quality across various applications.
Mixes, Emulsifies, and Homogenizes Liquid Products

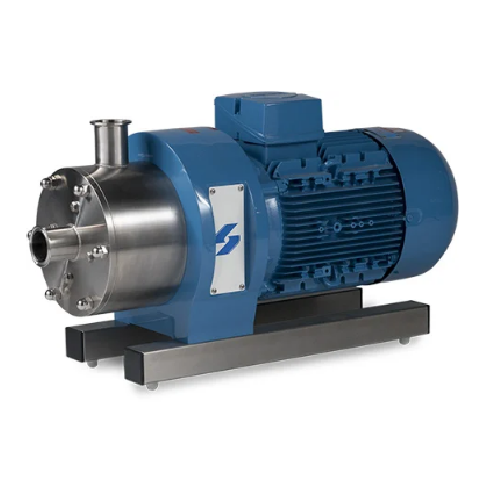

The Silverson High Shear Inline Mixer is a versatile solution designed for industries ranging from pharmaceuticals to cosmetics. Known for their innovation, Silverson ensures efficient and precise mixing, emulsification, and homogenization through a self-pumping operation. At its core, the mixer operates with a high-performance rotor/stator workhead, reducing mixing times by up to 90%. The system is ideal for producing monoclonal antibodies, vaccines, and personal care emulsions, handling both liquid and powder ingredients seamlessly.
Capable of processing up to 1,100 gallons per minute, this mixer integrates easily into existing production lines with its PLC-controlled functions. Available with sanitary construction, it supports quick material transitions and CIP for hygiene-critical environments. The unit’s variable-speed motor optimization ensures reduced energy consumption, while options in stainless steel and Hastelloy provide robust corrosion resistance. Engineered for compliance with FDA and GMP standards, this mixer is customizable with interchangeable workheads and configurations to meet specific production needs.
Benefits
- Reduces mixing times by up to 90%, increasing production efficiency.
- Ensures consistent product quality with aeration-free, precision mixing.
- Minimizes energy costs with optimized motor controls.
- Adapts to diverse applications with interchangeable workheads.
- Simplifies cleaning and maintains hygiene with CIP integration.
- Applications
- Supplements,Liquid formulations,Fine chemicals,Nutraceuticals,Cosmetics,Chemical industries,Biopharmaceuticals,Food and beverage,Emulsions,Dairy products,Pharmaceuticals
- End products
- Vaccines,Detergents,Protein shakes,Monoclonal antibodies,Vitamin supplements,Juice concentrates,Personal care emulsions,Yogurt,Syrups,Omega-3 oils,Api synthesis,Creams
- Steps before
- Grinding,Purification,Drying,Deagglomerating
- Steps after
- Sterilization,Packing,Coating,Particle Size Reduction
- Input ingredients
- liquids,solids,powders,fibrous materials,animal tissue,vegetable tissue,elastic materials,rubbers,polymers
- Output ingredients
- emulsions,suspensions,soluble granular solids,insoluble granular solids,gels,thickeners,fine colloidal suspensions
- Market info
- Silverson is renowned for manufacturing high-quality industrial mixers, specializing in high-shear mixers for industries such as food, pharmaceuticals, and cosmetics, offering customized solutions and exceptional engineering expertise.
- Mixing Speed
- Up to 3600 RPM
- Self-pumping Capacity
- Up to 1,100 gallons per minute
- Particle Size Reduction
- Capability for rapid size reduction
- Power Requirements
- Lower power requirements for cost-effective operation
- Workhead Configuration
- Single stage and multistage interchangeable
- Material of Construction
- 316L Stainless Steel (Special materials available upon request)
- Motor Specification
- TEFC,washdown duty,explosion proof motors
- Hygienic Processing
- Sanitary construction,CIP and SIP compatible
- Mixing Functions
- Mix,emulsify,homogenize,solubilize,suspend,disperse,disintegrate
- Aeration-free Operation
- Aeration-free
- Interchangeable Components
- Rapidly interchangeable workheads
- Mixing Speed
- High shear
- Operation Type
- In-line continuous
- Aeration-free Operation
- Yes
- Self-pumping Functionality
- Yes
- Interchangeable Workheads
- Yes
- Sanitary Construction
- Yes
- Power Requirements
- Lower
- Cleaning Method
- CIP/SIP
- Sanitary construction compatibility
- Hygienic processing
- Corrosive resistance (e.g. acids)
- 316L stainless steel
- Cleanability
- CIP/SIP compatible
- Interchangeable workheads compatibility
- Multiple material types
- 3A Sanitary Standards
- Yes
- FDA Materials
- Yes
- CE marking
- Yes
- GMP Compliance
- Yes
- ATEX certification
- Optional
- Control panel type
- PLC,manual,bespoke options
- Interchangeable Workheads
- Various configurations available
- Construction Materials
- 316L stainless steel,hastelloy,titanium
- Motor Specification
- TEFC,explosion-proof,washdown duty
- Inlet and Outlet Connections
- Tri-Clamp,ASA,DIN,custom requests
