High shear impact mixer for agglomeration and dispersion

Achieve precise homogeneity and efficient agglomeration with a high-speed, high-shear impact mixer designed to handle cohesive powders and slurries, ensuring optimal end-product quality across batch operations.

Mixes and Agglomerates Cohesive Powders and Liquids

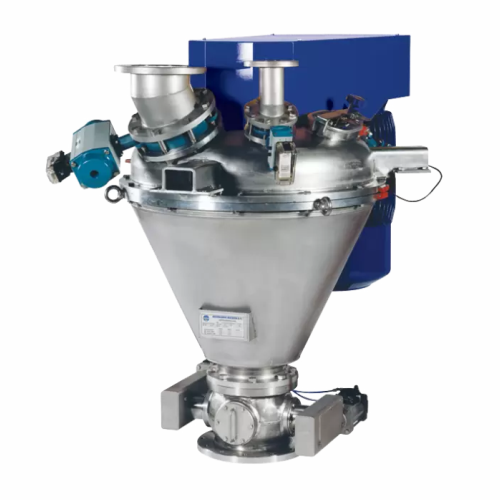

The Cyclomix High Shear Impact Mixer from Hosokawa Micron is engineered for professionals in food, chemical, and pharmaceutical industries requiring precision mixing and agglomeration. Featuring a conical vessel with a central high-speed rotor, it efficiently disperses cohesive powders and liquids, achieving superior homogeneity with ultra-short processing times. Its design incorporates centrifugal forces to elevate and mix materials, while an impact blade manages particle size distribution, making it ideal for producing products like instant soup powder, DPI capsules, and toner cartridges. Operating with volumes from 100 ml to 2000 liters, the Cyclomix enables effective heat transfer for precise thermal processing and agglomeration. It offers advanced automation with PLC integration, ensuring seamless batch operations. Built with options for stainless steel construction, it supports stringent compliance with industry standards. With a focus on maintenance ease, optional cleaning systems facilitate quick, contamination-free operations, backed by customizable engineering support for unique production requirements.

Benefits

  • Enhances product consistency with precise mixing and size control.
  • Offers rapid processing cycle times, boosting operational efficiency.
  • Ensures optimal thermal management for temperature-sensitive materials.
  • Facilitates seamless integration into existing production lines via automation.
  • Reduces downtime with easy cleaning and maintenance options.

General


Applications
Food,Cosmetic powders,Cohesive powders,Press metal powders,Mineral,Powder paints,Sugar,Dry powder inhalants (dpi),Toner,Cosmetic,Chemical,Kaolin,Pharmaceutical,Plastic,Gypsum,Slurries,Pigments,Liquids
End products
Cosmetic foundation powders,Kaolin clay fillers,Confectioner's sugar,Pharmaceutical tablets,Powder coatings,Instant soup powder,Gypsum plaster,Face powders,Toner cartridges,Dpi capsules,Metal powder components,Polymer pellets
Steps before
Grinding,Powder Analysis,Size Reduction,Choppers,Disintegrators,Compaction,Feed Preparation
Steps after
Coating,Agglomeration,Densification,Spheronisation,Cooling,Pack-out
Input ingredients
cohesive powders,liquids,melt binders,pastes,slurries
Output ingredients
homogeneous mixtures,agglomerates,coated powders,dispersed pigments,metallic bonded powder paints,dried wet agglomerates,densified powders,spheronised particles
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Mixing speed
Up to 30 m/s
Capacity
100 ml to 2000 liters
Temperature control
Heat-controlled jacket
Paddle rotor speed
Up to 30 m/s
Vessel diameter
300–2250 mm
Outlet diameter
80–400 mm
Height incl. motor
280–3573 mm
Motor power
0.75 – 240 kW
Processing time
Ultra-short
Seals
Above product zone
Drying capability
(Vacuum) drying at low temperature
Volume options
515,550,1000,2000 liters

Operating Characteristics


Working Mechanism
High Shear Impact Mixing
Integrated Steps
Mixing,Agglomeration,Dispersing,Coating
Batch vs. Continuous Operation
Batch
CIP/SIP
Available with mechanical seals
Automation Level
PLC Controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Vessel Shape
Conical
Vessel Size
100 ml - 2000 liters
Outlet Diameter
80-400 mm
Height incl. Motor
280-3125 mm
Rotor Speed
up to 30 m/s
Motor Power
0.75 - 240 kW
Footprint
Variable depending on model
Mixing Method
High Shear,Impact

Custom Options


Control panel type
PLC-controlled
Integration possibilities
With ancillary equipment
Jacketed vessel
For heating or cooling
Sampler
Optional
Lifting device
Special trolleys for easy cleaning
