Fluid bed dryer with granulation and coating

Enhance your processing efficiency with a versatile system capable of combining drying, granulation, and coating in a compact unit, ensuring precise control and reduced downtime in high-speed batch operations.

Processes Granules and Powders for Pharmaceuticals

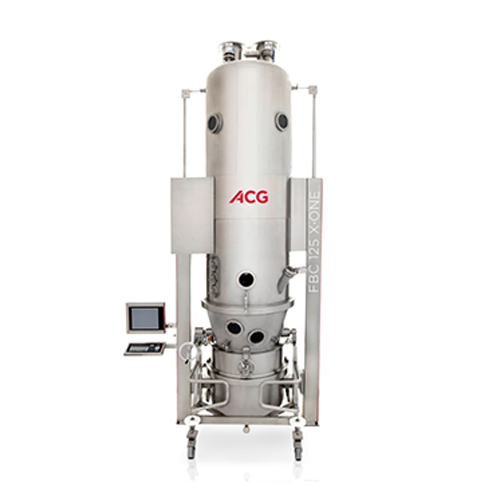

The FBC 125 X•ONE from ACG offers a versatile fluid bed combo system that meets the diverse processing needs of pharmaceutical and nutraceutical industries. With its cutting-edge design, it ensures supreme safety and adaptability while performing drying, granulation, coating, and mixing tasks. This equipment handles batches up to 125 liters, ideal for producing pharmaceutical tablets, vitamin tablets, herbal supplements, and protein powder blends. The 12-bar pressure shock-resistant system, incorporating MOST™ (Maximum Operator Safety Technology) and compliant with ATEX and FSA standards, guarantees operator and environmental safety. The FBC 125 X•ONE features ACG’s X•ONE command process control system, providing intuitive and secure monitoring, compliant with ATEX, GAMP 5, and 21 CFR Part 11. Patented nozzles from Düsen-Schlick GmbH further enhance productivity and simplify cleaning. For integration into existing production lines, it offers quick-action stop valves to contain any explosion within 20 milliseconds and optional wash-in-place systems. Customizable for specific needs, the system supports efficient processing in standalone setups or as part of a granulation train.

Benefits

  • Ensures operator safety with a fully contained, non-vented design.
  • Reduces process interruption, enabling rapid production resumption after pressure-shock events.
  • Enhances efficiency with customizable, quick-changeover systems for granules and pellets.
  • Facilitates compliance with stringent industry standards through integrated command process control.
  • Improves productivity with specialized nozzles for streamlined operation and cleaning.

General


Applications
Nutraceuticals,Supplements,Fine chemicals,Pharmaceuticals
End products
Mineral supplements,Granular fine chemicals,Nutritional capsules,Pharmaceutical tablets,Coated pharmaceutical pills,Vitamin tablets,Herbal supplements,Protein powder blends
Steps before
Mixing,Blending,Wet Granulation
Steps after
Drying,Coating,Tablet Compression,Encapsulation
Input ingredients
wet mass materials,powdered ingredients,liquids for granulation
Output ingredients
dried granules,coated particles,layered pellets
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Working volume - Top-spray granulation
Min 33 l / Max 168 l
Working volume - Wurster coating
Min 9 l / Max 80 l
Pressure shock-resistant system
12-bar
Inflatable seals pressure
As low as 4.5 bar
Explosion containment
Within 20 milliseconds
Batch capacity
Up to 125 l
Compliance
ATEX,GAMP 5,21 CFR Part 11

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
Wash-in-place (WIP) system
Cleaning method
Customized wash-in-place (WIP)
Changeover time
Efficient and fast changeovers
Energy efficiency
Optimized for low energy consumption
Safety features
12-bar pressure shock resistance,MOST™,ATEX compliant
Explosion containment
Ensured within 20 milliseconds

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Directive 2014/34/EU

Physical Characteristics


Discharge method
Customised charging,discharging
Control panel type
X•ONE Command Process Control System
Machine size
Up to 125 liters
Machine footprint
Design Centre Mülheim,Germany

Custom Options


Control panel type
ACG X•ONE command process control system
Integration possibilities
Standalone or granulation-train configurations
Charging system
Customised options available
Discharging system
Customised options available
WIP (wash-in-place) system
Customised options available
