Extraction plant for natural ingredients

Bespoke extraction plants using the latest technology can improve your efficiency and reduce costs when developing natural extracts for the food and pharmaceutical industries.

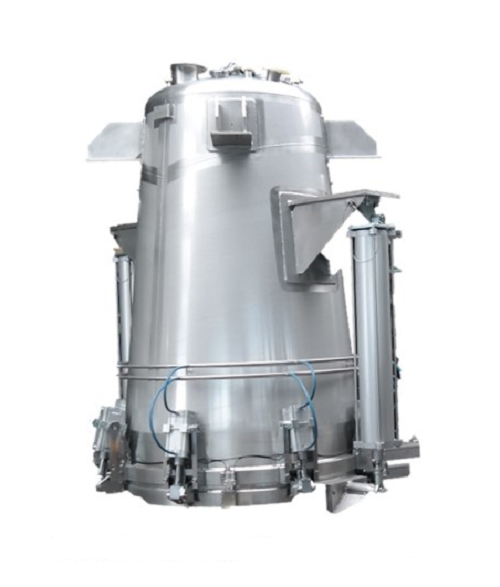

Production extraction plant for recovery of essential oils, oleoresins, aromas, natural extracts and proteins

Devex extraction plants are tailor-made to your exact requirements, providing a bespoke solution designed to work seamlessly with your production needs.

A huge range of options and possibilities includes standard extractors that are vacuum-proof up to 0.5 barg or 3 barg, or high pressure extractors up to 40 barg. Extractor sizes can range from 20 litre up to 10m³ suitable for the highest volume production lines.

1-effect and multistage extraction is available, as is ATEX / Non-ATEX.

Devex extraction plants are suitable for a wide range of products, including coffee, tea, leaves, barks and roots, spices, fruit, seeds, herbs and medicinal plants. Variable extraction processes are available for maximum efficiency, such as steaming, vacuum stripping, percolation and solvent recovery.

Benefits

  • True tailor-made extraction solution
  • Able to recover a wide range of natural extracts
  • Designed for easy raw material discharge, saving time between batches
  • Huge range of options and customisation
