Efficient ribbon mixers for precise powder blending

Achieve consistent and uniform blending with this advanced U-Trough mixer, designed for precise mixing, homogenization, and de-aerating processes, ensuring optimal product quality and efficiency in your production line.

Mixes and Homogenizes Diverse Materials

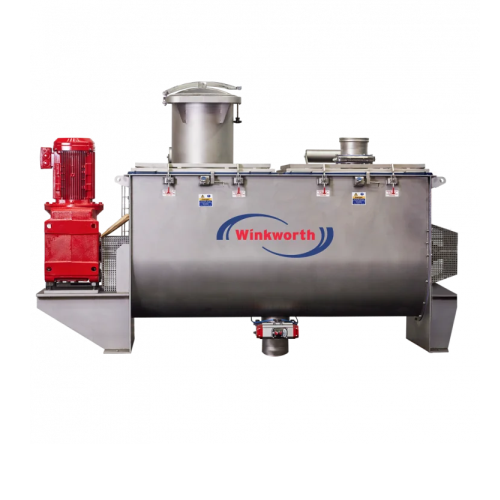

The UT Ribbon Blender from Winkworth Machinery is an engineered-to-order solution for precise mixing and homogenization. The horizontal shaft blender features an innovative ‘U’ shaped trough and spiral or ribbon blades, ensuring efficient blending across diverse material types including powders, granules, and slurries. Commonly employed in industries such as adhesives, food, pharmaceuticals, and ceramics, it facilitates the production of items like hot melt glue sticks, marzipan, and porcelain tiles.

Capable of both batch and continuous operations, the UT Ribbon Blender can be tailored with working volumes from 25 to 11,500 liters, offering versatility for varied production scales. The dust-tight lid allows material addition without halting operation, and optional features like heating or cooling jackets, vacuum models for de-aerating, and ATEX certification for explosive environments further enhance its applicability. Constructed with robust materials such as 304 or 316 grade stainless steel for enhanced corrosion resistance, the machine integrates seamlessly with existing production lines and offers easy maintenance with its accessible design and quick-cleaning features. Ideal for optimizing throughput, Winkworth’s ribbon blender ensures product integrity and process efficiency.

Benefits

  • Enhances product consistency with reliable mixing and homogenization.
  • Integrates seamlessly into production lines, reducing setup and changeover times.
  • Offers flexible operation modes (batch and continuous) to meet diverse production needs.
  • Minimizes maintenance time with easy access for cleaning and servicing.
  • Customizable features optimize suitability for various industry applications.

General


Applications
Vitamins,Sealants,Sauces,Snacks,Granules,Plastic,Chemicals,Food,Dyes,Herbal products,Agrichemicals,Seasonings,Rubber,Personal care,Supplements,Ceramics,Inks,Building materials,Metals,Animal feeds,Household products,Pet foods,Baby food,Paints,Pharmaceuticals,Beverages,Metal powders,Nutraceuticals,Confectionery,Adhesives
End products
Hair conditioner,Energy bars,Dog kibble,Concrete mix,Rtv silicone sealant,Hot melt glue sticks,Marzipan,Dried oregano,Dried basil,Fabric dye,0,Detergent powder,Fish flakes,Printer ink,Rubber mulch,Paprika seasoning,Tomato sauce,Plastic pellets,Stainless steel components,Chewable vitamin tablets,Acrylic paint,Porcelain tiles,Sports drink base,Fertilizer granules,Harissa paste,Ethanol,Baby formula,Dishwashing liquid,Cough syrup,Omega-3 capsules
Steps before
Ingredient Preparation,Ingredient Selection,Size Reduction,Weighing,Screening
Steps after
Quality Control,Packaging,Homogenization,Cooling,Storage
Input ingredients
adhesives,sealants,biscuit dough,cake mix,chocolate,confectionery,ceramics,ceramic injection moulding,agrichemicals,paints,inks,dyes,household products,metal powders,explosives,meat analogue,granules,herbs,spices,powders,seasonings,vitamins,minerals supplements,protein powders
Output ingredients
mixed adhesives,blended sealants,baked biscuits,baked cakes,confectionery products,formed ceramics,injection-moulded ceramics,prepared agrichemicals,formulated paints,completed inks,finished dyes,household product blends,processed metal powders,formulated explosives,ready meat analogue,uniform granules,blended herbs,mixed spices,combined powders,seasoned products,supplement mixtures,formulated protein powders
Market info
Winkworth is known for manufacturing high-quality, engineered-to-order industrial mixing equipment, including mixers and blenders, renowned for their reliability and innovation in the pharmaceutical, food, and chemical industries.

Technical Specifications


Capacity
25–11500 litres
Blending Type
Spiral/Ribbon blades
Construction Material
304 grade stainless-steel
Hinged Lid
Dust tight
Safety System
Key-operated safety interlock
Blade Construction
Fully welded blade
Drive Unit
Compact
Cooling/Heating Option
Jacket available
Automation
Option for HMI control panel
Vacuum Capability
Available as vacuum models
Mixing Operation
Continuous mixing available
Discharge Method
Slide valve outlet
Blade Type
Interrupted spiral ribbon

Operating Characteristics


Working Mechanism
Horizontal shaft with spiral/ribbon blades
Batch vs. Continuous Operation
Batch
Cleaning Method
Easy access and shorter cleaning times
Automation Level
PLC / SCADA
Dust-tight Lid
Yes
Integration into Production Line
Compact design
Safety Features
Key-operated safety interlock devices
Energy Efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
316 stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Biological compatibility
Yes
Cleanability
CIP / Manual

Product type Characteristics


Container size
Small/Medium/Large

Physical Characteristics


Machine footprint
Space saving ‘footprint’
Trough shape
‘U’ shaped trough
Cleaning access
Shorter cleaning times
Discharge method
Slide valve outlet
Blending mechanism
Spiral/ribbon type blades
Lid type
Dust tight hinged opening lid
Compact design
Yes
Construction material
Stainless-steel 304 grade
Drive unit
Compact drive unit

Custom Options


Compact footprint
Yes
