Continuous motion liquid packaging system
Achieve precise and clean liquid packaging with advanced servo-driven squeegee sealing, ensuring airless fills for products ranging from sauces to shampoos, all while maintaining continuous high-speed operation.

Packages Liquids Continuously and Efficiently

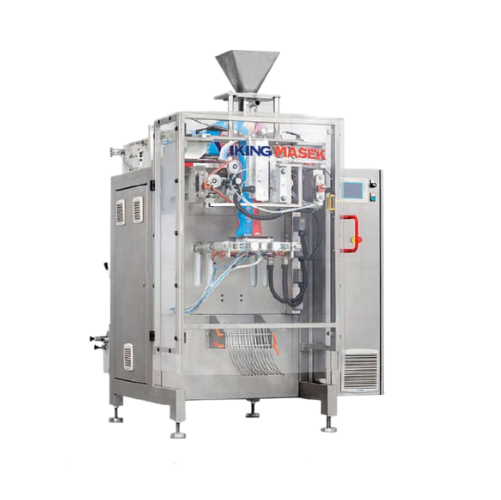

The VFFS Liquid Packaging Machine – Sigma 300 from Viking Masek is designed for industries requiring clean, efficient, airless packaging of liquid products. Utilizing a servo-driven airless fill system, it streamlines continuous operations by integrating processes such as filling, sealing, and bag deflating. It is particularly suitable for packaging soups, sauces, fruit juices, and medical solutions like saline, ensuring precision in liquid containment. Capable of handling up to 60 bags per minute, the Sigma 300 features an open frame design for easy cleaning and minimal maintenance, supported by off-the-shelf Allen Bradley controls. Its compatibility with various fillers, printers, and checkweighers allows seamless integration into existing production lines. Engineered from robust stainless steel for durability and corrosion resistance, this machine meets rigorous sanitary standards, making it ideal for food, beverage, health, and non-food product applications. It supports diverse bag styles and comes with options for remote diagnostics and customized packaging solutions, ensuring compliance with industry standards and enhancing operational productivity.
Benefits
- Enhances production efficiency with seamless continuous motion and high-speed operations.
- Reduces contamination risks by utilizing an airless packaging system for liquids.
- Lowers maintenance costs with user-friendly design and off-the-shelf components.
- Improves versatility in production lines with integration options for various fillers and printers.
- Ensures hygienic standards through easy-to-clean stainless steel construction.
- Applications
- Food,Sauces,Treats,Candy,Pet food,Non-food products,Beverage,Bakery,Cheese,Condiments,Soup,Medical,Health,Liquids
- End products
- Vegetable broth,Ketchup,Gummy bears,Cough syrup,Herbal infusion,Wet cat food,Saline solution,Croissants,Dog treats,Marinara sauce,Shampoo,Cheddar cheese,Liquid soap,Fruit juice
- Steps before
- Filling with Liquid,Mixer Preparation
- Steps after
- Labeling,Quality Inspection,Secondary Packaging
- Input ingredients
- liquids,soup,sauces,condiments,bulk liquids
- Output ingredients
- packaged liquids,airless filled packages,pillow bag style
- Market info
- Viking Masek is known for manufacturing innovative packaging machinery. They specialize in automated packaging solutions, including vertical and horizontal form-fill-seal machines, and are reputed for quality, flexibility, and custom-engineered solutions for various industries.
- Max Speed
- 60 bags per minute
- Bag Size (Min)
- 60 mm x 120 mm (2.36" x 4.72")
- Bag Size (Max)
- 300 mm x 1,000 mm (15.75" x 39.37")
- Maximum Roll Diameter
- 450 mm (17.75")
- Maximum Roll Width
- 645 mm (25.3")
- Weight
- 1,814 kg (4,000 lbs)
- Air Pressure
- 12-18 SCFM at 90 PSI
- Power Supply
- Standard 480V,three phase,60 Hz
- Materials
- Stainless steel
- Features
- Servo-driven,airless fill,vacuum pull belts,Allen Bradley controls
- Automation
- Servo drive for main machine functions
- Working mechanism
- Continuous motion
- Automation level
- PLC-controlled
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Sanitary design for complete washdown
- Air incorporation control
- Airless packaging system
- Integrated steps
- Servo-driven squeegee sealing
- Cleanability
- Yes,complete washdown
- Corrosion resistance
- Stainless steel frame and parts
- Viscosity
- Low to high viscosity liquids
- Foaming susceptibility
- No
- Container compatibility
- Pillow bag
- Frame Material
- Stainless steel
- Weight
- 1,814 kg (4,000 lbs)
- Machine Size (Bag Size Range)
- Min 60 mm x 120 mm (2.36" x 4.72"),Max 300 mm x 1,000 mm (15.75" x 39.37")
- Maximum Roll Diameter
- 450 mm (17.75")
- Maximum Roll Width
- 645 mm (25.3")
- Control Panel
- Color graphic operator interface
- Squeegee Sealing System
- Servo-driven,airless seal
- Frame Design
- Open frame
