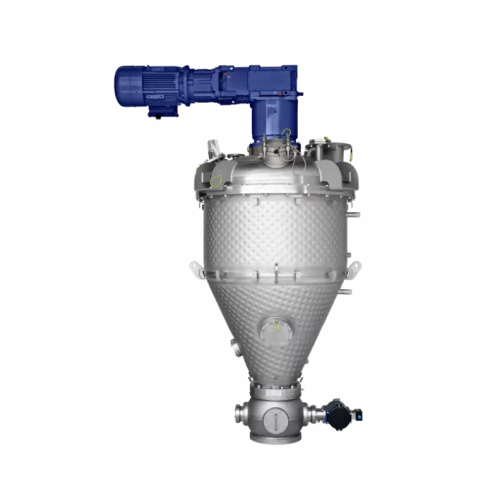

Conical paddle vacuum dryer for powders and granules

Achieve efficient drying of sensitive materials with this versatile vacuum dryer, designed to handle everything from loose powders to viscous liquids while maintaining product integrity and optimizing energy use.

Mixes, Dries, and Reacts Materials Efficiently

The Conical Paddle Dryer (CPD) from Hosokawa Micron delivers efficient, multi-purpose batch processing for diverse industries like pharmaceuticals, chemicals, and food. This vacuum dryer specializes in mixing, drying, and reaction processes with a central paddle rotor that ensures continuous material movement and rapid drying rates. It effectively manages heat-sensitive materials by using a heated jacket to transfer thermal energy, ideal for applications needing gentle but thorough drying, cooling, or crystallization.

Handling volumes from 5 to 15,000 liters, the CPD excels in processing everything from powders to pastes, products like plant-based proteins, biodegradable polymers, and lithium-ion battery materials. Automation is facilitated through PLC controls with possible CIP/SIP integration, ensuring compliance with international standards, including FDA, cGMP, and EHEDG. Options like a condenser for solvent recovery and material construction in stainless steel or Hastelloy cater to specific needs, ensuring durability and chemical resistance. The CPD offers customizable configurations, supported by engineering teams for tailored solutions, ideal for laboratories and full-scale production environments.

Benefits

  • Enhances product quality with gentle motion, preventing damage to heat-sensitive materials.
  • Improves energy efficiency and cost savings with low-temperature vacuum drying.
  • Reduces operational risks by complying with FDA and cGMP standards.
  • Offers flexibility for diverse process applications, from drying to crystallization.
  • Supports sustainability with solvent recovery and reduced emissions.

General


Applications
Food,Polymers,Animal feed,Metal powders,Battery materials,Fine chemicals,Detergents,Beverage,Plant-based proteins,Cosmetics,Additive manufacturing,Minerals,Pharmaceuticals
End products
Plant-based protein isolates,Active pharmaceutical ingredients,Nutritional animal feed pellets,Flavor encapsulation,Biodegradable polymers,Calcium carbonate powders,Tungsten carbide powders,Instant soup powders,Specialty chemical compounds,Mineral makeup,Lithium-ion battery cathode materials,Laundry detergent granules,3d printing powders
Steps before
Grinding,Alkalization,Polymerization,Solid-gas reactions,Wet agglomeration,Granulation
Steps after
Sterilization,Packing,Coating,Crystallization,Cooling of solids and liquids
Input ingredients
powders,granules,filter cakes,heat-sensitive products,loose powders,heavy pastes,viscous liquids
Output ingredients
dried powders,dried granules,dried filter cakes,dried heat-sensitive products,dried pastes,dried viscous liquids
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Batch volume
5 to 15,000 litres
Vessel diameter
300-2250 mm
Outlet diameter
80-400 mm
Height incl. motor
280-3125 mm
Motor power
0.5 - 80 kW
Temperature control
via heated jacket
Heat transfer media
Steam,hot oil,water
Cleaning method
CIP / SIP

Operating Characteristics


Working mechanism
Conical paddle rotating mechanism
Integrated steps
Mixing,drying,and reaction
CIP Principles
Automated cleaning solutions with CIP filter
Batch vs continuous operation
Batch
Cooling method
Cooling of solids and liquids
Automation level
Automated process control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³
Heat sensitivity
Yes,suitable for heat-sensitive materials
Solvent compatibility
Suitable for various solvents with recovery system

Physical Characteristics


Machine footprint
Compact design
Vessel Shape
Conical
Vessel Size
5 to 15,000 litres
Outlet diameter
80–400 mm
Height incl. motor
280–3125 mm

Custom Options


Batch size
5–15,000 litres
Compact design
Yes
Control panel type
PLC-controlled
Heating medium
Steam / hot oil / water
Discharge method
Ball segment outlet valve
Cleaning method
CIP / SIP
Construction material
Stainless steel / Hastelloy
