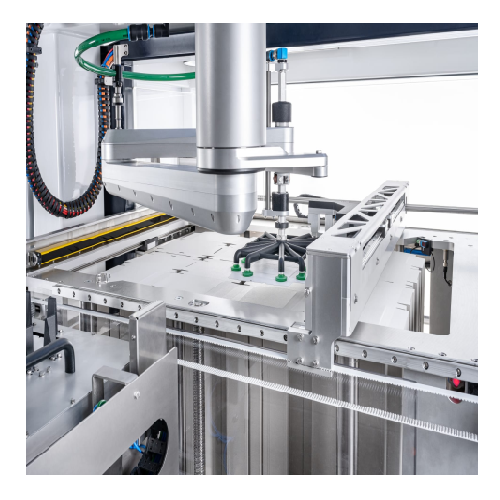

Compact carton blank feeding system
Maximize your production efficiency with a solution designed to streamline carton blank feeding processes, optimizing space and reducing labor demands in your packaging line.
Automates Carton Blank Feeding and Erecting
The TLM Comfort Feeder from Schubert Group is a compact carton feeding system engineered for efficient automation within the food, bakery, confectionery, snack, dairy, beverage, pharmaceutical, cosmetics, and pet food industries. This system seamlessly integrates into production lines, automating the infeed, erecting, loading, and sealing processes for applications like cereal bars, yogurt containers, and face cream jars. Featuring single-lane operation, it achieves a cycle rate of up to 60 packs per minute while minimizing space requirements. Equipped with a Schubert Motion software-optimized F4 robot, the system pulls pre-cut blanks directly from the pallet into an A6 erecting unit, ensuring precise handling and high output. The design supports continuous operation with a four to five-hour per pallet feed time, eliminating the need for machine stops during pallet exchanges. The TLM Comfort Feeder’s compactness, combined with lightweight robotic tools and an easy-to-manage interface, allows for simplified operation and maintenance, making it a cost-effective solution for various manufacturers seeking to optimize their packaging processes.
Benefits
- Maximizes space efficiency with a compact design for smaller production floors.
- Increases throughput with single-lane feeding and erecting at 60 cycles per minute.
- Reduces labor costs through automated infeed and erecting processes.
- Minimizes equipment downtime by allowing pallet exchange without stopping the machine.
- Simplifies operation and maintenance with lightweight robotic tools.
- Applications
- Food,Beverages,Snacks,Pet food,Confectionery,Cosmetics,Pharma,Bakery products,Dairy
- End products
- Face cream jars,Vitamin supplements,Dog food pouches,Snack bars,Cereal bars,Chocolate bars,Yogurt containers,Cheese portions,Drink cartons
- Steps before
- Pallet loading,Blank sheet preparation,Pre-cutting of blanks
- Steps after
- Filling of cartons,Sealing of cartons,Transport to next packaging stage
- Input ingredients
- carton blanks,flat blanks,blank sheets,pallet with blank sheets
- Output ingredients
- erected packaging,filled cartons,sealed cartons,material-efficient packaging formats
- Market info
- Schubert Group is renowned for its innovative packaging technology solutions, specializing in modular, highly flexible packaging machines for various industries, ensuring efficiency and precision in production lines.
- Speed
- 60 packs per minute
- Automation
- Fully automated
- Cycle Rate
- 60 cycles per minute
- Space Efficiency
- Compact design
- Robot Type
- F2 and F4 robots
- Tool Weight
- Lightweight
- Operational Time without Refill
- 4–5 hours
- High-Performance Capacity
- TLM Power Compact
- Concurrent Sealing Capability
- 2 cartons per cycle
- Integration Type
- Single-lane processing
- Working Mechanism
- Automated infeed and erecting process
- Integrated Steps
- Feeding,erecting,loading,sealing
- Infeed Mechanism
- Direct from pallet with F4 robot
- Automation Level
- Fully integrated and controlled
- Cycle Rate
- 60 packs per minute
- Load Capacity
- Works 4-5 hours with full pallet
- Compact Design
- TLM Power Compact concept
- Operating Efficiency
- High performance in small space
- Space Efficiency
- Space-saving design
- Seamless Connectivity
- Transmodul,belt,or vacuum conveyor
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact
- Footprint size
- Small
- Single-lane design
- Yes
- Feed/discharge method
- Direct from pallet
- Vertical magazine
- Buffer system
- Lightweight robotic tools
- Yes
- Material usage
- Optimized formats
- Robotic arms
- F4 and F2 robots
- Integration possibilities
- Transmodul,belt,vacuum conveyor
