Batch-type single shaft mixer for industrial mixing

Achieve precise and uniform mixing with high-speed, single-shaft mixers designed for handling challenging materials like dry powders and low viscosity pastes, optimizing your production line efficiency while ensuring reproducibility in every batch.

Mixes, Agglomerates, and Granulates Diverse Materials

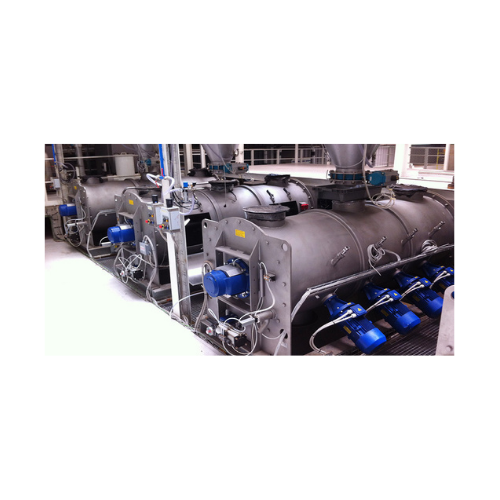

The WBH Batch-Type Single Shaft Mixer from WAMGROUP sets itself apart by providing exceptional mixing precision for a wide range of materials including powders, granules, and low viscosity pastes. This mixer employs a mechanical fluidization principle using a unique ploughshare and inclined blade arrangement that ensures uniform, high-speed mixing. Suitable for industries such as construction, food processing, and chemicals, it efficiently blends materials resulting in products like vitamin tablets, bioplastic granules, and concrete mix.

Capable of handling batches from 10 to 20,000 liters, the WBH mixer integrates seamlessly into production lines with its option for high-speed choppers and liquid injection devices for enhanced mixing. The mixer’s design supports energy efficiency with its advanced motor control, reducing energy consumption noticeably. Its construction materials, ranging from carbon steel to 316L stainless steel, offer durability and compatibility with varying materials, ensuring longevity and resistance to wear and corrosion.

The WBH mixer is also designed with maintenance in mind, featuring easy access for cleaning and part replacement, ideal for sectors needing high hygiene standards. Customizable options like anti-wear coatings and heating/cooling jackets provide further operational adaptability, with engineering support available for bespoke configurations.

Benefits

  • Enhances product uniformity with precise, high-speed mixing processes.
  • Decreases energy consumption with efficient motor control technology.
  • Minimizes maintenance costs through durable construction and easy access for cleaning.
  • Accommodates a variety of materials with customizable mixing tools and chamber configurations.
  • Improves operational flexibility with options for temperature control and liquid integration.

General


Applications
Lime,Granules,Biogas,Cosmetics,Pesticides,Drymix building materials,Minerals,By-products,Cement,Chemicals,Waste water,Detergents,Starch,Varnishes,Biomass,Rubber,Animal feed,Low viscosity pastes,Short fibres,Wood chips,Pasta,Biscuit,Food processing,Rice,Plastics,Soaps,Resins,Paints,Fertilizers,Pharmaceuticals,Dry powders,Flour,Gypsum
End products
Concrete mix,Vitamin tablets,Gypsum plaster,Wood pellets,Limestone powder,Blush powders,Liquid soaps,Construction ceramics,Emulsion paints,Starch-based adhesives,Mdf boards,Plaster,Epoxy resins,Acrylic varnishes,Cattle feed pellets,Bioplastic granules,Baking powder,Mineral ores,Wastewater sludge,Biogas slurry,Herbicides,Basmati rice
Steps before
Grinding,Drying,Emulsification
Steps after
Agglomerating,Granulating,Packaging
Input ingredients
dry powders,granules,short fibres,liquids,low viscosity pastes
Output ingredients
blended mixtures,moistened materials,agglomerated or granulated materials
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Capacity
10 to 20,000 litres per batch
Mixing ratio
1/100,000
Variation coefficient (CV)
3 ~ 5%
Liquid addition
Up to 20%
Material compatibility
Carbon steel,anti-wear steel,304L/316L stainless steel
Surface finishing
Grit silking,mirror polishing,glass bead blasting
Mixing tools
Ploughshare,blade,anti-wear coating available
Seal type
Air/nitrogen-purged,grease sealing

Operating Characteristics


Batch vs. continuous operation
Batch
Mixing time
Shortest possible
Reproducibility of batches
Excellent
Automation level
Manual / PLC
Cleaning method
Easy cleaning
Air or gas-purged shaft seals
Integrated

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Mixing drum shape
Horizontal cylindrical drum
Mixing shaft type
Full material mixing shaft
Mixing tool type
Ploughshare or inclined blade-type shovel tools
Discharge method
Outlet with discharge valve
Ventilation method
Venting spout
Capacity
10 to 20,000 litres per batch
Material construction
Carbon steel,anti-wear steel,304L / 316L stainless steel
Surface finishing
Grit silking,mirror polishing,glass bead blasting

Custom Options


Surface treatment
Anti-wear liner / Ceramic liner / Teflon liner
Mixing chamber material
Carbon steel / Anti-wear steel / 304L / 316L stainless steel
Mixing tool material
Anti-wear coating available
Chopper speed
High-speed choppers available
Heating/Cooling option
Jacketed mixing chamber
