Automatic bag folding solution for bulk packaging

Enhance your production line efficiency and product protection by integrating a high-speed bag folding solution that expertly decuffs, regussets, and securely closes bags at up to 17 cases per minute.

Folds and Closes Bags Securely

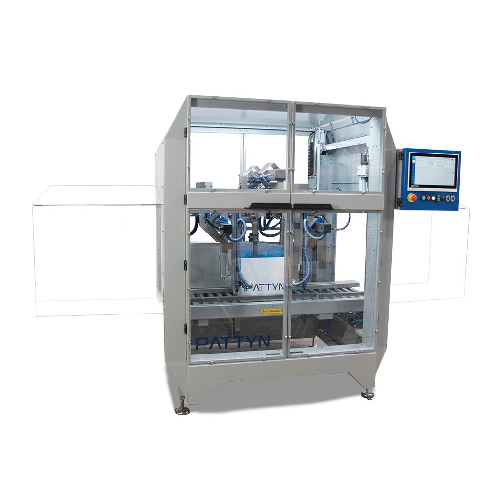

The DF-31 Bag Folder from Pattyn Packaging Lines is an automatic solution engineered for precision in folding and closing bags across various industries. This machine tackles product integrity issues by decuffing, regusseting, and ensuring optimal fold closure, crucial for maintaining hygiene and preventing contamination. Equipped with a high-speed throughput of up to 17 cases per minute, the DF-31 seamlessly integrates into existing production lines, particularly those producing pharmaceuticals, food, and beverage products.

Its robust construction features a heavy-duty roller conveyor and stopper system for efficient case handling and transfer, with minimal moving parts for enhanced longevity and minimal maintenance. The hygienic balcony design supports easy cleaning, vital in stringent regulatory environments. A user-friendly 15″ HMI facilitates seamless operation, while its compatibility with other Pattyn systems like case erectors and palletizers enables full automation. Available options and engineering support allow for customization to meet specific plant requirements, ensuring optimal performance and productivity.

Benefits

  • Maximizes productivity with a high-speed operation of up to 17 cases per minute.
  • Enhances product protection with precise bag folding that minimizes contamination risks.
  • Reduces maintenance and downtime due to minimal moving parts above filled cases.
  • Supports seamless production integration with quick format changes and interconnectivity.
  • Ensures user-friendly operation with an intuitive 15" HMI interface.

General


Applications
Vitamins,Sauces,Snacks,Enzymes,Minerals,Sweeteners,Fine chemicals,Pharmaceutical tablets,Detergents,Pharmaceutical powder,Spices,Batteries,Biofuel,Supplements,Pet food,Nuts,Biopharmaceuticals,Sweets,Baby food,Plant-based milk,Metal powders,Liquid formulations,Nutraceuticals,Cereals,Coating materials,Essential oils
End products
Potato chips sachets,Tomato sauce pouches,Vitamin c tablets,Ground cinnamon jars,Dog kibble bags,Lavender essential oil bottles,Protein shake powders,Ferrous sulfate mineral packs,Stevia sweetener packets,Gluten-free cereal flakes,Omega-3 fish oil capsules,Industrial paint coatings,Digestive enzyme supplements,Ibuprofen powder,Gummy candies,Calcium supplements,Almond milk cartons,Infant formula cans,Electrolyte drink bottles,Roasted almond bags,Laundry detergent pods,Monoclonal antibodies,Biodiesel fuel containers,Titanium metal powder vials,Aspirin tablets,Lithium-ion battery cells
Steps before
Case Erecting,Bag Inserting,Weigh Filling
Steps after
Case Closing,Palletizing
Input ingredients
filled cardboard box,filled plastic crate
Output ingredients
folded and closed bag inside a box
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Speed
Up to 17 cases/minute
Automation
Automatic decuffing,regusseting,and folding
Bag type handling
Automatically decuffs,regussets,and folds bags
Container size
Min L.300 x W.200 x H.100 mm,Max L.650 x W.410 x D.650 mm
Box range
Big box range
Operator interface
15" HMI
Design
Hygienic balcony design
Cleaning method
Cleaning mode for improved accessibility

Operating Characteristics


Automation level
Fully Automatic
Cleaning method
Manual / Hygienic design
Changeover time
Quick format change
Operation speed
Up to 17 cases/minute
Connectivity
Interconnectivity enabled
Cleaning accessibility
Improved cleaning accessibility

Material Compatibility


Cleanability
Hygienic design and cleaning mode
Density/particle size
Various,depending on product
Corrosive resistance (e.g. acids)
Stainless steel and other resistant materials
Abrasion resistance
Durable components for heavy duty use

Product type Characteristics


Container type
Cardboard box / Plastic crate

Physical Characteristics


Machine footprint
Compact
Control panel type
15" HMI
Conveyor type
Heavy duty roller conveyor
Design
Hygienic balcony design
Cleaning accessibility
Improved cleaning mode
Container dimensions range
Min. L.300 x W.200 // H.100 to Max. L.650 x W.410 // D.650

Custom Options


Control Panel Type
15" HMI
Integration Possibilities
Interconnectivity with other Pattyn equipment
Cleaning Mode
Improved cleaning accessibility
