Vibratory outlet hopper for bulk solids discharge
Reduce material handling challenges with highly efficient vibration technology, ensuring bulk solids flow smoothly and prevent common issues like bridging or rat holing. Ideal for operations requiring consistent discharge and feeding of powdery and granular materials.
Facilitates Continuous Material Discharge from Silos

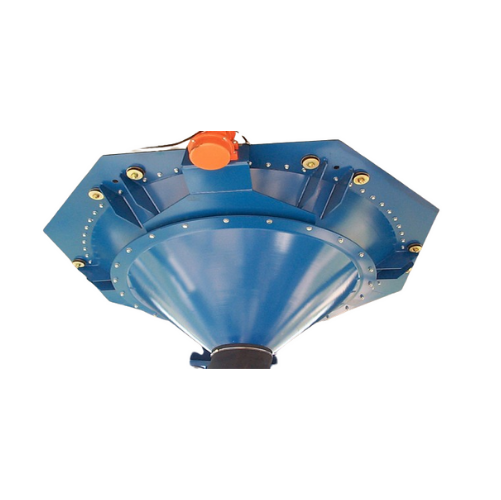

The BA Bin Activators from WAMGROUP are expertly engineered to enhance the discharge of bulk solids from storage silos and hoppers. These devices address challenging flow issues such as bridging and rat holing, ensuring a consistent feed of materials like flour, grains, and fine powders across various industries including food processing, chemical production, and heavy manufacturing. The BA series employs a unique vibratory mechanism powered by OLI motovibrators, which initiates a gentle gyratory motion to facilitate smooth mass flow conditions. With processing capacities ranging from 5 to 320 m³/h, these units are available in carbon steel and stainless steel options to suit diverse environmental conditions and material compatibility needs. Designed for integration into existing systems, the BA Bin Activators feature a seamless SINT engineering polymer seal for a secure, leak-proof connection while requiring minimal energy input. In compliance with industry standards, they offer optional features such as ATEX Zone 22 certification and high-temperature resistant seals, ensuring operational safety and versatility. Easy cleaning and maintenance further enhance their appeal, making them a reliable choice for efficiency-driven production lines.
Benefits
- Ensures reliable material flow, preventing production delays caused by flow blockages.
- Minimizes maintenance requirements with durable, seamless construction and fewer welds.
- Offers flexible integration with existing systems, reducing retrofitting costs.
- Helps maintain product quality by preventing contamination through sealed connections.
- Complies with safety regulations, ensuring safe operation in diverse industrial environments.
- Applications
- Sugar processing,Rubber processing,Biscuit processing,Chemical ad-mixtures,Paint processing,Animal feed milling,Beverage processing,Pharmaceuticals processing,Iron and steel mills,Noodle making,Flour milling,Chocolate processing,Rice milling,Glass processing,Cocoa,Pasta,Detergent processing,Power plants,Petfood,Bakeries,Fish food,Fertilizer processing,Breweries
- End products
- Spaghetti,Lager,Cream-filled biscuits,Potassium fertilizers,Dry dog kibble,Beer,Clear glass panes,Cocoa powder,Pharmaceutical tablets,Vulcanized rubber,Croissants,Concrete additives,Fish meal,Liquid detergent,Granulated sugar,Ramen noodles,Acrylic paint,Structural steel,Milk chocolate bars,Rice grains,All-purpose flour,Chicken feed pellets,Fly ash containers
- Steps before
- Material Storage,Grinding,Mixing,Dry Mixing,Powder Handling
- Steps after
- Conveying,Mixing,Feeding,Packing,Coating
- Input ingredients
- powdery materials,granular materials,bulk solids
- Output ingredients
- smooth material flow,discharged materials,material mass flow
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Flow Rate
- 5 ~ 320 m3/h (3 ~ 190 cfm)
- Size Range
- Ø 400mm (16 in) ~ 3,000mm (10 ft)
- Material
- Carbon steel,304L / 316L stainless steel
- Power Requirement
- Low
- Seal Type
- Seamless SINT engineering polymer
- Motovibrator
- Electric OLI motovibrators
- Application Baffle Plates
- Wide range according to application
- Temperature Range
- High-temperature version available
- Zone Rating
- ATEX Zone 22 version available
- Working mechanism
- Gyratory movement
- Automation level
- Manual / PLC
- Material flow control
- Via vibration
- Installation flexibility
- Aluminium silo compatibility
- Safety level
- ATEX Zone 22 version available
- Cleaning method
- Manual
- Noise level
- Low noise operation
- Maintenance requirements
- Minimal due to seamless design
- Operational temperature range
- High-temperature version available
- Power consumption
- Low power requirement
- Abrasion resistance
- High
- Biological compatibility
- Food-grade
- Cleanability
- Easy
- Corrosive resistance (e.g. acids)
- 316L Stainless Steel
- Density/particle size
- 0.5–2.5 g/cm³
- FDA Materials
- Food-grade version available
- ATEX certification
- ATEX Zone 22 version available
- Material
- Carbon steel,304L / 316L stainless steel
- Cone shape
- Tapered conical shape
- Cone size
- Ø 400mm (16 in) ~ 3,000mm (10 ft)
- Mechanical Design
- Seamless heavy-duty activator cone,70% fewer welds
- Seal type
- SINT engineering polymer seal with integrated upper and lower flange
- Suspension system
- Special suspensions for connection with the silo cone
- Vibration mechanism
- One or two electric OLI motovibrators
- Suspensions suitable for different silo materials
- Aluminium
- Motovibrator options
- Range of OLI vibrators
- Additional features
- Fluidisation/aeration system
- Version options
- ATEX Zone 22 / Negative pressure
