Stick pack packaging for powders and liquids

Streamline your packing process with high-speed, servo-driven stick pack machines that precisely fill and seal sachets for diverse products, enhancing efficiency and product integrity.

Packs and Seals Multi-Product Stick Packs

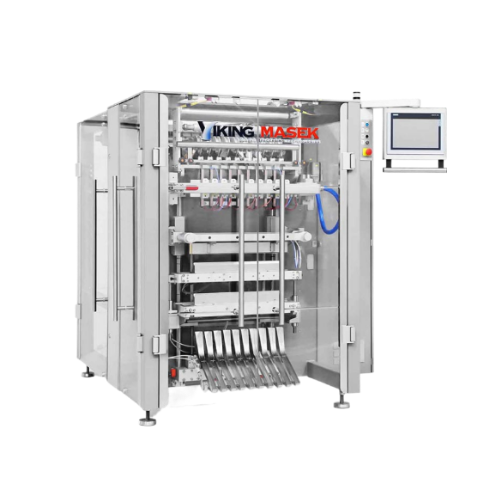

The Stick Pack ST600 from Viking Masek is a servo-driven multi-lane packaging machine designed for high-speed packing of various products, including powders, liquids, and gels. This equipment utilizes advanced servo technology to ensure precise filling and sealing, accommodating up to 14 lanes to form different stick pack shapes with features like tear notches and pour spouts.

Ideal for industries ranging from food and beverage to pharmaceuticals, the ST600 efficiently handles a diverse array of applications such as protein drink mixes and THC-infused powders. Capable of reaching speeds of up to 80 cycles per minute, it significantly boosts throughput on your production line.

Equipped with automated film tracking and easy change-over parts, this machine integrates seamlessly into existing production systems. Its robust GMP construction ensures compliance with industry standards, and the optional robotic pick-and-place unit aids in automated cartoning, enhancing operational efficiency.

Constructed with durable stainless steel, the ST600 offers corrosion resistance and longevity, while options for integrated dust suction and static elimination promote clean operations. Maintenance is simplified through features like automatic film adjustments and individual discharge chutes, making the Stick Pack ST600 a versatile, reliable solution for modern packaging needs.

Benefits

  • Increases production efficiency with high-speed, multi-lane operation.
  • Enhances flexibility by accommodating diverse pouch shapes and product types.
  • Minimizes downtime through quick change-over features and automated adjustments.
  • Ensures product quality with precise servo-driven filling and sealing.
  • Promotes clean and safe operation with integrated dust suction and static elimination.

General


Applications
Supplements,Gels,Snacks,Nutraceuticals,Coffee,Sweets,Spices,Powders,Cannabis,Sweeteners,Drink mixes,Liquids
End products
Fruit juice concentrate sachets,Trail mix,Vitamin c tablets,Hair gel packets,Fish oil capsules,Thc-infused powder,Protein drink mix,Stevia sweetener,Cinnamon spice,Chocolate candies,Instant coffee,Whey protein powder
Steps before
Mixing,Blending,Filling Material Preparation
Steps after
Sealing,Cartoning,Labeling,Quality Inspection,Packing
Input ingredients
powder,liquids,coffee,drink mixes,cannabis,gels
Output ingredients
stick packs,powder sticks,liquid sticks,coffee sticks,drink mix sticks,cannabis sticks,gel sticks
Market info
Viking Masek is known for manufacturing innovative packaging machinery. They specialize in automated packaging solutions, including vertical and horizontal form-fill-seal machines, and are reputed for quality, flexibility, and custom-engineered solutions for various industries.

Technical Specifications


Speed
80 CPM
Bag Size
Min 17 mm x 40 mm
Max 60 mm x 200 mm
Lanes
2 to 14 lanes
Maximum Roll Diameter
450 mm
Maximum Roll Width
600 mm
Weight
800 kg
Air Pressure
6 bar (30 CFM at 90 PSI)
Power Supply
6.5 kVA (480 V,three phase,60 Hz.,20 AMPS)
Automation
Servo-driven
Filling Method
Powder and Liquid Fillers
Cuts
Straight,Zigzag,Round

Operating Characteristics


Automation level
Siemens or Allen Bradley control system
Changeover time
Easy change-over
Batch vs. continuous operation
Multi-lane operation
Cleaning method
GMP construction
Flexibility
2 to 14 lanes
Film handling
Powered film unwind with film tension control
Film tracking
Automatic film tracking
Stickpack length adjustment
Automatic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
17 mm x 40 mm to 60 mm x 200 mm
Product type
Powder / Liquid / Gel

Physical Characteristics


Bag Size
Min 17 mm x 40 mm / Max 60 mm x 200 mm
Maximum Roll Diameter
450 mm
Maximum Roll Width
600 mm
Weight
800 kg
Control panel type
Siemens or Allen Bradley control system
Discharge Method
Individual discharge chutes

Custom Options


Control panel type
Siemens or Allen Bradley control system
Lane customization
2 to 14 lanes
Bag shapes
Various shapes including pour spouts,tear notches
Cut options
Straight cut,Zigzag cut,Round cut
Integration possibilities
Robotic pick-and-place unit and automatic cartoning solutions
Easy change-over options
Available with stainless steel storage cart
Customization in seal patterns and shapes
Various seal patterns and shapes
Open features
Tear notch,microperforation,laser score
