Semi-liquid weigh filler for edible oils & fats
Achieve precise weigh filling of semi-liquids while minimizing product wastage and maximizing throughput. This solution excels in handling a diverse range of edible oils and fats with high-speed efficiency, making it ideal for producers seeking to optimize packaging operations.
Fills Semi-Liquids into Diverse Containers

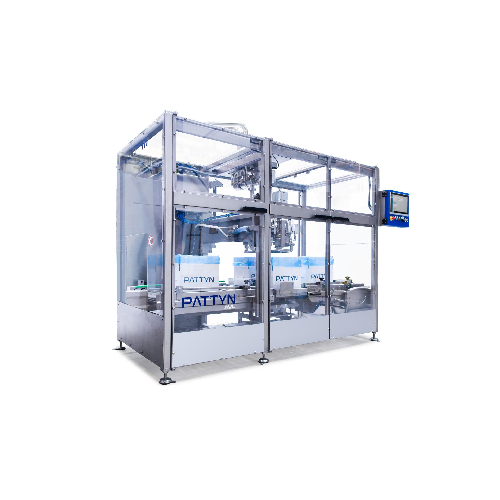

The AVL-42/44 from Pattyn Packaging Lines is a precision-engineered semi-liquid weigh filler, expertly designed to meet the demands of the food, edible oil, and dairy industries. It features dual or quad filling valves for optimal throughput, delivering up to 15 containers per minute. The AVL-42/44 is ideal for accurately filling edible oils, fats, and similar products into lined boxes, tins, pails, and JIBs, with a remarkable maximum average giveaway of just 3 grams per case. Its hygienic design, complete with HACCP-compliant enclosed guarding and swing doors, ensures maximum food safety while facilitating straightforward cleaning and maintenance. Furthermore, its integration into automated production lines is seamless, pairing efficiently with Pattyn’s case erectors, bag inserters, and palletizers to create a comprehensive bulk packaging system.
Benefits
- Maximizes productivity with high-speed operation up to 15 containers per minute.
- Ensures precise filling with a self-regulated valve system, minimizing product giveaway.
- Enhances food safety with a fully enclosed, hygienic design compliant with HACCP standards.
- Simplifies operator use and reduces training time with an intuitive 15-inch HMI interface.
- Seamlessly integrates into automated lines, reducing manual handling and increasing efficiency.
- Applications
- Fondant sugar,Edible oils,Fats,Processed cheese,Butter,Mayonnaise,Cocoa mass
- End products
- Cocoa butter,Palm oil,Olive oil,Sunflower oil,Shortening,Lard,Baking chocolate,Aioli,Cake frosting,Cream cheese,Sugar fondant,Cheddar cheese spread,Salad dressing,Canola oil
- Steps before
- Purification,Emulsification,Grinding,Mixing
- Steps after
- Packing,Bag inserting,Case closing,Palletizing
- Input ingredients
- semi-liquids,edible oils,fats,cocoa mass,butter,processed cheese,fondant sugar,mayonnaise
- Output ingredients
- lined boxes,tins,pails,JIBs
- Market info
- Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.
- Speed
- AVL-42
- Capacity
- AVL-42
- Accuracy
- ±40 g or better
- Maximum average giveaway
- 3 g per case
- Standard deviation
- ±15 g
- Container type
- Boxes,tins,pails,and JIB’s
- Filling method
- Weigh filling with fast/slow system and self-regulated valve closing
- Working Mechanism
- Fast/slow system with self-regulated valve closing
- Integrated Steps
- Automatic after-fall correction
- Batch vs. Continuous Operation
- Continuous
- Cleaning Method
- Hygienic design with maximum cleaning accessibility
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Viscosity
- Varies (semi-liquid)
- Container type
- Lined boxes,tins,pails,JIB’s
- Filling purpose
- Edible oils,fats,cocoa mass,butter,processed cheese,fondant sugar,mayonnaise
- Control panel type
- 15” HMI
- Container type
- Cardboard box / Plastic crate / Metal tin / Pail
- Discharge method
- Automatic after-fall correction
- Control Panel Type
- 15” HMI
- Integration Possibilities
- Fully Automated Packaging Line
- Valve Configuration
- Two or Four Filling Valves
- Cleaning Accessibility
- Designed for Maximum Cleaning Accessibility
- Container Compatibility
- Boxes,Tins,Pails,JIBs
