Sanitary bulk solids receiver for food and pharma

Ensure precise control over bulk solid transfer with a system designed to meet stringent sanitary requirements, ideal for handling sensitive food and pharmaceutical ingredients.

Conveys and Refills Bulk Solids in Sanitary Settings

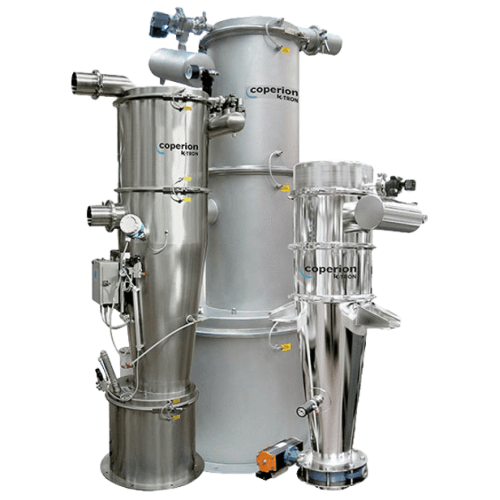

The P-Series Receivers from Coperion K-Tron are engineered to convey and refill bulk solids in highly regulated sanitary environments. Constructed from stainless steel (DIN 1.4404, AISI 316L), these receivers meet cGMP standards and include only FDA-approved materials, making them ideal for applications in food, pharmaceuticals, and chemicals. With models handling up to 4,000 kg/hr, the P-Series supports both gain-in-weight and loss-in-weight feeder systems. Its rugged, modular design integrates seamlessly into central vacuum conveying systems, with automatic reverse jet cleaning ensuring minimal downtime. Available in bead blast, satin, or mirror polish finishes, these receivers offer steep cone angles for efficient discharge, complying with NEC and ATEX standards to meet diverse operational needs across various industries.

Benefits

  • Enhances processing efficiency with seamless integration into existing systems.
  • Minimizes contamination risk with sanitary stainless steel construction.
  • Reduces maintenance time through automatic reverse jet cleaning.
  • Increases operational safety with NEC and ATEX compliance.
  • Supports various processing needs with adaptable material handling capabilities.

General


Applications
Chemicals,Food,Proteins,Pet treats,Battery materials,Ingredients,Fine chemicals,Nutrition,Pet food,Nutraceuticals,Snack foods,Confectionery,Bulk solids,Tablets,Dairy,Pharmaceuticals
End products
Dog biscuits,Pet food kibbles,Vitamin tablets,Lithium-ion battery electrodes,Confectionery coatings,Infant formula powder,Chocolate chips,Chemical catalysts,Maltodextrin,Polyethylene resins,Whey protein isolate,Lactose-free milk powders,Protein powders,Electrolyte mixes,Cheese powder,Dietary supplements,Fish oil capsules,Paracetamol tablets,Energy bars
Steps before
Feeding,Material Handling,Bulk Solids Preparation
Steps after
Discharge,Batch Dispensing,Gain-in-Weight/Loss-in-Weight Feeder Refill
Input ingredients
bulk solids,chemicals,food ingredients,pet food components,pharmaceutical ingredients
Output ingredients
conveyed bulk materials,refilled feed systems,central vacuum conveyed products
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Receiving Volume (max.)
9.5 dm³ [0.34 ft³],27.6 dm³ [0.97 ft³],96.2 dm³ [3.4 ft³]
Conveying Rate (max.)
600 kg/hr [1,320 lb/hr],1,800 kg/hr [4,000 lb/hr],4,000 kg/hr [8,800 lb/hr]
Discharge Valve
Power flap,Ø 150 mm [6 in] / Ø 300 mm [12 in]
Butterfly valve,Ø 100,150,200 mm [4,6,12 in]
Material
Stainless steel (DIN 1.4404,AISI 316L)
Compliance
cGMP,FDA materials,NEC,ATEX
Finish
Bead blast,satin,mirror polish
Design
Sanitary design,steep cone angles
Cleaning
Automatic reverse jet cleaning

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


GMP Compliance
cGMP standards
FDA compliance
FDA approved materials
FDA materials
Includes only FDA approved materials
ATEX certification
NEC and ATEX compliant models available

Physical Characteristics


Construction Material
Stainless steel (DIN 1.4404,AISI 316L)
Finish
Bead blast,satin,or mirror polish
Discharge Valve Type
Powered flap and butterfly valve
Receiving Volume (P10)
9.5 dm³ [0.34 ft³]
Receiving Volume (P30)
27.6 dm³ [0.97 ft³]
Receiving Volume (P100)
96.2 dm³ [3.4 ft³]
Discharge Diameter (P10)
Ø 150 mm [6 in]
Discharge Diameter (P100)
Ø 300 mm [12 in]
Design
Rugged modular design,sanitary design for easy cleaning
Cone Shape
Steep cone angles for excellent discharge

Custom Options


Discharge valve type
Powered flap or Butterfly valve
Finish type
Bead blast,Satin,or Mirror polish
Control panel type
MPC,PLC,LSR Controller
