Rotary crushing valve for lump breaking

When handling bulk solids, effective pre-breaking and sizing are crucial to ensure seamless processing, reduce clumping, and maintain product consistency. The rotary crushing valve provides an efficient solution for breaking down challenging materials into manageable sizes, facilitating smoother downstream processing operations.

Crushes and Sizes Bulk Solid Materials

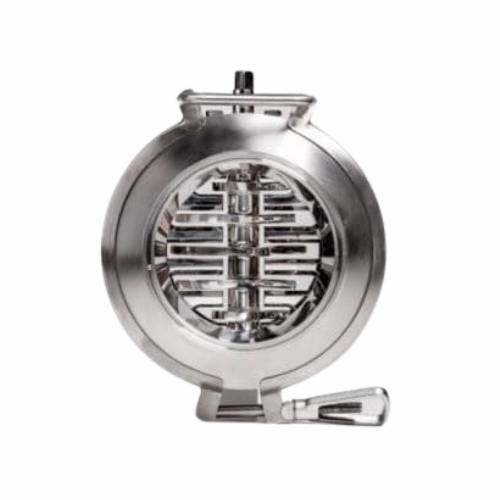

The Rotocrusher by Hanningfield is a rotary crushing valve engineered for efficient processing of bulk solids, designed to meet stringent cGMP standards. Its unique crushing mechanism using one or two rollers makes it ideal for breaking down materials into consistent particle sizes, supporting industries from pharmaceuticals to nutraceuticals. With a processing capacity ranging from 750 to 3,000 kg/hr, the Rotocrusher ensures high throughput and effective pre-breaking functions. The equipment is constructed from durable stainless steel EN 1.4404 (AISI 316L) and is optimized for automated production lines, featuring an electric motor drive. Its integration capabilities include seamless connection to upstream and downstream equipment like cone mills, enhancing overall production efficiency. The valve’s design supports Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) systems, ensuring minimal downtime and maintaining hygienic standards. Certified with FDA compliance and accompanied by EN10204 Material Certificate 3.1, it caters to pharmaceutical, food and beverage, and chemical applications with reliability and precision.

Benefits

  • Enhances production efficiency by processing up to 3,000 kg/hr with consistent output.
  • Minimizes contamination risks with CIP and SIP compatibility, ensuring hygienic operation.
  • Reduces maintenance efforts and downtime with robust stainless steel construction.
  • Complies with FDA and cGMP standards, ensuring regulatory adherence.
  • Integrates seamlessly with existing production lines, enhancing operational flow.

General


Applications
Chemical powders,Nutraceuticals,Oral solid dosage (osd),Bulk solids,Food and beverage,Cannabis,Pharmaceuticals
End products
Protein powders,Cocoa powder,Pharmaceutical tablets,Effervescent granules,Dry spice blends,Sugar substitutes,Vitamin c tablets,Nutritional powders,Cannabis oil capsules,Herbal extracts,Bulk flour,Aspirin tablets,Instant coffee granules,Pain relief tablets,Dietary supplements
Steps before
Milling,Sizing,Grinding
Steps after
Sterilization,Packing,Containment,Tablet Pressing
Input ingredients
bulk solid products,lump materials,powders,coarse particles
Output ingredients
processed powders,fine particles,pre-crushed materials,uniform particle size
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Flow Rate
750–3,000 kg/hr
Construction Standard
cGMP
Cleaning Method
CIP / SIP
Drive Type
Electric motor
Surface Finish (Internal)
Ra 0.5 μm
Surface Finish (External)
Ra 1.2 μm

Operating Characteristics


Working mechanism
Single-roll lump breaker
Flow rate
750 kgs/hr to 3,000 kgs/hr
CIP/SIP
Suitable for Cleaning-In-Place and Sterilization-In-Place systems
Batch vs. continuous operation
Batch / Inline Continuous

Material Compatibility


Biological compatibility
FDA Certification
Cleanability
CIP/SIP systems
Corrosive resistance (e.g. acids)
Stainless steel EN 1.4404 (AISI 316L)


GMP Compliance
cGMP standards
FDA Certification
CFR § 177.2600
Material Certificate
3.1 as per EN10204

Physical Characteristics


Machine footprint
Compact design
Material
Stainless steel EN 1.4404 (AISI 316L)
Size range
DN 100,DN 150,DN 200,DN 250,DN 300
Finish
Ra 0.5 μm internal,Ra 1.2 μm external
Discharge method
Single-roll lump breaker

Custom Options


Compact design
Standard and compact
Material options
Stainless steel EN 1.4404 (AISI 316L)
Integration with existing systems
Pre-breaker with cone mill
