Pressure and temperature monitoring system for ball mills

Ensure optimal grinding conditions and enhance product quality with precise pressure and temperature monitoring during ball milling processes.

Monitors and Records Ball Mill Conditions

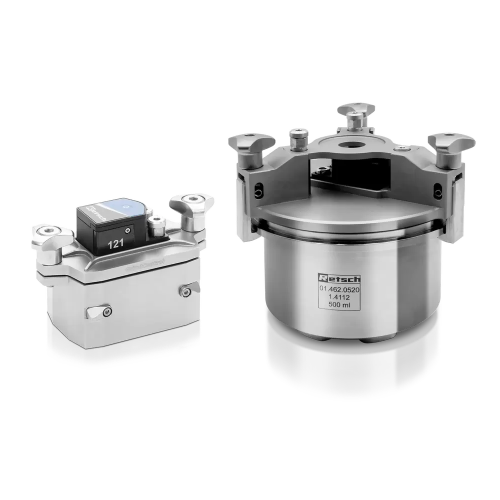

The GrindControl Measuring System from Retsch offers sophisticated temperature and pressure monitoring for ball mill operations, crucial for demanding research and precision manufacturing processes. Its non-intrusive design allows seamless integration with Retsch’s PM and MM series mills, enabling real-time data recording without altering mill setup. Ideal for applications in fields such as pharmaceuticals and material science, GrindControl ensures safe and efficient grinding by continuously measuring conditions, preventing material compromise due to temperature fluctuations or pressure buildups. It can track conditions from as low as -25 °C to 90 °C and pressures up to 5 bar, with precise data transmitted wirelessly to its intuitive software. The modular lid design fits multiple jar types and sizes, enhancing its versatility across different production scales. Designed to meet industry standards, GrindControl is equipped for both dry and wet grinding operations, including cryogenic processes, offering adaptability with various jar and tool materials like hardened stainless steel and zirconium oxide. With a battery life supporting up to 80 hours of operation, it minimizes downtime, while cleaning accessories ensure easy maintenance.

Benefits

  • Optimizes material synthesis by providing precise temperature and pressure control.
  • Enhances sample integrity through real-time monitoring of critical grinding parameters.
  • Ensures operator safety by keeping grinding processes within designated limits.
  • Identifies operational inefficiencies early, enabling timely corrective actions.
  • Facilitates streamlined data management with easy exporting for quality documentation.

General


Applications
Food,Chemistry,Ceramics,Metallurgy,Construction materials,Recycling,Medicine,Geology,Material synthesis,Biology,Glass,Environment,Plastics,Agriculture,Electronics,Engineering,Pharmaceuticals
End products
Plastic composites,Solar cell materials,Drug formulations,Pharmaceutical tablets,Metal alloys,Geological core samples,Ceramic tiles,Medical implants,Agricultural fertilizers,Recycled plastic pellets,Concrete additives,Chemical catalysts,Food preservatives,Electronic components
Steps before
Sample preparation,Pre-assembly of grinding jars,Loading of materials
Steps after
Monitoring and evaluation,Data export,Process management,Quality control
Input ingredients
temperature-sensitive materials,APIs,vitamins,volatile components,alcohols,hard materials,medium-hard materials,soft materials,brittle materials,elastic materials,fibrous materials
Output ingredients
mechanical alloying products,mechanochemical products,powdered materials,tablet preparations
Market info
RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.

Technical Specifications


Temperature measurement range
-25 °C to 90 °C
Temperature resolution
0.2 °C
Pressure measurement range
0 - 5 bar
Pressure resolution
50 mbar
Wireless data transmission range
up to 5 meters
Battery life
up to 80 hours
Compatible mills
PM 100,PM 300,PM 400,MM 500 nano/control,Emax
Batch size/feed quantity
max. 45 ml (MM)
Max. 220 ml (PM)
Interface
PC Software "GrindControl-Center" (Bluetooth connection)
Transmission frequency
1 /s
Electrical supply data
Battery (up to 90 h operation time)
Dry grinding capability
Yes
Wet grinding capability
Yes
Cryogenic grinding capability
Yes (min. -25 °C)
Grinding jar types
Screw-Lock (MM),EasyFit (PM)

Operating Characteristics


Temperature measurement range
-25°C to 90°C
Pressure measurement range
0 - 5 bar
Automation level
Manual / Software controlled
Wireless data transmission range
Up to 5 meters
Battery life
Up to 80 hours
Batch vs. continuous operation
Batch operation
Cleaning method
Manual with included accessories
Software support
Real-time monitoring and data export

Material Compatibility


Hardness compatibility
Hard,Medium-hard,Soft,Brittle,Elastic,Fibrous
Cleanability
Supports various cleaning methods,including manual cleanability,CIP
Corrosive resistance
Hardened stainless steel,Zirconium oxide
Temperature sensitivity
-25°C to 90°C
Density/particle size
Hardened stainless steel,Zirconium oxide for particle size variations

Product type Characteristics


Compatibility
Planetary Ball Mills PM 100,PM 300,PM 400,Mixer Mills MM 500 nano/control,High-Energy Ball Mill Emax


CETechnical requirements
PC with min. Windows 10 and USB 2.0

Custom Options


Control panel type
PC Software "GrindControl-Center"
Integration possibilities
Bluetooth connection,USB dongle
Modular design
Interchangeable jar lids for different materials and sizes
Software customization
Data export options (.pdf,.csv),measurement settings
Wireless transmission range
Up to 5 meters
Software features
Real-time monitoring,measurement management
Battery life
Up to 80 hours
