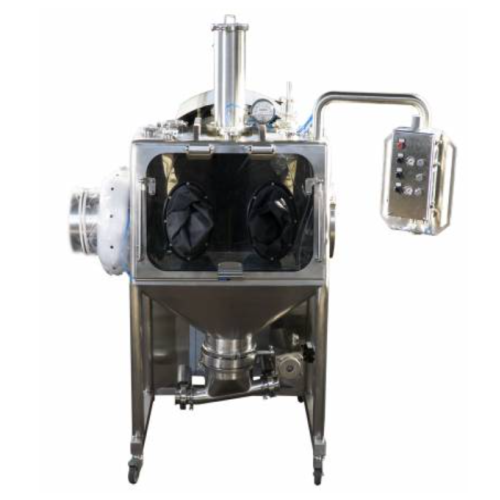

Powder handling drum dock station

Ensure safe and efficient powder transfers with high containment levels, minimizing operator exposure and supporting diverse material handling processes in your production line.

Facilitates Safe and Contained Powder Transfer

The Drum Dock Station from De Dietrich Process Systems is designed to ensure the safe and contained transfer of powders in industrial applications. Equipped with DIT® Drum Iris Technology, it minimizes operator exposure and contamination risks. This system is ideal for transferring highly toxic or sensitive materials, commonly used in pharmaceuticals, fine chemicals, and bio-pharmaceuticals.

Utilizing a pneumatic lifter, it inverts drums for easy material discharge with minimal operator intervention. Configurations include a single or double chamber, allowing for containment levels up to OEB 6. The station integrates seamlessly with reactors and powder transfer systems, supporting operations in batch, manual, pilot, and high-containment environments.

Constructed in materials like AISI 304, AISI 316, and Hastelloy C-22, it exhibits excellent chemical compatibility and corrosion resistance. For added convenience, it includes a CIP system facilitated by a spray-ball and spray-gun, ensuring thorough cleaning. Certified for ATEX environments, this station aids compliance with stringent safety and environmental standards, making it an adaptable solution for diverse processing needs.

Benefits

  • Ensures maximum operator safety with high containment levels up to OEB 6.
  • Enhances production efficiency by integrating smooth powder transfer systems.
  • Minimizes contamination risks with reliable DIT® Drum Iris Technology.
  • Supports compliance with ATEX standards for hazardous environments.
  • Simplifies cleaning and maintenance with an integrated CIP system.

General


Applications
Specialty chemicals,Fine chemicals,Agricultural chemicals,Nutraceuticals,Powdered substances,Enzymes,Bio-pharmaceuticals,Plant-based chemistry,Pigments,Pharmaceuticals
End products
Specialty pigments,Active pharmaceutical ingredients,Nutrient supplements,Agrochemical formulations,Powdered plant extracts,Enzyme formulations,Bio-pharmaceutical compounds,Herbal extracts,Fine chemical intermediates,Dietary supplements
Steps before
Grinding,Mixing,Powder Transfer,Drying,Powder Handling
Steps after
Packing,Filling,Sterilization,Coating,Containment
Input ingredients
powder,toxic materials,drums
Output ingredients
safely transferred powder,contained materials
Market info
De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.

Technical Specifications


Containment level
Up to OEB 5 / Up to OEB 6
Automation
Manual / Pneumatic lifter
Material
AISI 304 / AISI 316 / HASTELLOY C-22
Filtration system
Double Push-Push H14 filtration unit
Cleaning method
Spray-ball and spray-gun for CIP process
Connection options
Back or bottom connection
Transfer system
DIT® Drum Iris Technology
Internal transfer port
Inflatable flush mounted gasket
Customizable options
Number of gloves,overall dimensions

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Corrosive resistance (e.g.,acids)
AISI 304,AISI 316,HASTELLOY C-22
Anti-static Handling
ATEX / grounded components

Physical Characteristics


Machine footprint
Customizable dimensions
Body material
AISI 304,AISI 316,HASTELLOY C-22
Containment level
Up to OEB 5 in single chamber,OEB 6 in double chamber
Connection method
Back or bottom connection
Lift mechanism
Pneumatic lifter
Housing
Single or Double Chamber
Glove ports
Customizable number of gloves

Custom Options


Material
AISI 304,AISI 316,HASTELLOY C-22
Containment Level
Up to OEB 5 / OEB 6
Design
Single Chamber / Double Chamber
Connection Type
Back or bottom connection
Glove Configuration
Customizable number of gloves
Internal Transfer Port Gasket
Inflatable flush mounted gasket
Dimensions
Customizable overall dimensions
